7
User Guide
Y-1 Volume adjustment Knob Y-4 Speaker Power Switch
Y-2 Bass adjustment Knob Y-5 Speaker DC IN
Y-3 Connect to computer Audio-out Y-6 Primary and secondary speaker
cables

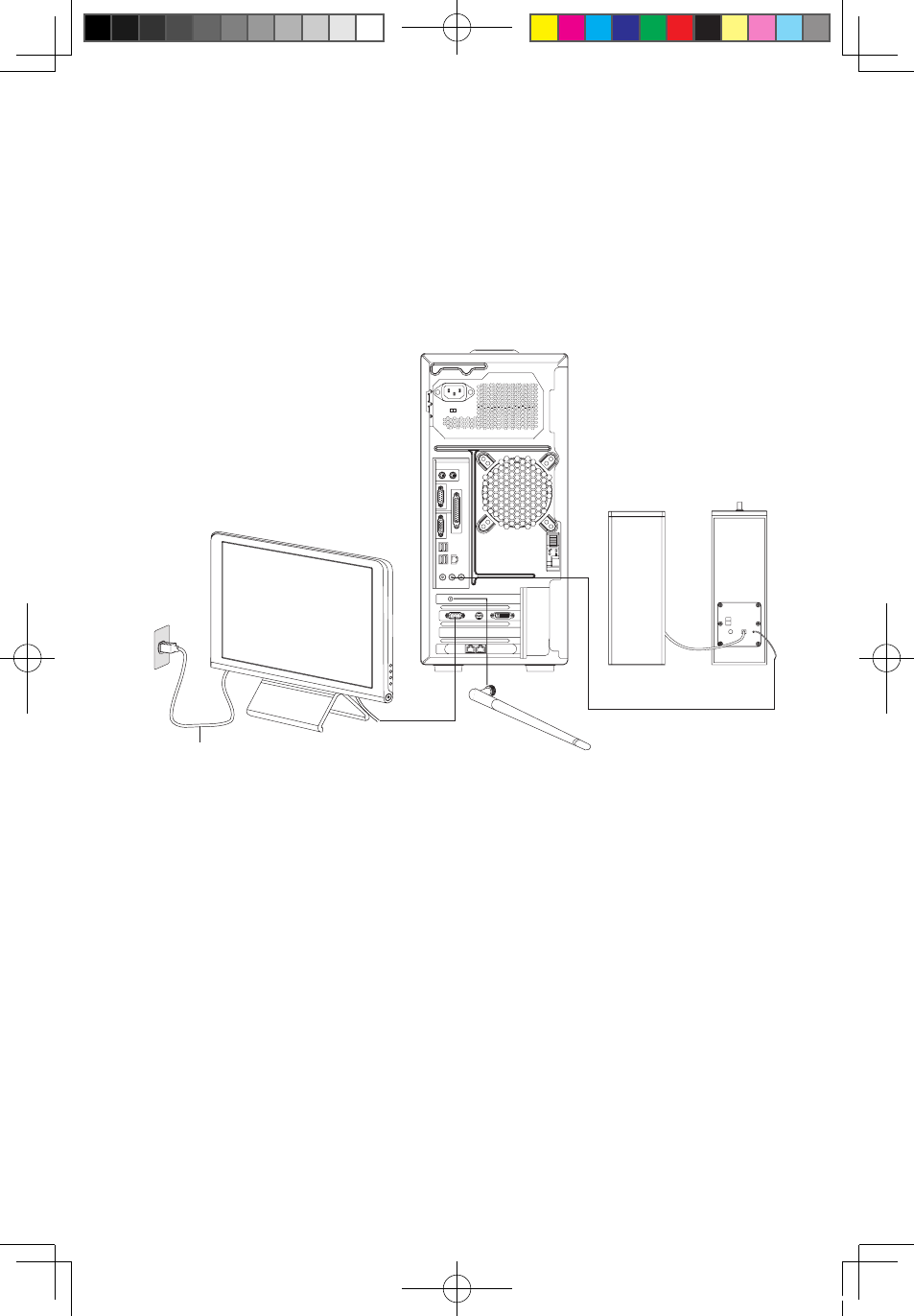

1.4 Notes on computer cabling and installation
C-1
C-3
C-2
C-4
C-1 Monitor power cord C-2 Monitor data cable
C-3 Speaker audio signal cable C-4 WiFi antenna
1. Connect the monitor signal cable to the on-board graphics card connector if the
model you purchased is not equipped with an external graphics card.
2. If there is an external graphics card, connect the monitor signal cable to the
VGA or DVI connector on the external graphics card.
3. If both your computer and monitor have a DVI connector, you can connect the
computer to the monitor through your own DVI data cable.
4. If there is only a DVI connector on the external graphics card and the monitor
only has a VGA connector, the two can be connected with a DVI-VGA converter.
5. Screw the WiFi antenna on the WiFi card connector if the model you purchased
is equipped with the WiFi card.
