Hardware Maintenance Manual
44

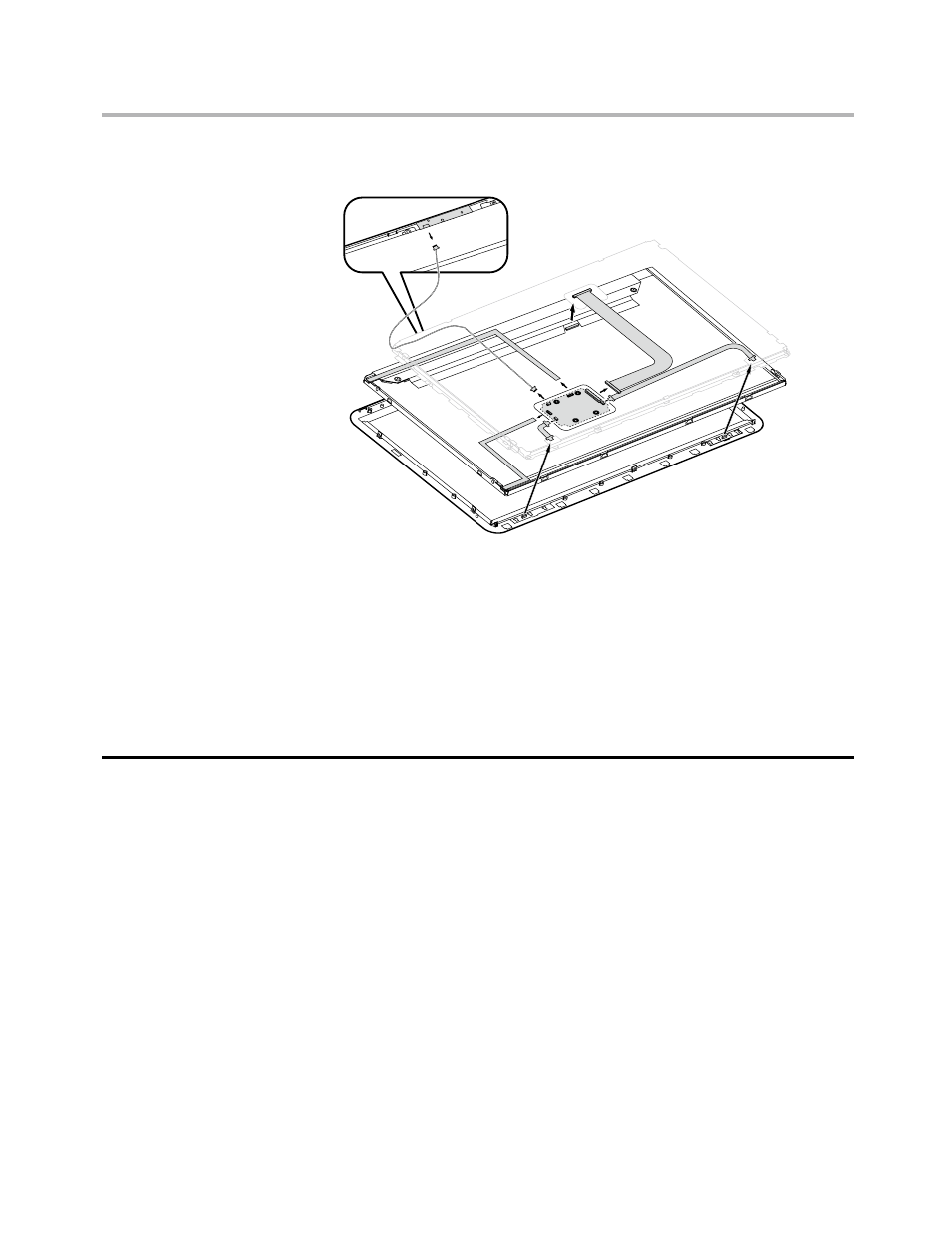

8. Lift up the LED panel.
9. Align and then put the new LED panel back.
10. Connect the LED and camera cables back to the invert board.
11. Align then screw the LED panel bracket back.
12. Connect the two LED cables to the panel front bezel.
13. Align and slide the rear cover back.
14. Screw the hinge back to the LED panel.
15. Slide the hinge cover in then push it back.
Replacing the invert board
To replace the invert board
1. Remove the hinge cover. Refer to” Removing the hinge cover”
2. Remove the hinge from the LED panel. Refer to” Removing the hinge
from the LED panel”.
3. Remove the rear cover. Refer to “Removing the rear cover”.
4. Remove the LED panel. Refer to “Replacing the LED panel”
5. Place the LED panel bracket upside down on a flat surface.
6. Remove the 4 screws that secure the invert board to the LED panel
bracket.
