Lenovo M50-70 Notebook User Manual
Page 68
64
M50-70/M50-80 Hardware Maintenance Manual

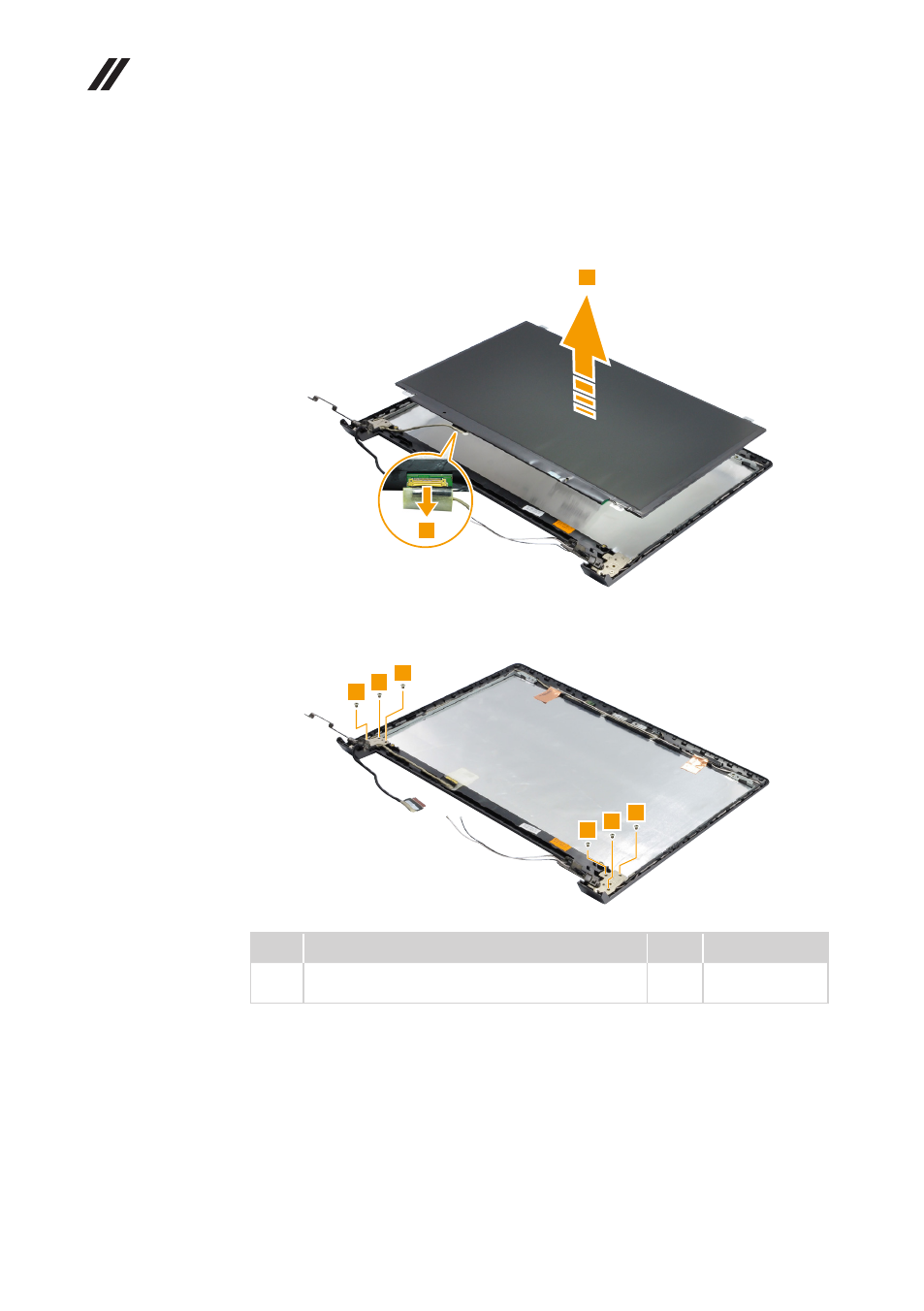

Figure 15. Removal steps of LCD unit (continued)
Lift the LCD panel slightly 5. Peel off the adhesive tape and detach the
connector in the direction shown by arrow 6. Then remove the LCD panel.
Remove the screws 7.
Step Screw (quantity)
Color Torque
7
M2.5 × 3.0 mm, flat-head, nylok-coated (6)
Hinge to LCD Panel
Black 2.3±0.2 kgf*cm
