62
M50-70/M50-80 Hardware Maintenance Manual
1150 LCD unit
For access, remove these FRUs in order:
• “1010 Optical drive” on page 33
• “1020 Keyboard” on page 35
• “1030 Base cover” on page 37
• “1040 Battery pack” on page 40
• “1050 Hard disk drive” on page 42
• “1060 PCI Express Mini Card for wireless LAN” on page 44
• “1080 ODD board” on page 48
• “1090 Docking board” on page 49
• “1100 Speakers” on page 51
• “1110 Thermal module” on page 52
• “1120 USB board and finger print board” on page 53
• “1130 System board and touchpad module” on page 56
• “1140 Upper case and power board” on page 59

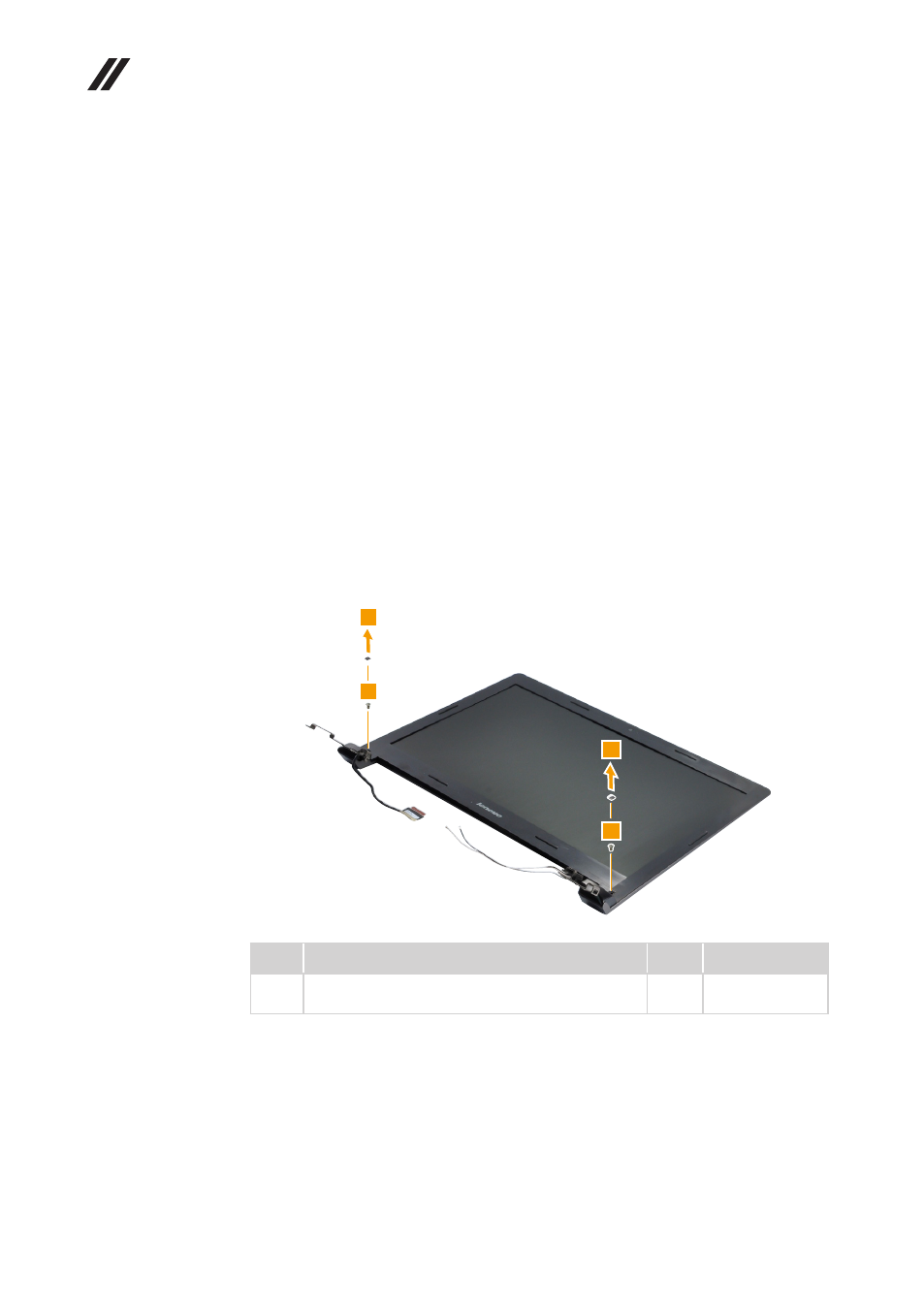

Figure 15. Removal steps of LCD unit
Remove LCD bezel screw pads 1 and the screws 2.
Step Screw (quantity) Color Torque
2 M2.5 × 4.0 mm, flat-head, nylok-coated (2)
Bezel to LCD Panel
Black 2.3±0.2 kgf*cm
