IdeaPad Yoga 11 Hardware Maintenance Manual
1110 Base cover
For access, remove these FRUs in order:
• “1020 Keyboard” on page 33
• “1030 Keyboard bezel” on page 35
• “1040 Screen rotation lock button board” on page 37
• “1050 Battery pack” on page 39
• “1060 Volume button board” on page 41
• “1070 PCI Express Mini Card for wireless LAN” on page 43
• “1080 Speakers” on page 45
• “1090 System board” on page 47
• “1100 LCD unit” on page 50

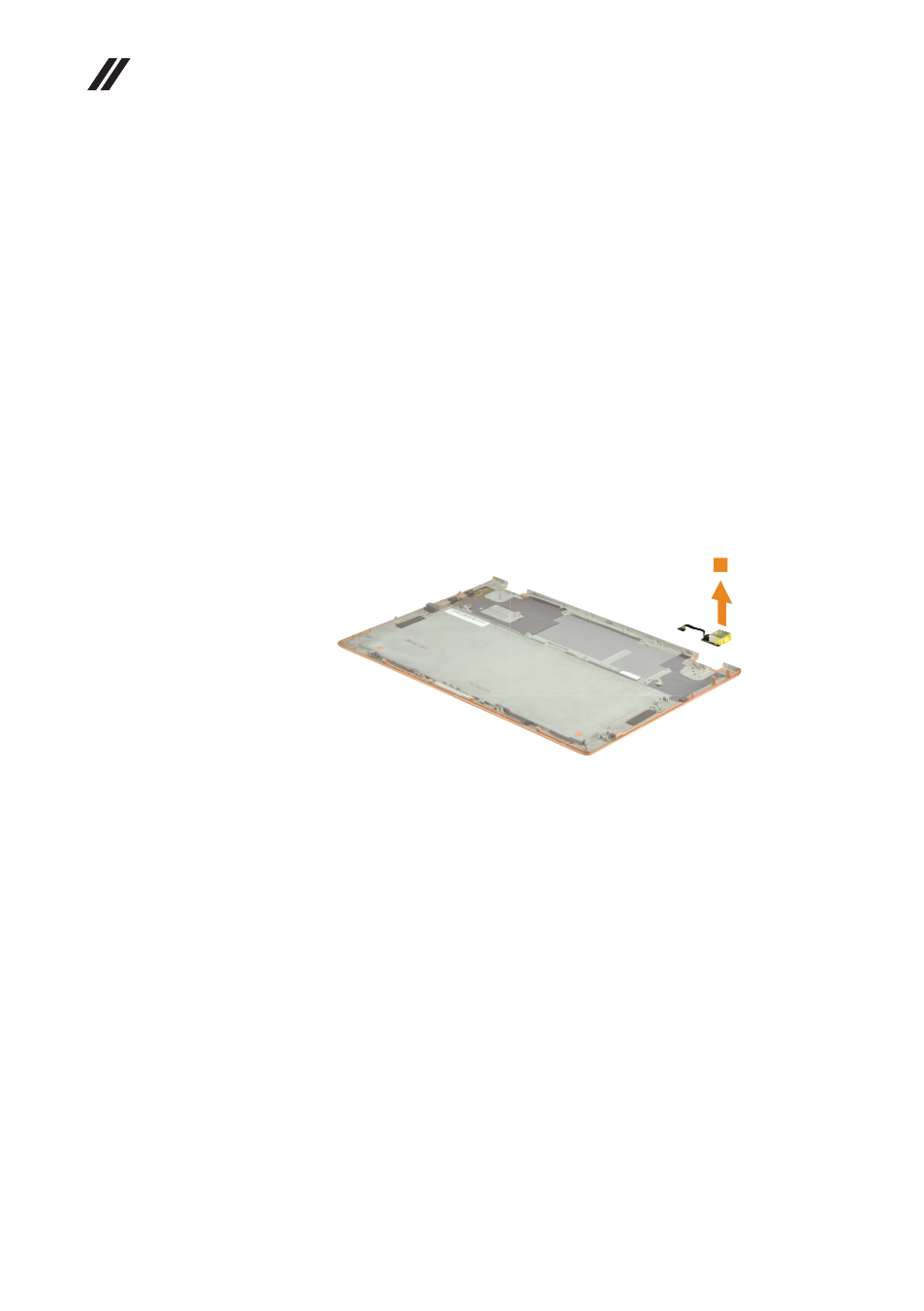

Figure 11. Removal step of base cover
Remove the power jack in the direction shown by arrow
1
.
1
