IdeaPad Miix 2 8 Hardware Maintenance Manual

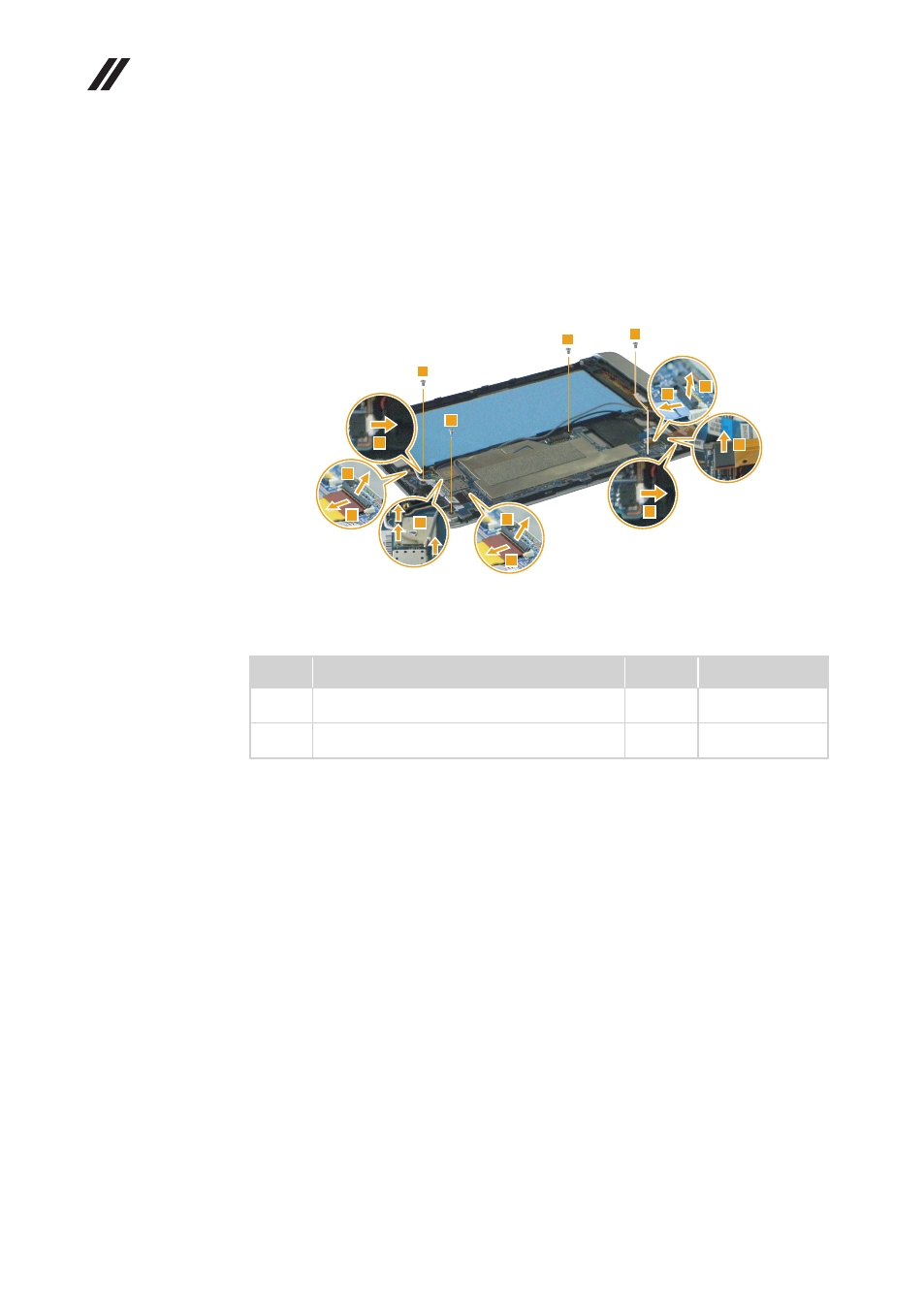

Figure 5. Removal steps of system board
Detach the front camera board, rear camera and LCD cable connectors shown
by arrow 1 and 2 . Unplug the vibrator board and speaker connectors shown
by arrow
3
. Disconnect antenna GPS (gray), Main antenna wifi (black), Aux
antenna wifi (white) shown by arrow 4 . Disconnect touch screen connector
shown by arrow
5
. Then remove the screw
7
and three screws
6
.
4
1
2
1
2
5
1
2
7
6
6
3
3
6 6
When installing: Make sure that all the connectors are attached firmly.
Step Screw (quantity) Color Torque
5
M1.6 × 1.6, MB to Bezel (1) Black 1.0 ~ 1.5kgf*cm
6
M1.6 × 3.0, MB to Bezel (3) Black 1.0 ~ 1.5kgf*cm
