36
G50-30/G50-45/G50-70/G50-70m/Z50-70/Z50-75 Hardware Maintenance Manual
1030 Optical drive
For access, remove this FRU:
• “1010 Battery pack” on page 33
• “1020 Base cover” on page 34

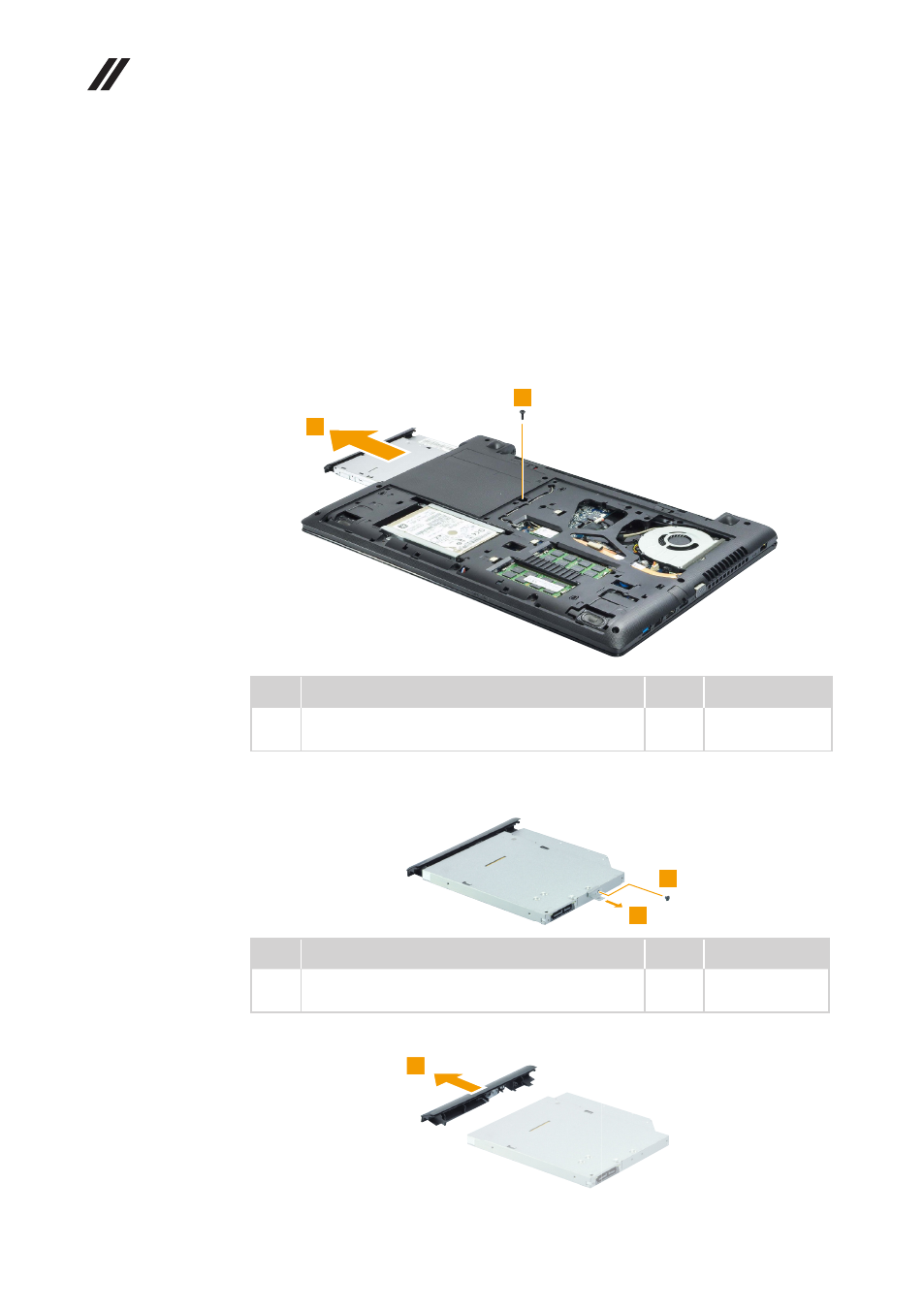

Figure 3. Removal steps of optical drive
Remove the screw 1. Pull the optical drive out in the direction shown by
arrow 2.
Step Screw (quantity) Color Torque
1
M2 × 3.5 mm, flat-head, nylok-coated (1)
ODD BRK + D Black 1.5 ~ 2.0 kgf*cm
Remove the screw 3, then remove the optical drive bracket in the direction
shown by arrow 4.
3
4
Step Screw (quantity) Color Torque
3 M2 × 3.5 mm, flat-head, nylok-coated (1)
ODD BKT + ODD Black 1.5 ~ 2.0 kgf*cm
Carefully remove the optical drive bezel in the direction shown by arrow 5.
5
