Hardware Maintenance Manual

44

Replacing the bluetooth module

To replace the bluetooth module:

1. Remove the computer stand. Refer to “Removing the computer stand”.
2. Remove the computer cover. Refer to “Removing the computer cover”.

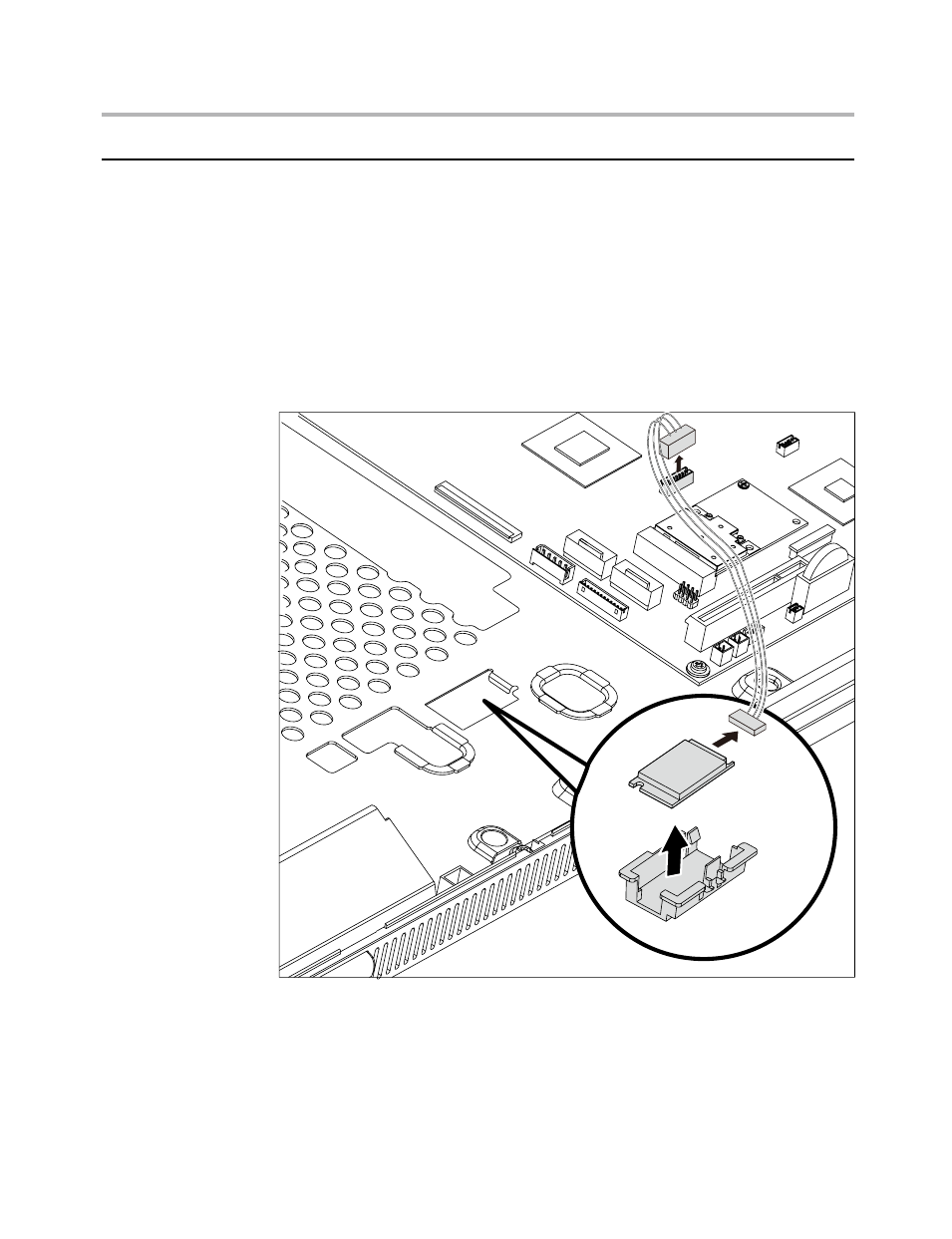

3. Push the pins to release the bluetooth module and container from the

chassis.

4. Remove the bluetooth module from the container and lift it up.
5. Disconnect the antenna cable from the bluetooth module.

6. Connect the antenna cable to the new bluetooth module.
7. Align then install the bluetooth module.
8. Install the computer cover and stand.
