Lenovo G470/G475/G570/G575 Hardware Maintenance Manual

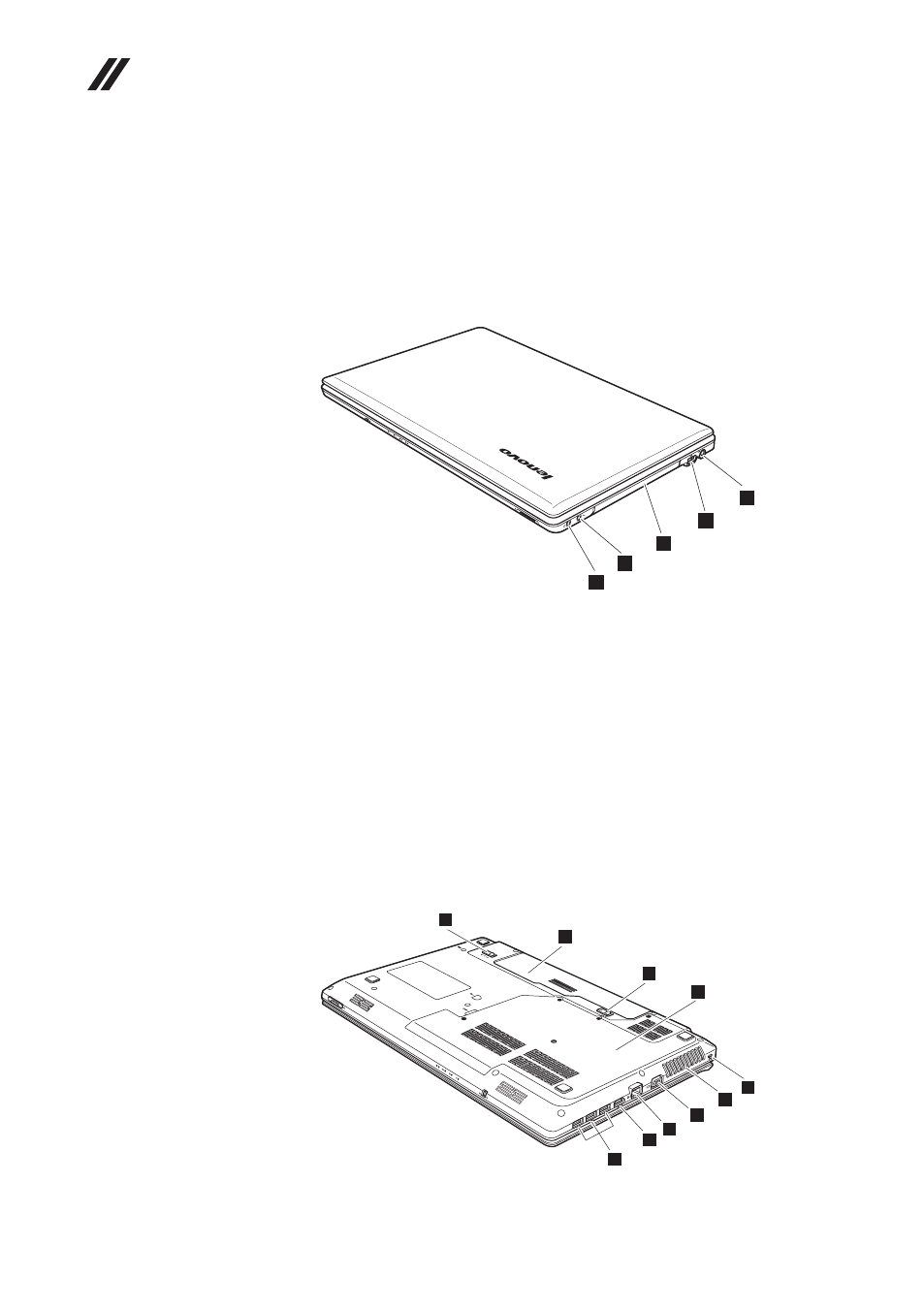

Right-side view
1 Headphone jack
2 Microphone jack
3 Optical drive
4 USB port
5 AC power adapter jack
5
1
2
4
3
Bottom and Left-side view
1 USB ports
2 HDMI port (Select models only) (G470/G570)
3
RJ-45 port
4 VGA port
5 Fan louvers
6
Kensington slot
7 Hard disk drive (HDD)/Memory/CPU (Central processing unit)/Mini PCI
Express Card slot compartment
8 Battery latch - spring loaded
9 Battery pack
0
Battery latch - manual
2
3
5
6
4
7
9
8
1
10
