65
Lenovo G470/G475/G570/G575
1170 LCD panel and hinges
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1020 Dummy card” on page 35
• “1030 Optical drive” on page 36
• “1040 Hard disk drive (HDD)/Memory/CPU (Central processing unit)/Mini
PCI ExpressCard slot compartment cover ” on page 37
• “1050 Hard disk drive ” on page 38
• “1060 DIMM” on page 40
• “1070 Fan assembly and Heat Sink assembly” on page 41
• “1090 PCI Express Mini Card for wireless LAN” on page 45
• “1100 Keyboard” on page 47
• “1110 Keyboard bezel” on page 49
• “1130 System board” on page 53
• “1140 LCD unit” on page 56
• “1160 LCD front bezel” on page 64

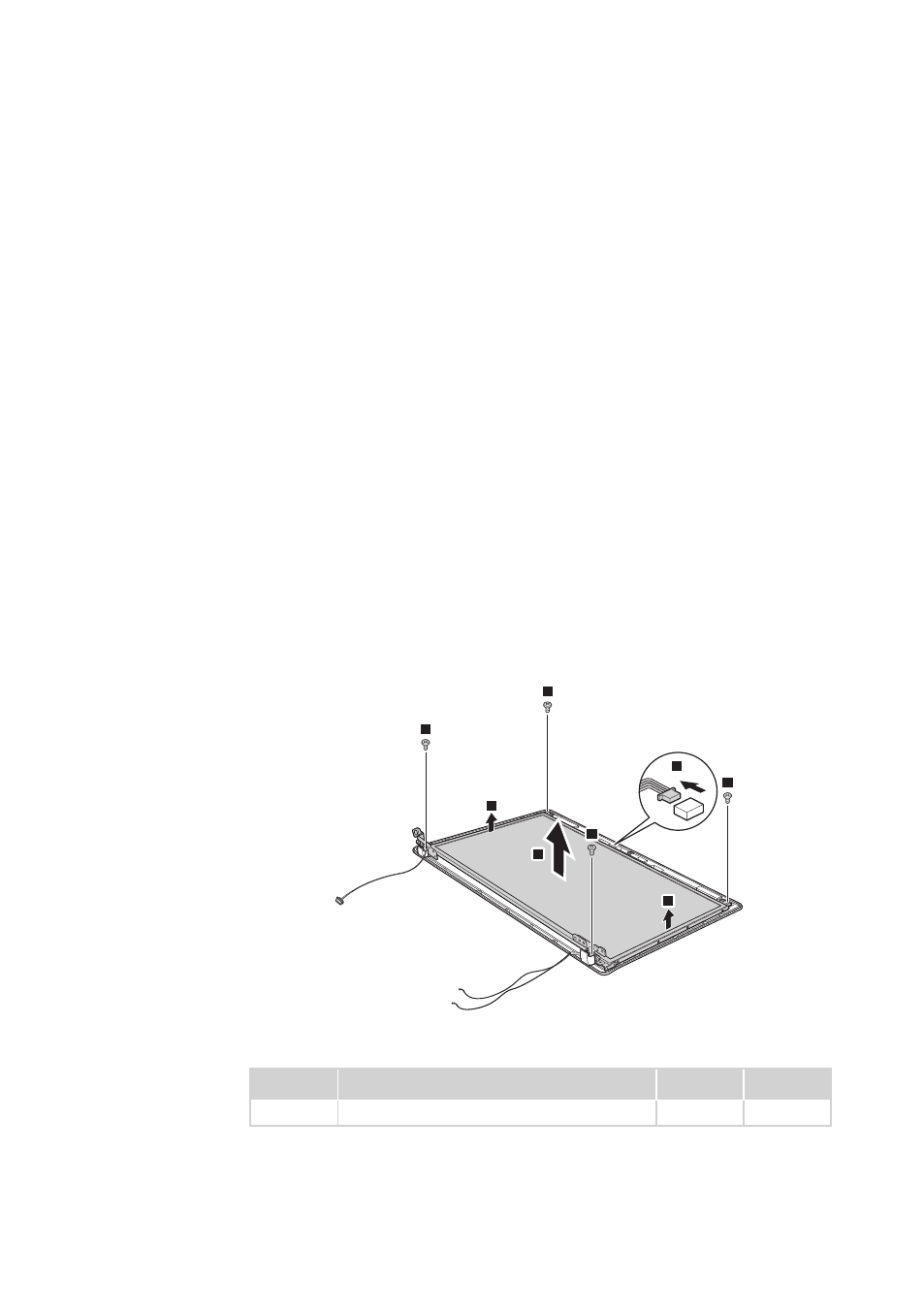

Figure 17. Removal steps of LCD panel and hinges
Remove four screws
1 , and then release the LCD panel. Lift the LCD panel
a little and detach the integrated camera connector in the direction shown by
arrow 2 . Remove the LCD panel 3 .
1
1
1
1
2
3
3
3
Step Screw (quantity) Color Torque
1
M2.5 × 4 mm, flat-head, nylon-coated (4) Black 2.0kgfcm
