Right-side view
1
2
3
4
5

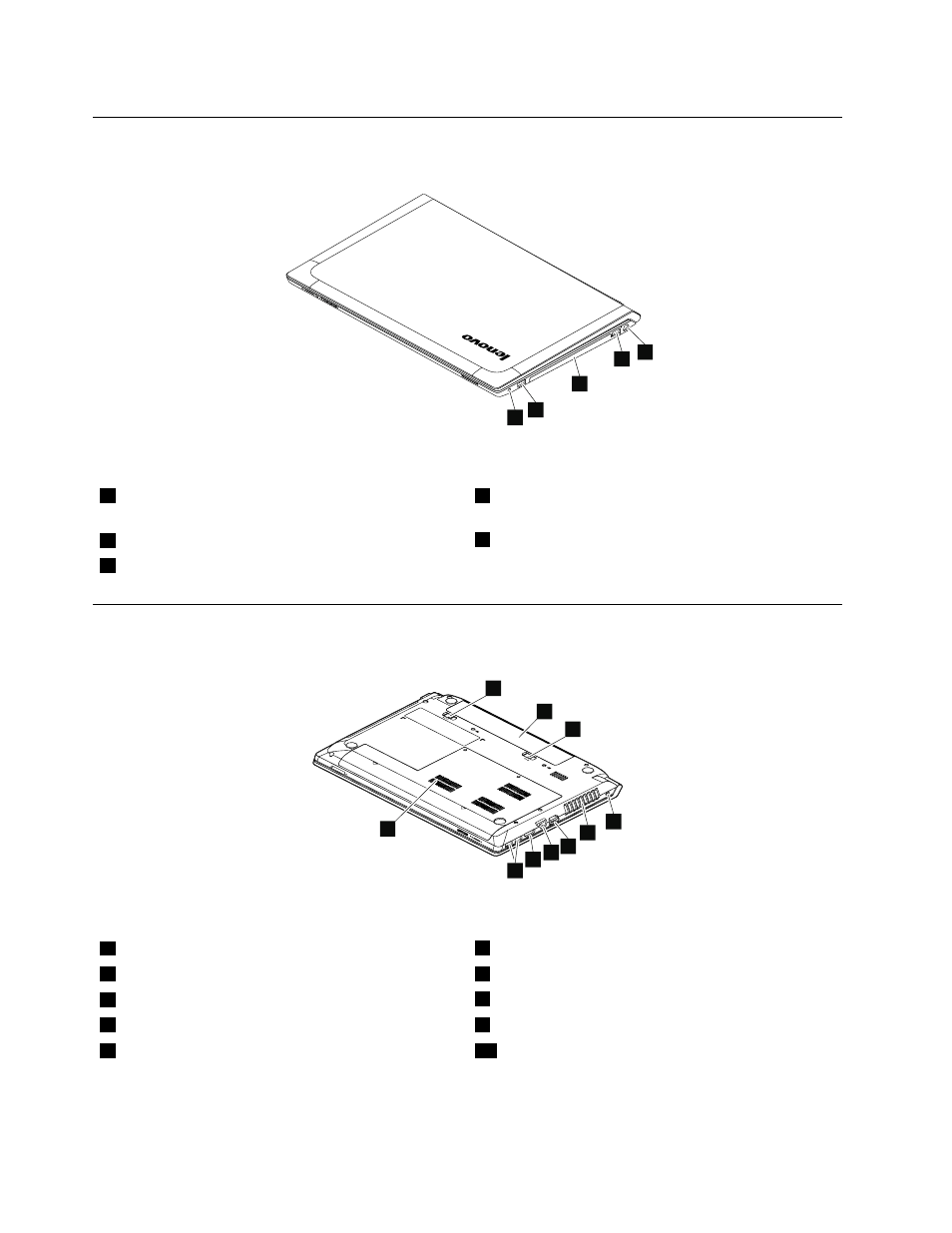

Figure 2. Lenovo B480 right-side view
1 Combo audio jack 4 USB connector
2 USB connector 5 ac power connector
3 Optical drive
Bottom and left-side view
4
5
6
7
8
10
9
1
2
3
Figure 3. Lenovo B480 bottom and left-side view
1 Battery latch (manual) 6 Monitor connector
2 Battery pack 7 Ethernet connector
3 Battery latch (spring loaded) 8 HDMI port
4 Security keyhole 9 USB 3.0 connectors
5 Fan louvers 10 Bottom slot cover 1
1 The memory modules, hard disk drive, and wireless cards are located underneath the bottom slot cover.
