Chapter 8. Locations
This chapter presents the locations of the Lenovo B480 hardware components.
Front view
2
1
2
10
9
11
3
4
6
7
5
8

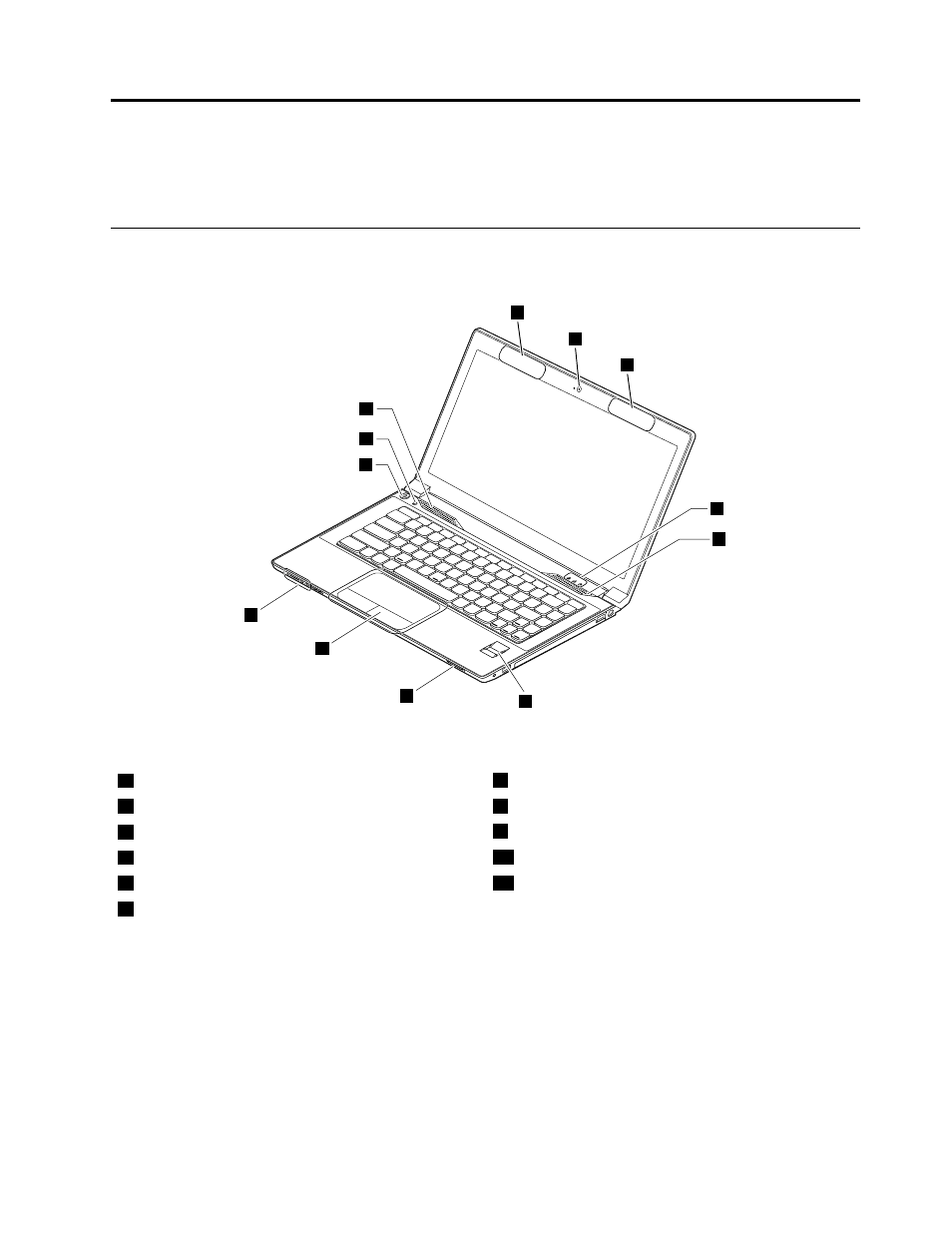

Figure 1. Lenovo B480 front view
1 Integrated camera (on some models) 7 Touch pad
2 Wireless module antennas 8 Power and battery indicator 1
3 Status indicators 1 9 Power button
4 Speaker (right) 10 Recovery button
5 Fingerprint reader (on some models) 11 Speaker (left)
6 Media card reader slot
1 For the description of the indicators, see “Status indicators” on page 38.
