1050 internal antenna – Lenovo A3000 Tablet User Manual
Page 39
Lenovo
IdeaTab
A3000
1050 Internal
or access, remove these FRUs in order:
“1010 Rear cover” on page 27
“1020 Battery pack” on page 29
“1030 System board” on page 30
““1040 Audio board” on page 33

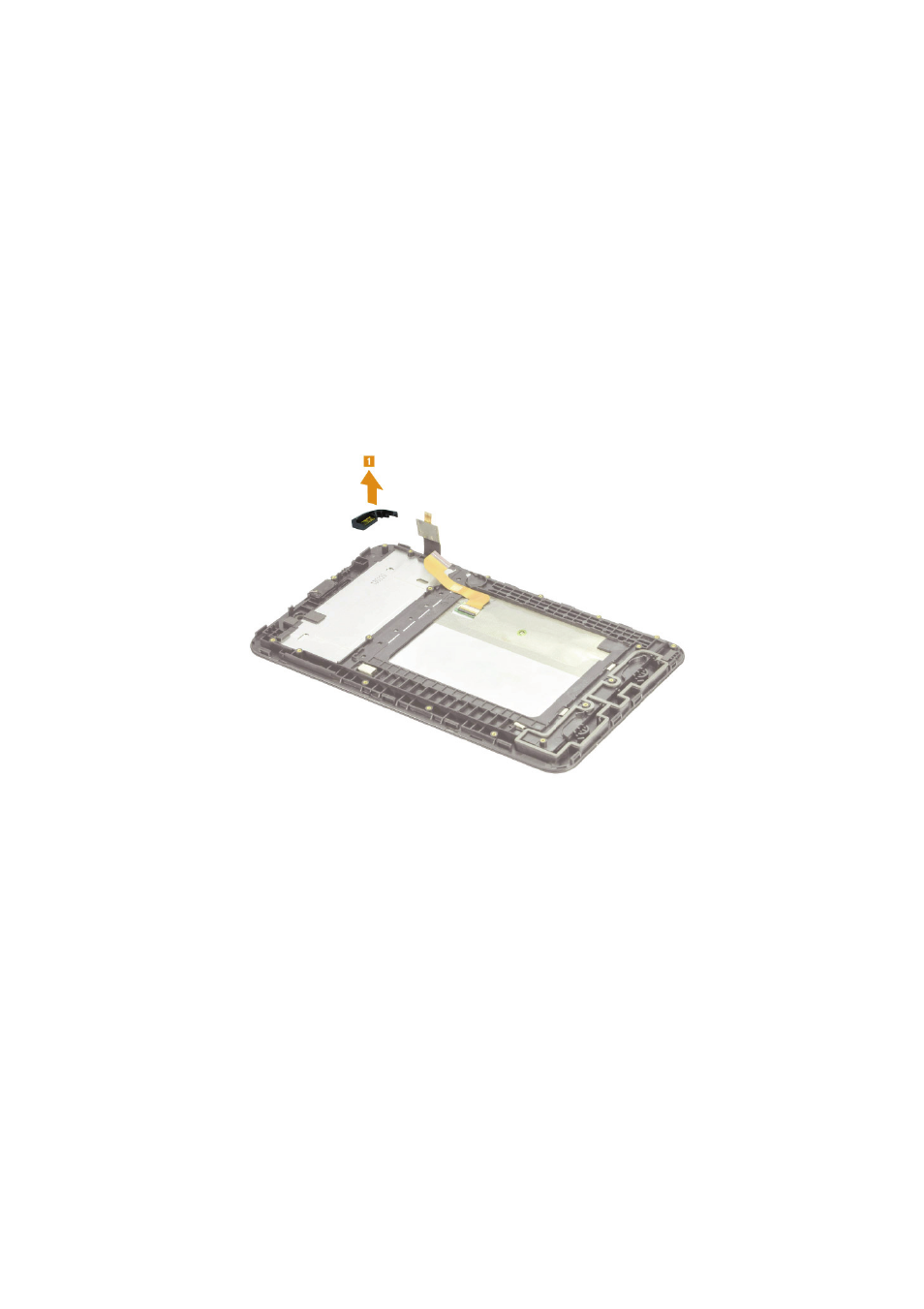

igure 5. Removal steps of internal antenna
emove the internal antenna in the direction shown by arrow
1.
antenna
F
•••
••
••
••
F
R
35
