// Lenovo IdeaTab A3000 Hardware Maintenance Manual

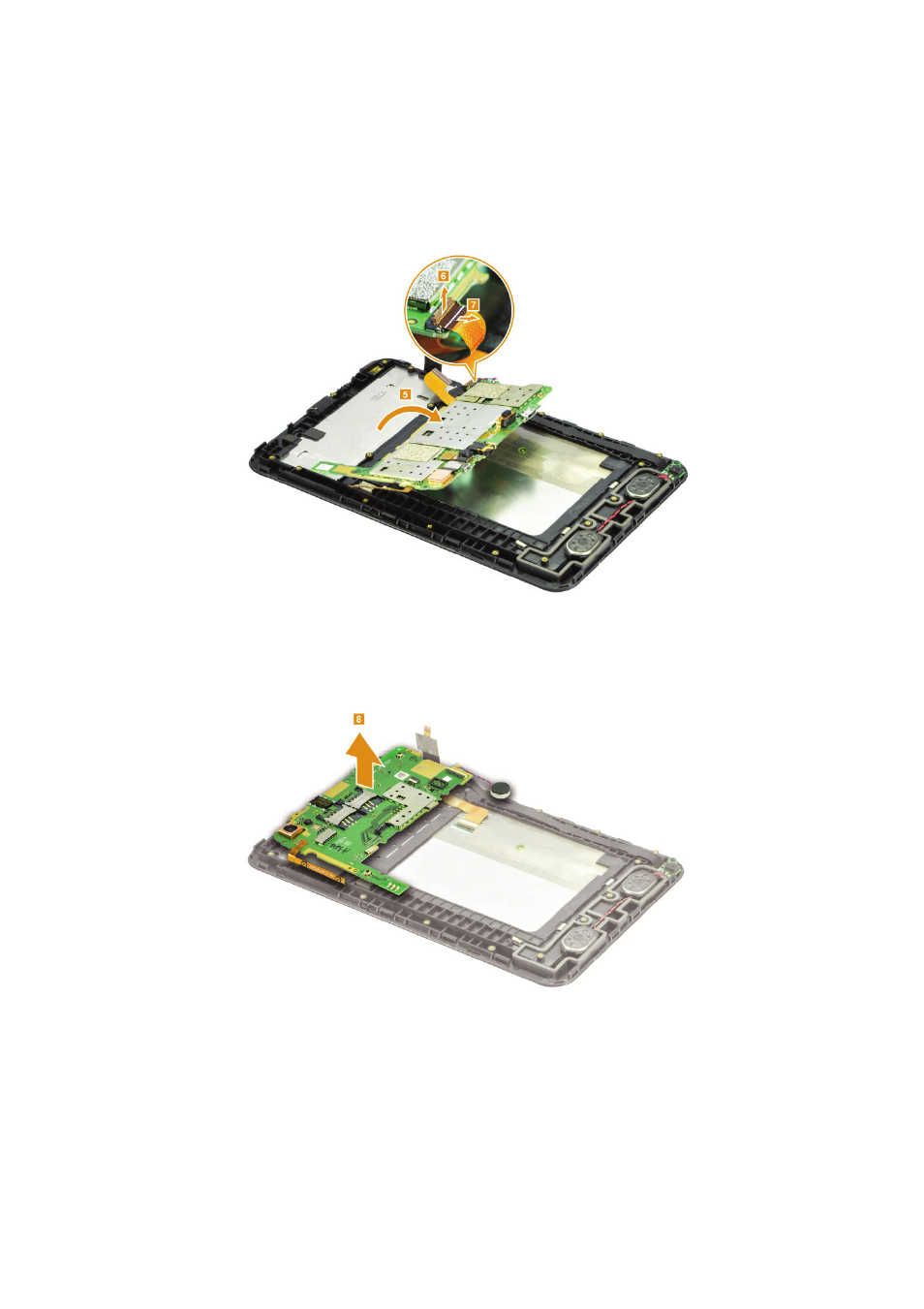

Figure 3. Removal steps of system board (continued)
Gently turn over the system board in the direction shown by arrow 5. Detach the
udio board connector in the direction shown by arrows 6 7 .
en in e ttached.
arefully lift the motor, and then remove the system board in the direction shown
y arrow 8.
a
Wh
stalling: Make sure that all the connectors ar firmly a
C
b
32
