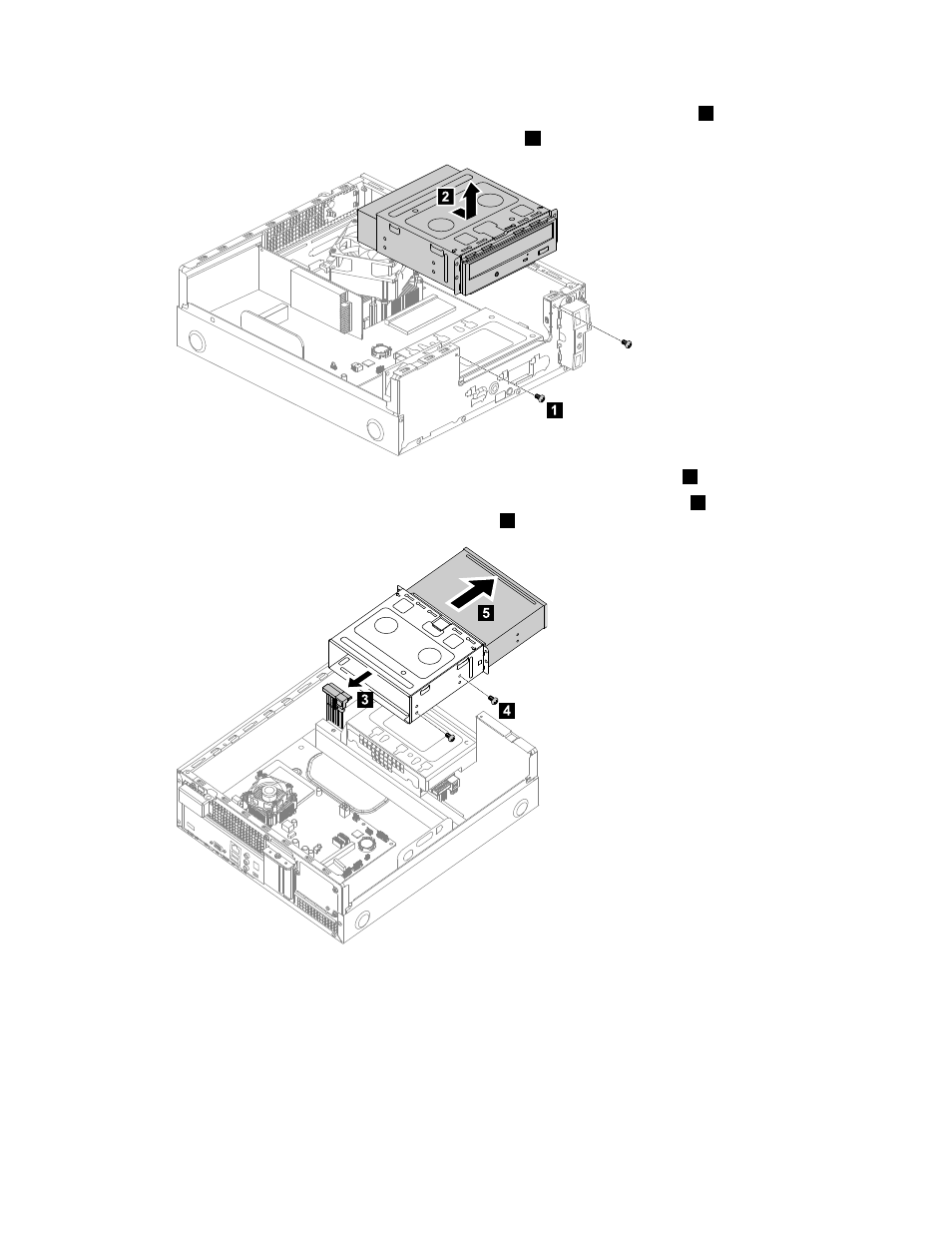

Step 6. Remove the 2 screws that secure the optical disk drive bay to the chassis. 1
Step 7. Slide out the optical disk drive bay, then lift it up. 2
1
2
Step 8. Disconnect the data and power cables from the rear of the optical drive. 3
Step 9. Remove the 2 screws that secure the optical drive to the optical drive bay 4 and push the optical
drive straight out of the front of the drive bay. 5
4
5
3
Step 10. To install the new optical drive:
a. Slide the new optical drive into the bay from the front, then attach it to the drive bay with
the screws.
b. Connect the data and power cables to the new optical drive.
c. Slide the optical disk drive bay back, then push it in and reattach it to the chassis with the
screws.
Step 11. Reattach the front bezel, computer cover.
Chapter 8 . Replacing hardware 33
