Lenovo H30-00 Desktop User Manual
Page 28
Rear view

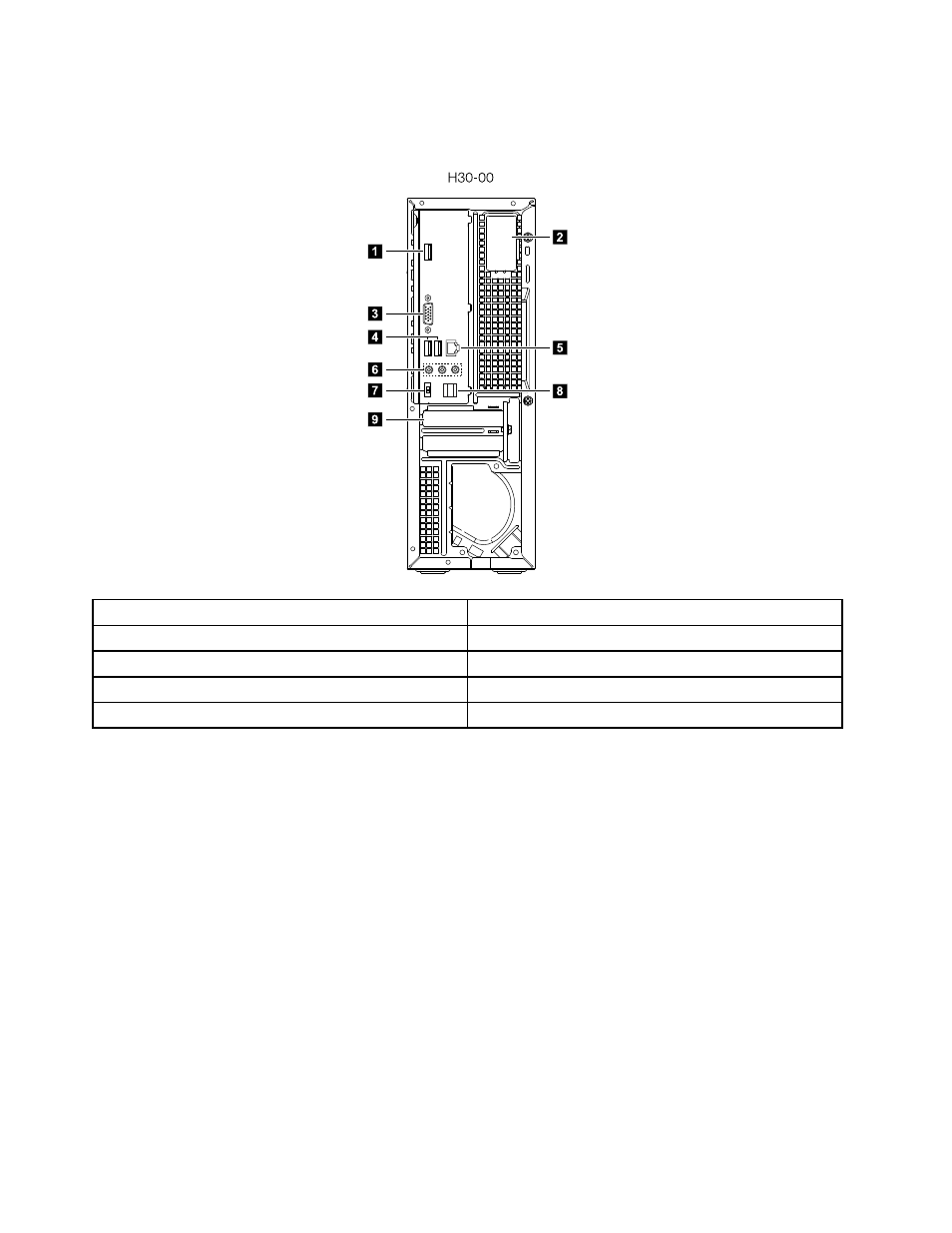

The following illustration shows the location of connectors and components on the rear of the computer.
H
30-00
1
2
8
5
3
6
7
9
4
1. USB 3.0 connector
6. Audio connectors
2. WiFi antenna (selected models only)
7. Power connector
3. On-board VGA connector
8. Cable clip
4. USB 2.0 connectors (2)
9. Expansion card slot
5. Ethernet connector
22
Lenovo H30 SeriesHardware Maintenance Manual
