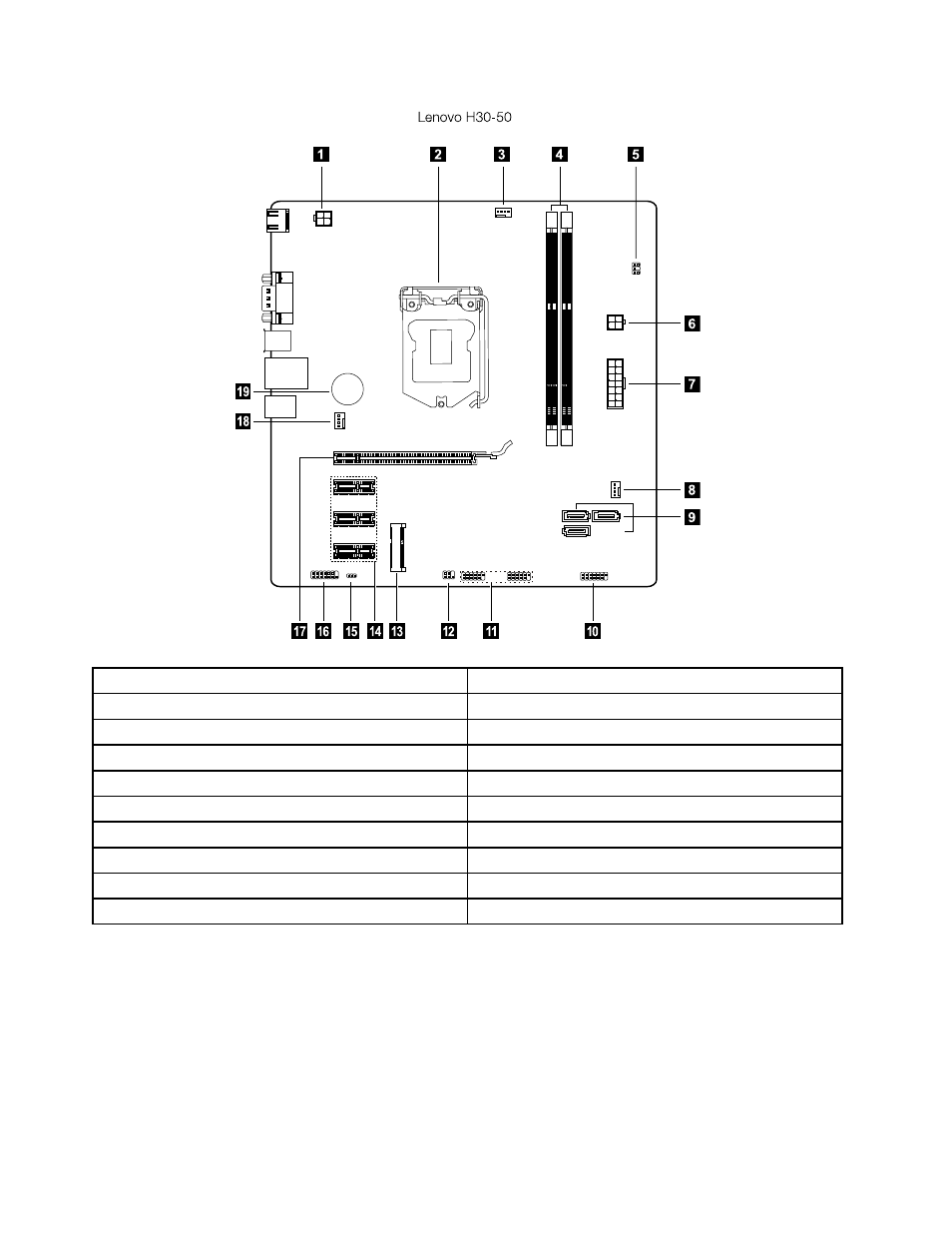

Lenovo H30-50

1. 12V power connector

11. Front USB connectors (2)

2. Microprocessor and heat sink

12. LPC debug header

3. Microprocessor fan header

13. Mini PCI-E slot

4. Memory slots (2)

14. PCI express X 1 adapter slots (3)

5. Thermal sensor header

15. Clear CMOS jumper

6. Hard disk drive power connector

16. Front audio connector

7. Power connector

17. PCI express X 16 adapter slot

8. Power fan header

18. System fan header

9. SATA connectors (3)

19. Battery

10. Front panel connector
