Hardware Maintenance Manual
44
Removing the computer rear deco
To remove the computer rear deco
1. Remove the computer stand. Refer to “Removing the computer stand”.
2. Remove the computer cover. Refer to “Removing the computer cover”.

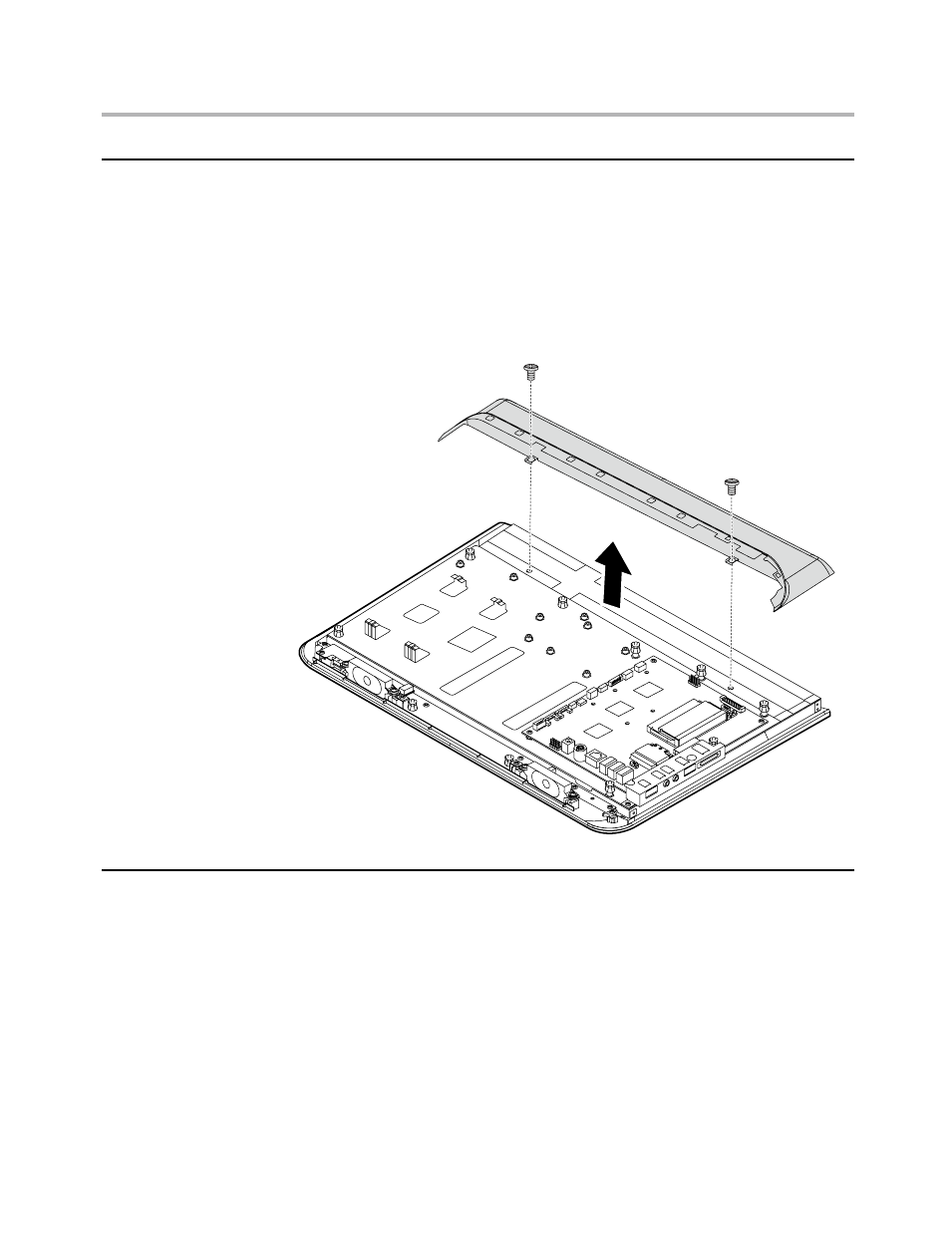

3. Remove the 2 screws that secure the rear deco to the chassis.
4. Slide the rear deco out.
Replacing the motherboard
To replace the motherboard
1. Remove the computer stand. Refer to “Removing the computer stand”.
2. Remove the computer cover. Refer to “Removing the computer cover”.
3. Remove the motherboard cover. Refer to “Removing the motherboard
cover”.
4. Remove the memory module. Refer to “Replacing a memory module”.
5. Remove the heatsink. Refer to “Replacing the heatsink”.
6. Remove the WLAN card. Refer to “Replacing the WLAN card”.
