Page 43
Chapter 8. Replacing hardware
41
9. Seal the insulating box with the insulating tape.
10. Install the computer cover and screw back the computer stand.

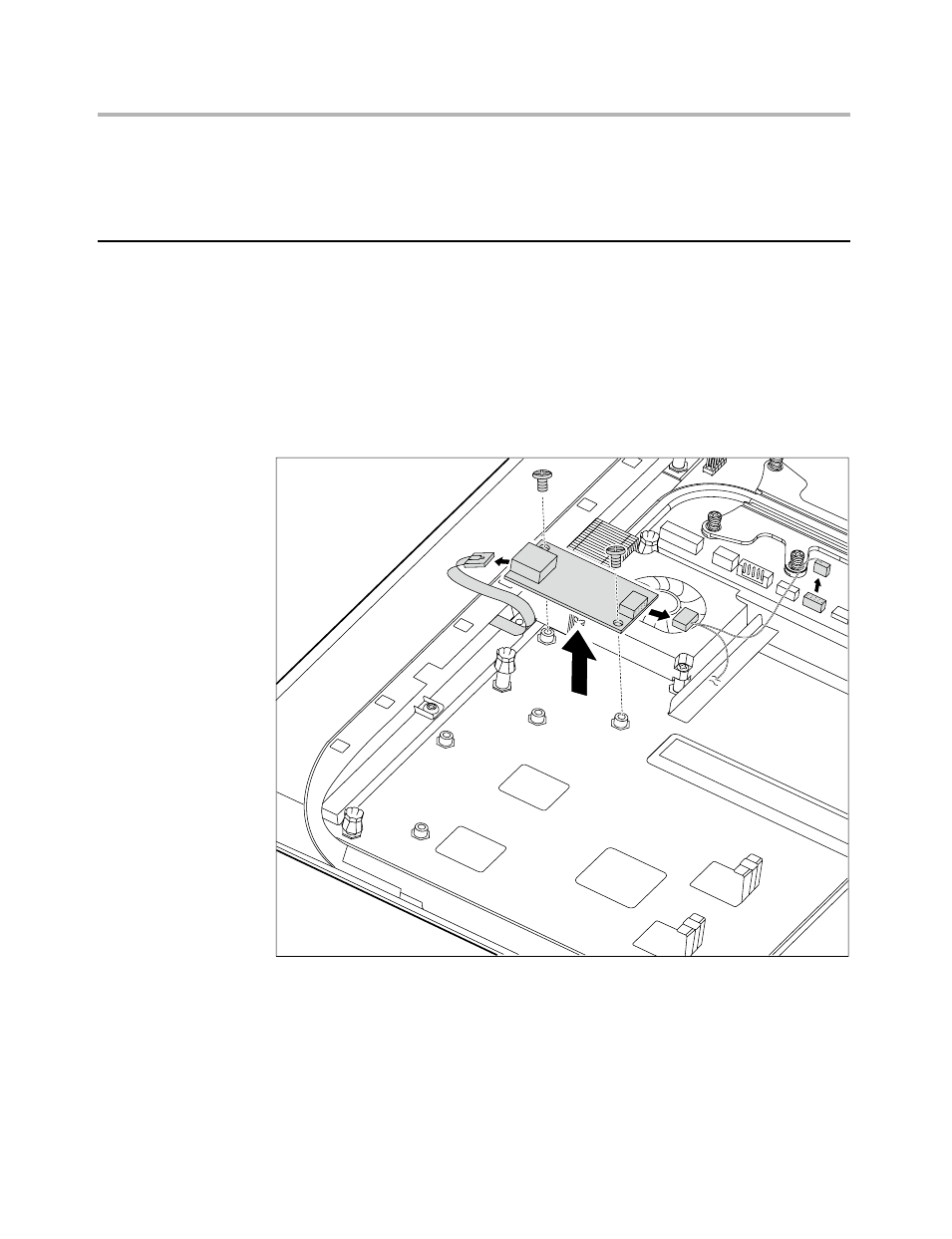

Replacing LCD touch panel control module
To replace the LCD touch panel control module
1. Remove the computer stand. Refer to “Removing the computer stand”.
2. Remove the computer cover. Refer to “Removing the computer cover”.
3. Remove the 2 screws that secure the LCD touch panel control module
to the chassis.
4. Disconnect the cables from the LCD touch panel control module.
5. Connect the cables to the new LCD touch panel control module.
6. Align then screw back the new LCD touch panel control module.
7. Install the computer cover and screw back the computer stand.
