3
2
1060 Memory module
For access, remove these FRUs in order:
•
“1020 Battery pack” on page 66
• “1030 Large bottom cover” on page 67

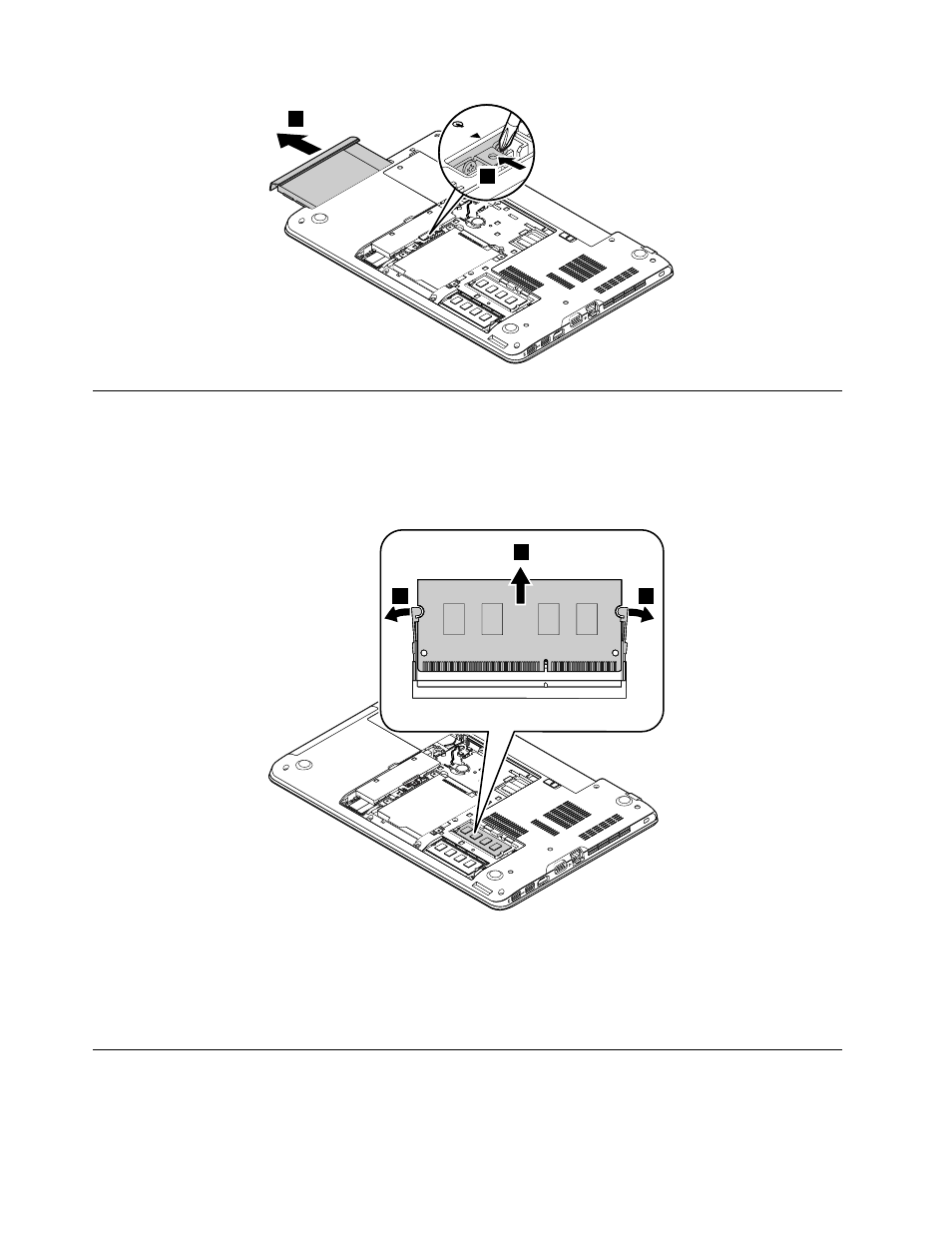

Removal steps of the memory module
1 1
2
When installing:
Insert the notched end of the memory module into the slot at an angle of about 20 degrees. Press the
memory module firmly, and pivot it downwards until it snaps into place. Ensure that the memory module is
firmly installed in the slot and does not move easily.
1070 Hard disk drive assembly or solid-state drive assembly
For access, remove these FRUs in order:
•
“1020 Battery pack” on page 66
70 Hardware Maintenance Manual
