2030 lcd panel, lcd cable, and hinges – Lenovo B580 Notebook User Manual
Page 81
Removal steps of integrated camera

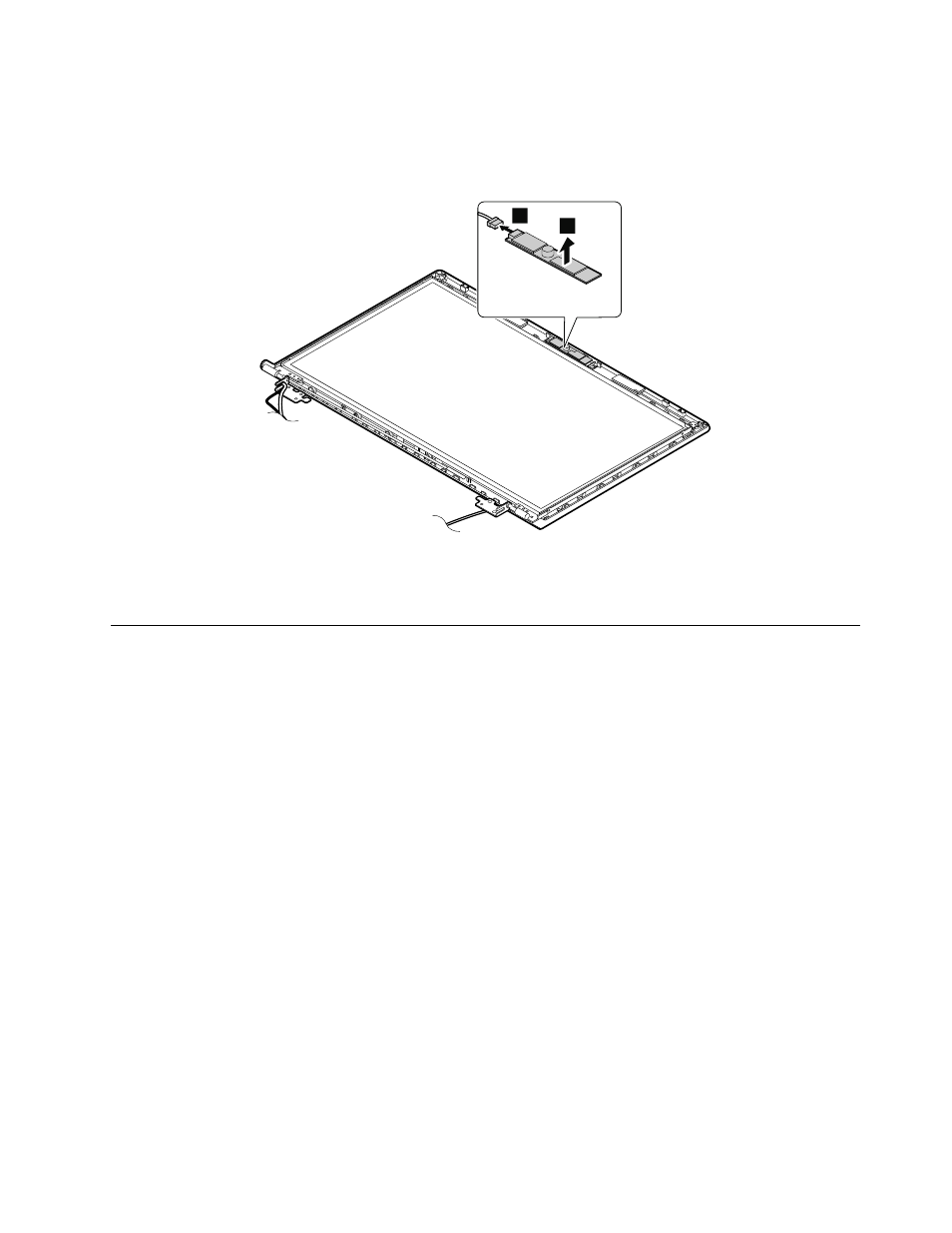

Remove the integrated camera from the LCD cover as shown in the following illustration.
Note: The integrated camera is stuck on the top center of the LCD cover.
1
2
When installing: Stick the integrated camera to the top center of the LCD cover and adjust the placement to
make sure that the connector is attached firmly.
2030 LCD panel, LCD cable, and hinges
For access, remove these FRUs in order:
•
“1010 Battery pack” on page 44
•
•
“2010 LCD front bezel” on page 73
Chapter 7
.
Removing and replacing a FRU
75
