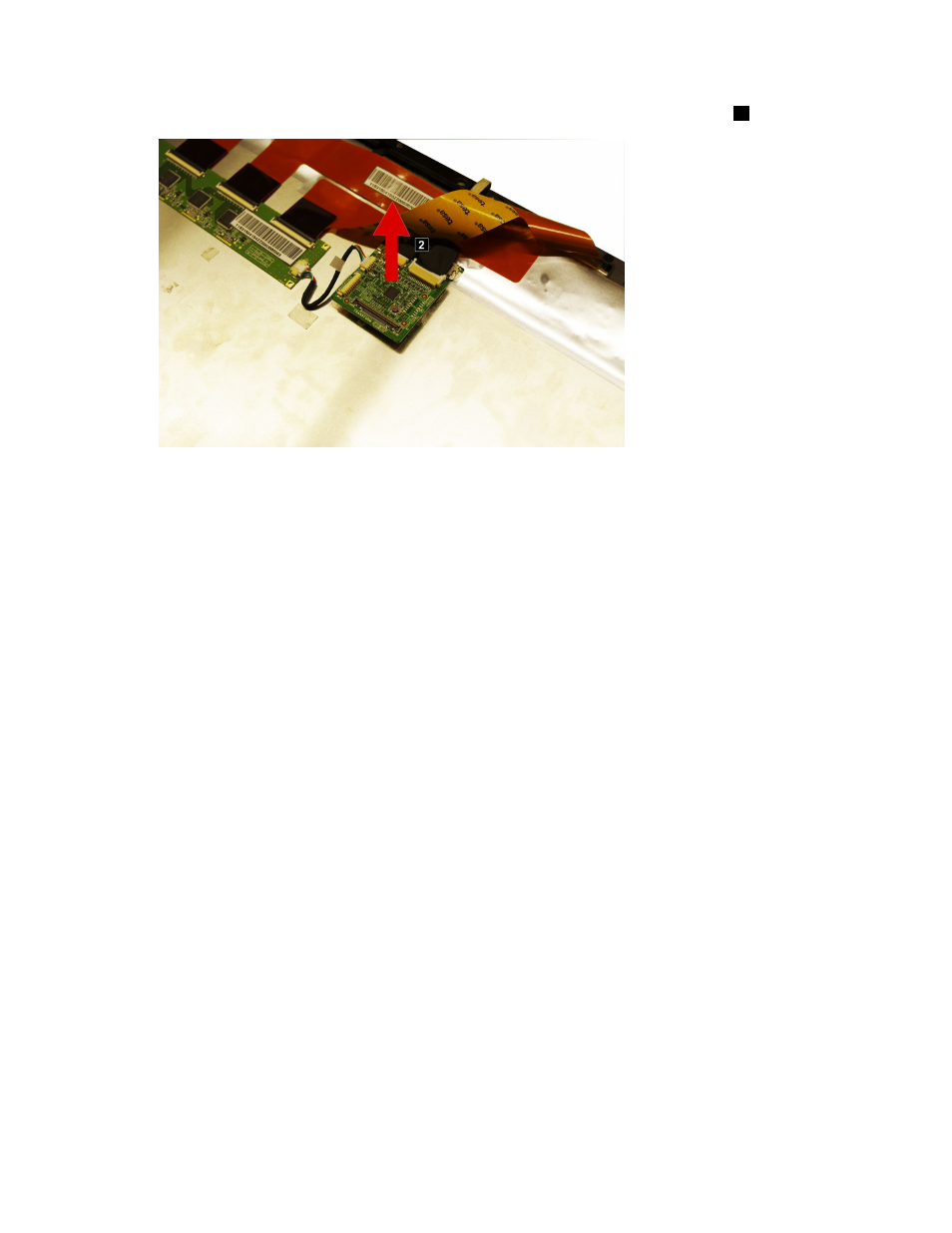

Step 11. Remove the transform board, LVDS, camera, and touch cable from the LED panel.
2
Step 12. To install the new the LED panel module:
a.
Connect the LVDS cable to the connector and touch control board.
b.
Reattach the converter board, transform board to the LED panel.
c.
Reattach the camera to the front bezel.
d.
Connect the converter cables to the connectors on both LED panel and converter board.
e.
Connect the LVDS cable to the connectors on both LED panel and transform board.
f.
Connect the touch cable to the connectors on both transform board and touch control board.
g.
Attach the front bezel hinge to the front bezel.
Step 13. Reattach the rear cover and secure it with the screws.
46
Lenovo Flex 20 All-In-One PC Hardware Maintenance Manual
