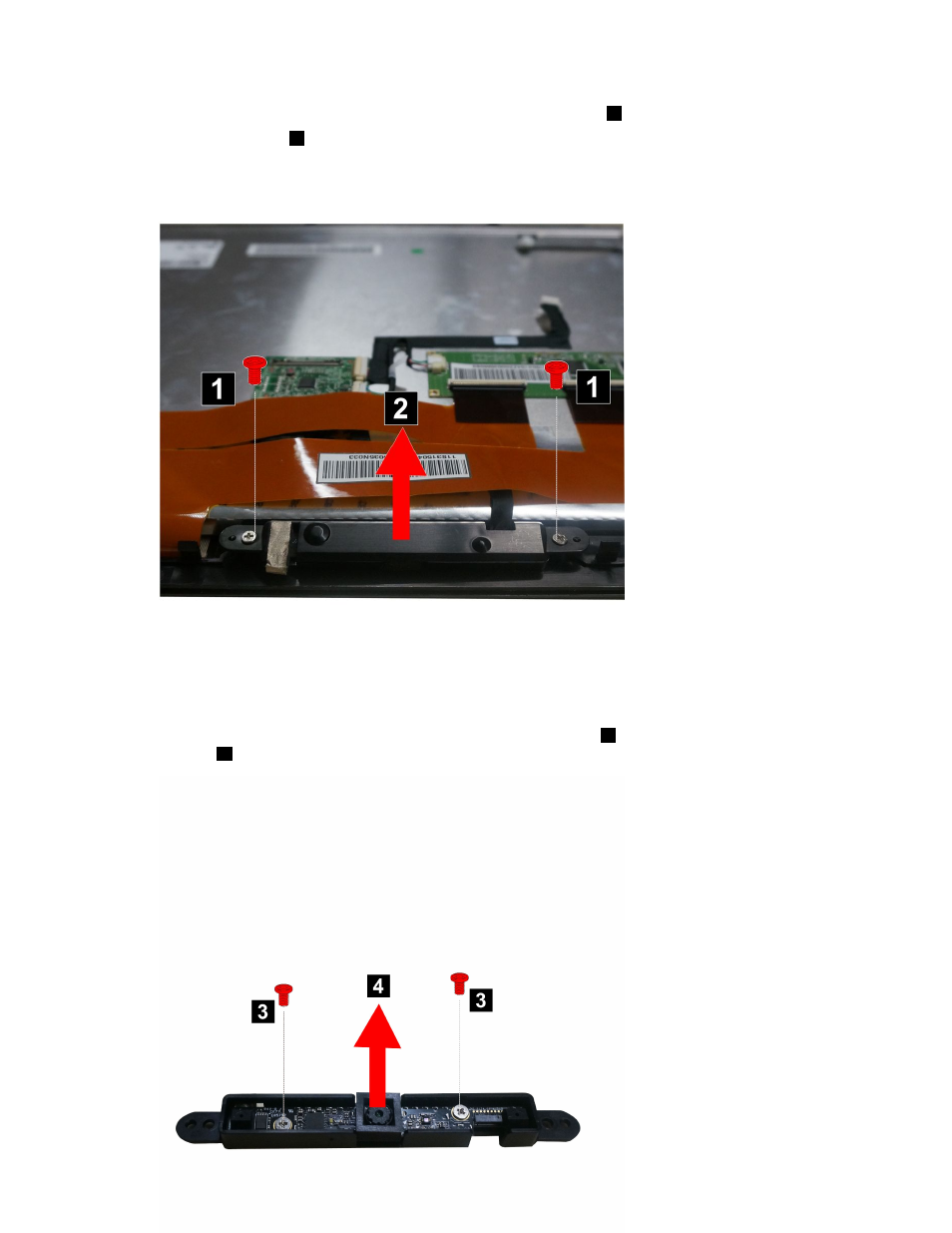

Step 5. Remove the 2 screws that secure the camera to the front bezel. 1
Step 6. Lift up the camera 2 and disconnect the data cable from the camera.
Step 7. Remove the two screws that secure the camera to the housing 3 , then lift the camera out as
shown. 4
Step 8. To install the new camera:
a. Connect the data cable to the new camera.
b. Line up the holes in the new camera with the mounting holes on the front bezel and secure
the new camera with the 2 screws.
44 Lenovo Flex 20 All-In-One PC Hardware Maintenance Manual
