42
Lenovo IdeaPad U300/U300s/U400 Hardware Maintenance Manual

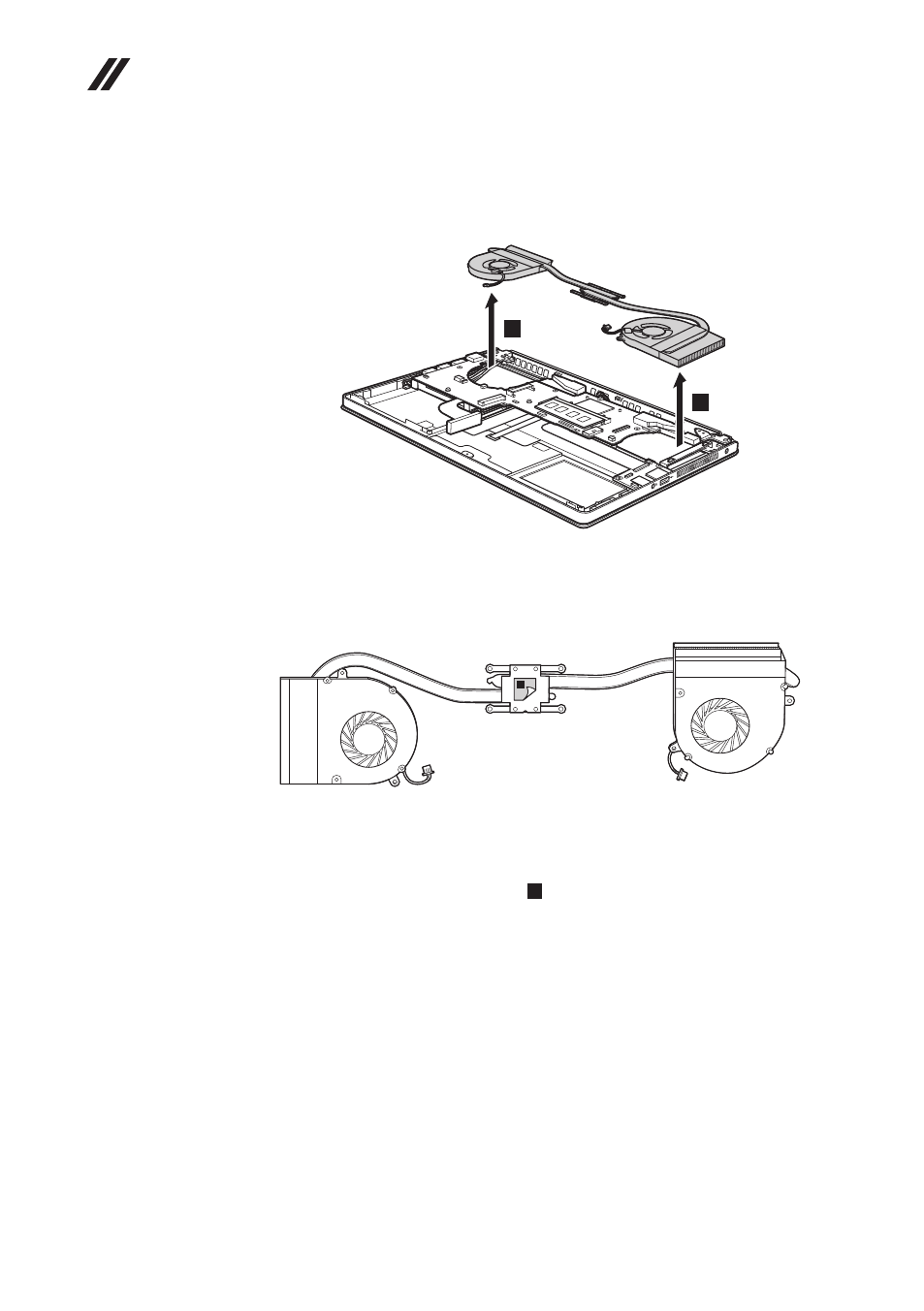

Figure 6. Removal steps of fan assembly and heat sink assembly (continued)
Lift the fan assembly and heat sink assembly in the direction shown by arrow
4 .
Be careful not to damage the connector.
4
4
Attention: Do not handle the heat sink assembly roughly. Improper handling
can cause distortion or deformation and imperfect contact with components.
a
When installing:
Before you attach the fan assembly to the computer, apply thermal grease, •
at an amount of 0.2 grams, to the
a
part shown in the figure above. Either
too much or too less grease application can cause a thermal problem due to
imperfect contact with a component.
