Lenovo B50-30/B50-30 Touch/B50-45/ B50-70
Hardware Maintenance Manual
48
1110 Led board
For access, remove these FRUs:
• “1010 Battery pack” on page 33
• “1020 Optical drive” on page 34
• “1030 Bottom slot cover” on page 36
• “1070 Keyboard” on page 41
• “1080 Keyboard bezel” on page 43

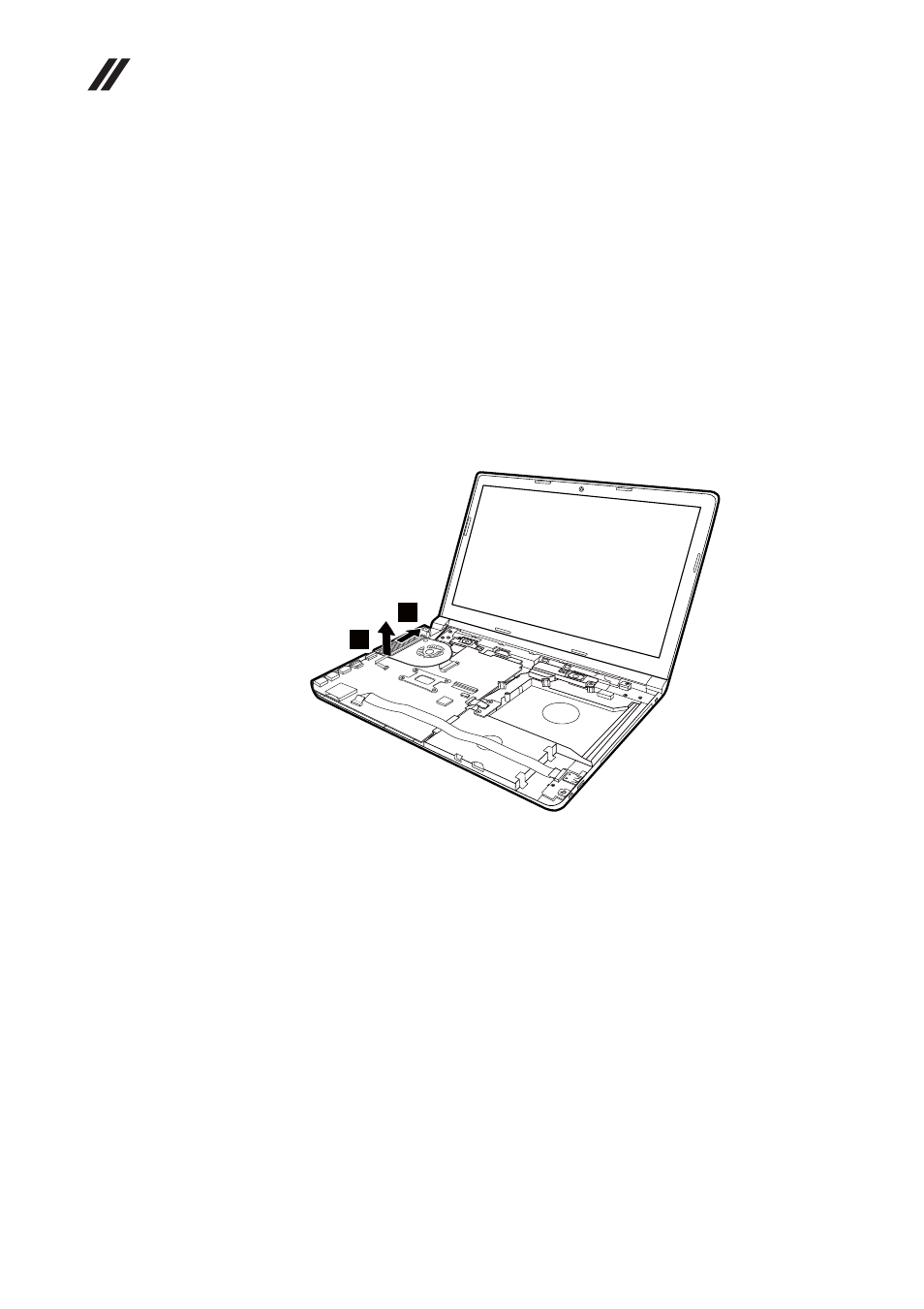

Figure 11. Removal steps of led board
Detach the adhesive of the led board by arrow
.Peel off the FPC of the led
board by arrow
to remove it.
When installing: Make sure that the led connector is attached firmly.
a
b
1
2
