Page 23

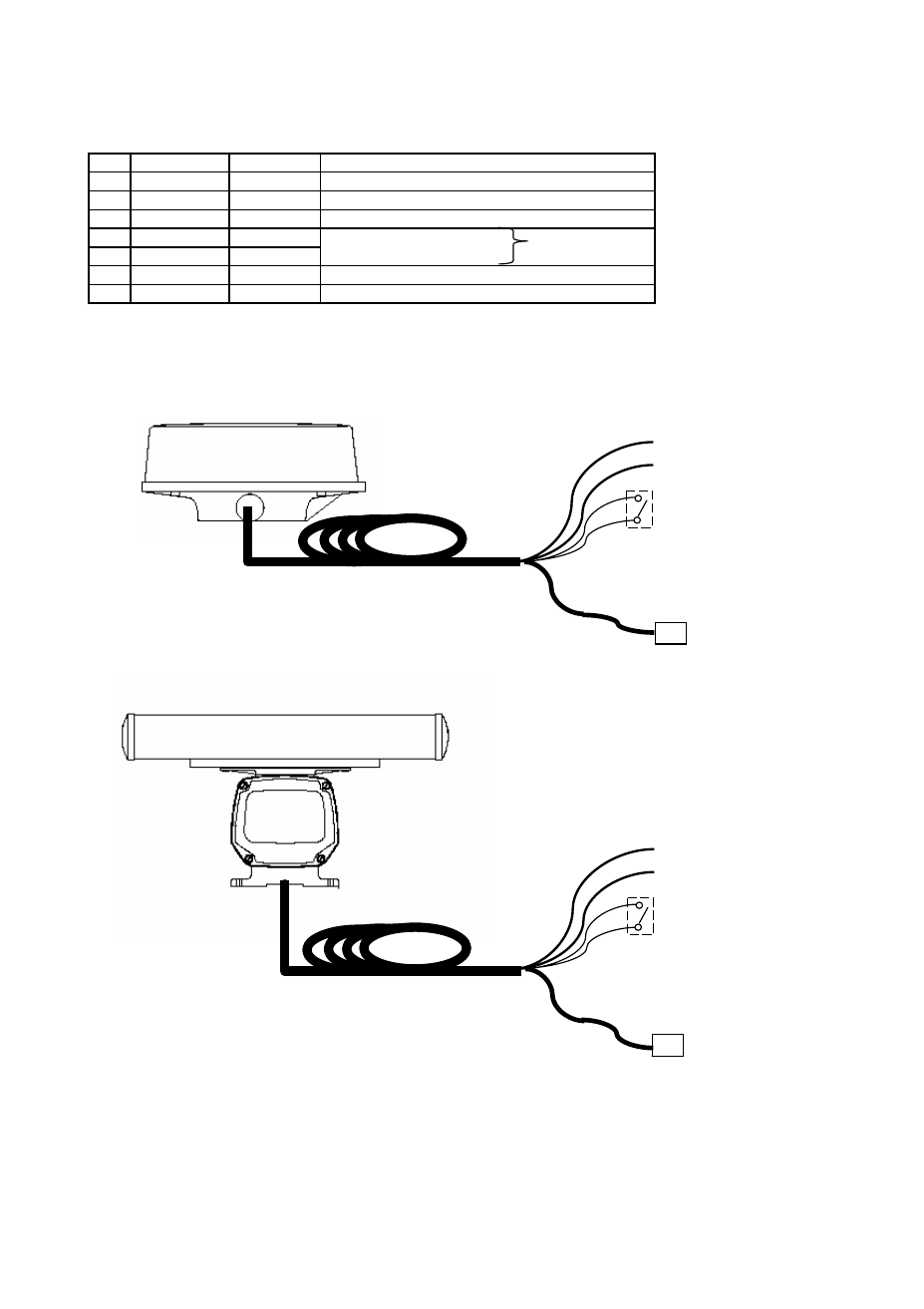

5. Electrical and Data connction
Function
Wire Color
Remareks
①
Battery (+)
Large White
DC12V to DC41.6V
②
Battery (-)
Large Black
0V
③
Switch (1)
Green
POWER ON: short circuit (green - blue)
④
Switch (2)
Blue
POWER OFF: open circuit
⑤
Data
-
LAN data to pc
① White:Battery(+)
②Brack:Battery(-)
③Green:Switch (1)
④Blue :Switch (2)
MDS-1R/8R/9R
⑤RJ45:Data
① White:Battery(+)
②Brack:Battery(-)
③Green:Switch (1)
④Blue :Switch (2)
MDS-10R
⑤RJ45:Data
Power switch:Option
