MDS-1R/8R/9R/10R Installation
MDS-8R

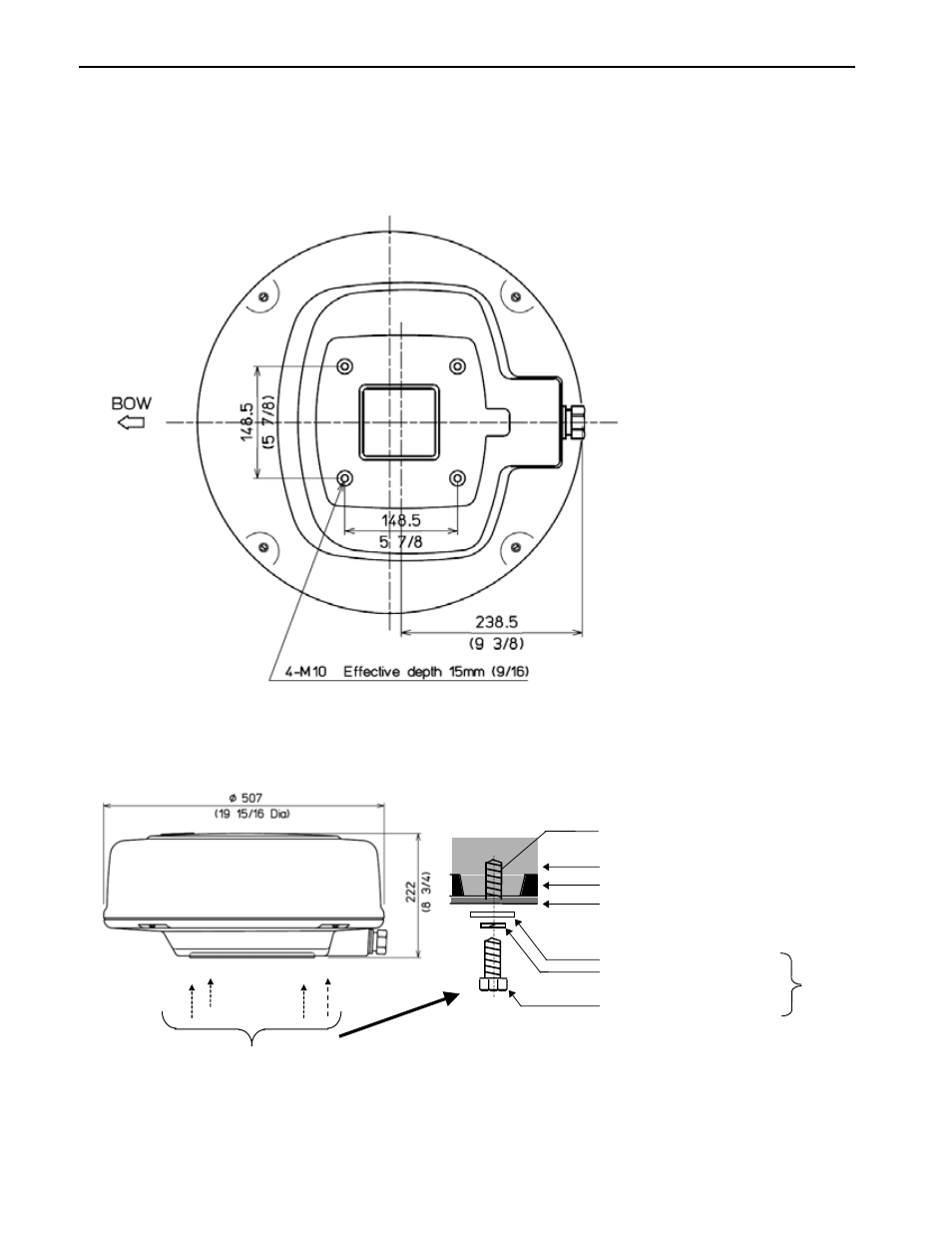

Fig.3-6 Hole positions for mounting Scanner Unit(MDS-8R)
Mount base
Washer
Spring washer
M10 Hexagonal bolt
Radome(bottom)
Chassis
Depth 15 (9 /16in) Max.
Included
Fix four screws
Fig.3-7 Mounting the Scanner Unit(MDS-8R)
