MDS-1R/8R/9R/10R Installation
MDS-9R

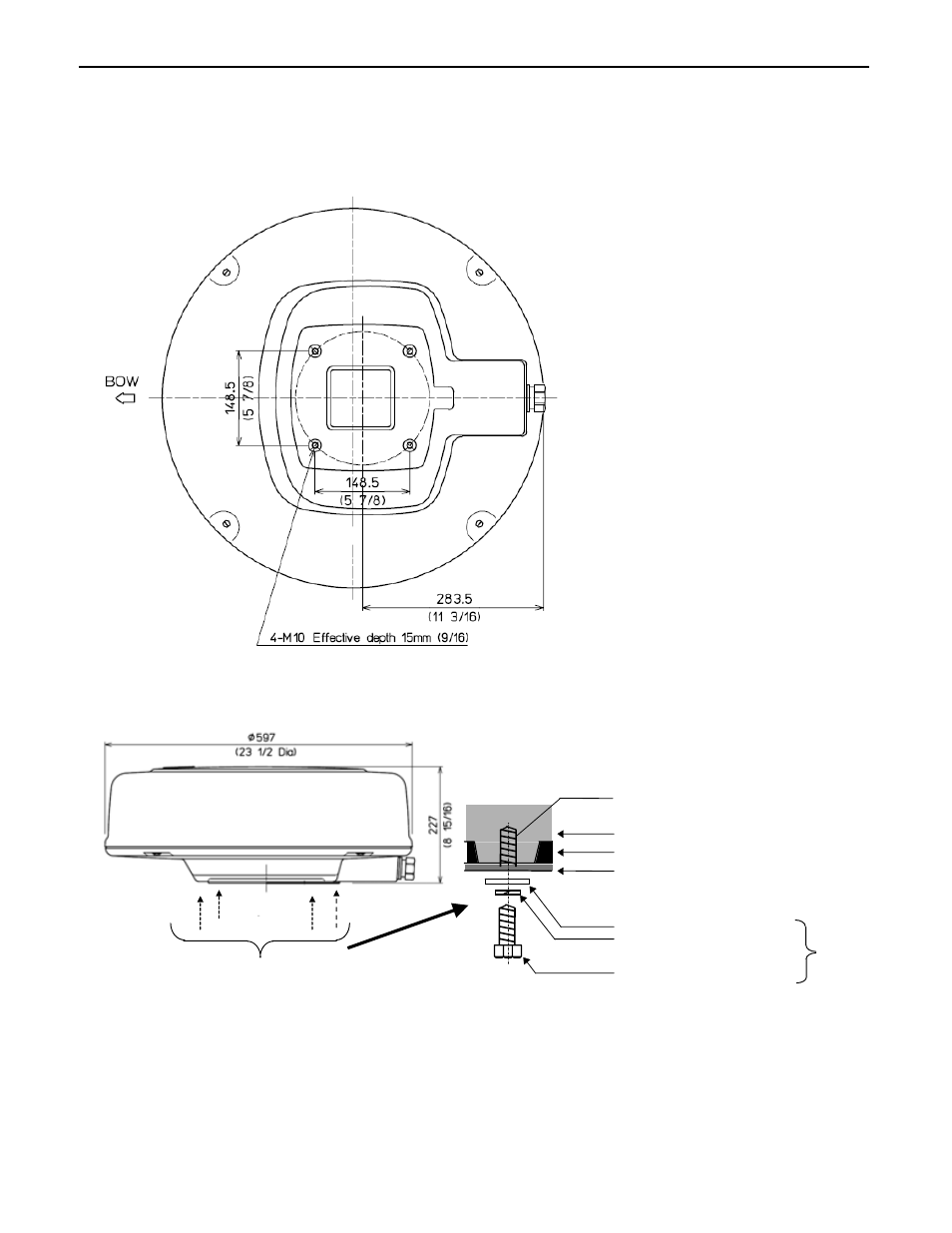

Fig.3-8 Hole positions for mounting Scanner Unit(MDS-9R)
Mount base
Washer
Spring washer
M10 Hexagonal bolt
Radome(bottom)
Chassis
Fix four screws
Depth 15 (9 /16in) Max.
Included
Fig.3-9 Mounting the Scanner Unit(MDS-9R)
15
