Depth range: 1.2 to 1000 feet ( 0.3 to 365 Metres)
Resolution: 0.1 Feet, Meters or Fathoms below 20.0, full digits above 20
Keel offset adjust range: -20.0 to +20.0 feet
Alarms: Shallow depth alarm
Deep depth alarm
Anchor drag alarm
Display: 4 digit LCD
Feet, Metres and Fathoms icons
Alarm ON/OFF icons
5 levels of backlighting
External and internal ON/OFF control for backlights
Variable display damping
NMEA 0183 Out: $SDDPT, Depth below transducer
Installation
Before starting the installation, please read this entire section
first. Finger tighten the screws that mount the instrument
bracket - It is not necessary or recommended to use tools.

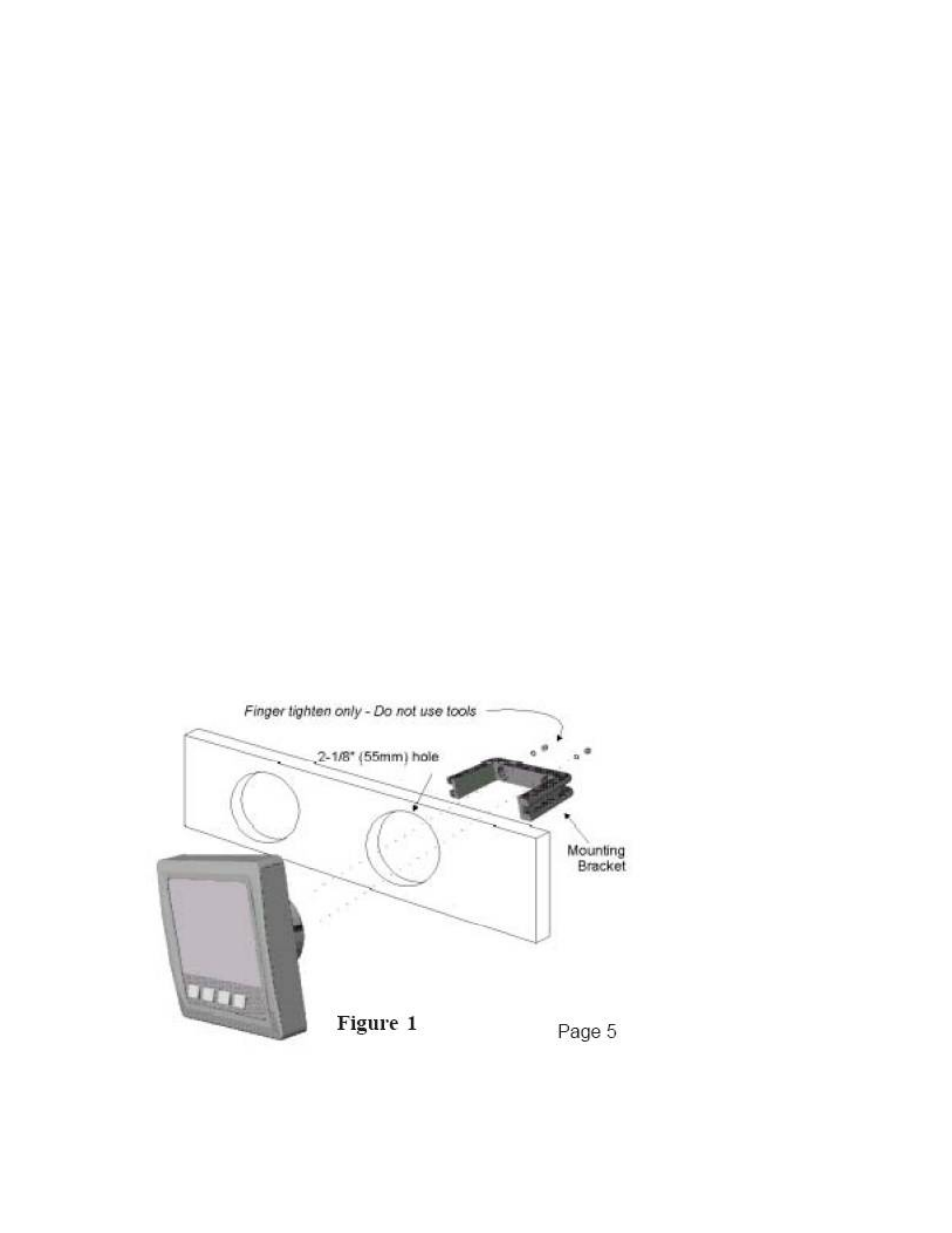

• Drill a 2-1/8" (55mm) mounting hole where you desire to
mount the instrument (Figure 1).
• Connect the various wires from Cable 1 and Cable 2 as
shown in Figures 2 and Figure 3.
• Carefully check all your wiring against figures 2 and 3 and
then mount the instrument in the hole. Use only finger
tension to tighten the bracket hold-down nuts.
