Page 60
54
Chapter 3

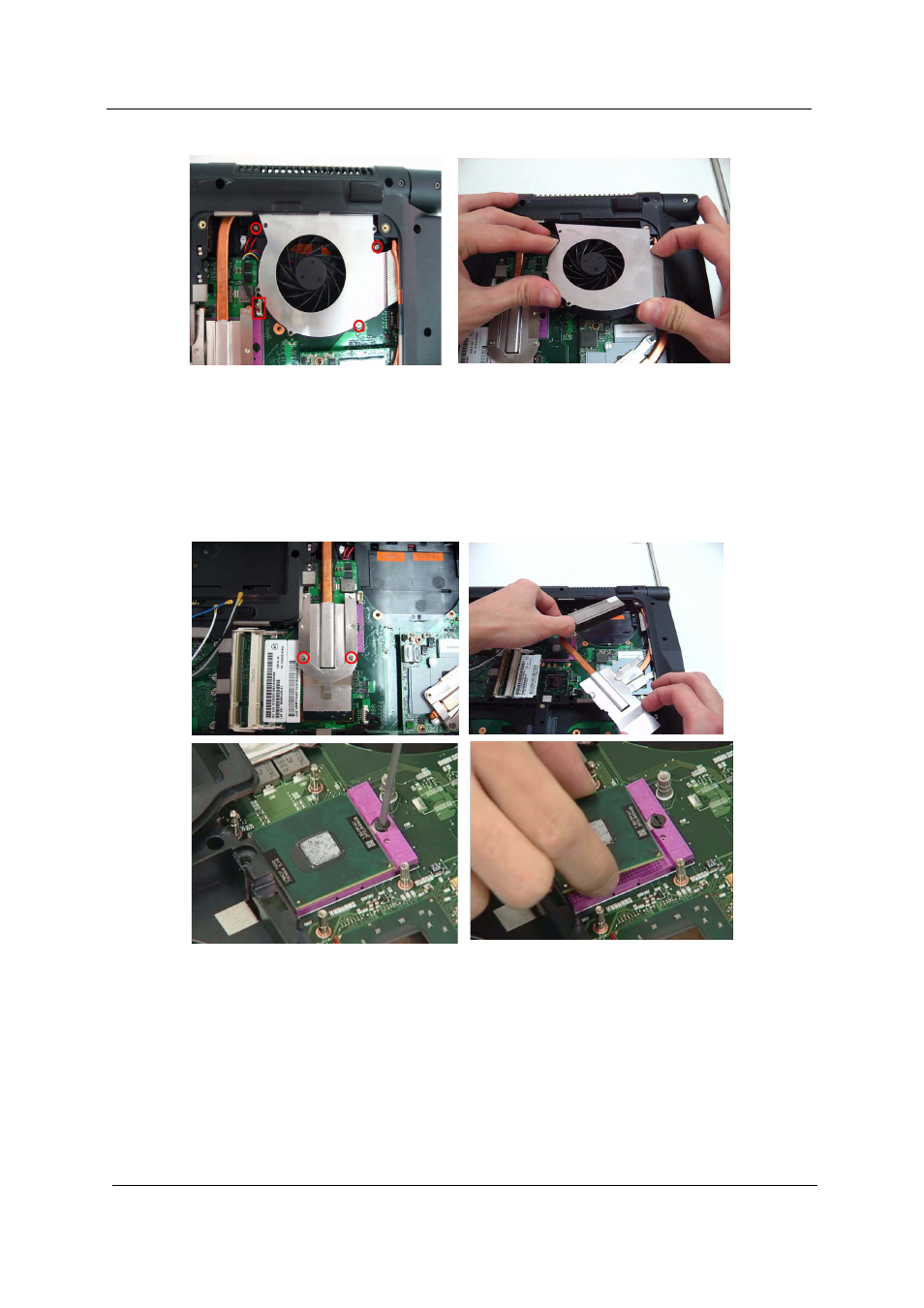

11. Take out the system fan from the main unit as shown.
Removing the Thermal Modules and the CPU
12. Remove the two screws holding the finger heatsink.
13. Detach the finger heatsink from the main board.
14. Then take out the CPU heatsink from the main board.
15. Use a flat screwdriver to release the CPU lock (Turn counter clock-wise) then remove the CPU carefully.
16. Remove the Express dummy card.
