Connector, Connector -1 – MSI MS-96E3 User Manual
Page 27
Hardware Setup
MS-96E3
2-11
Hardware Setup
MS-96E3

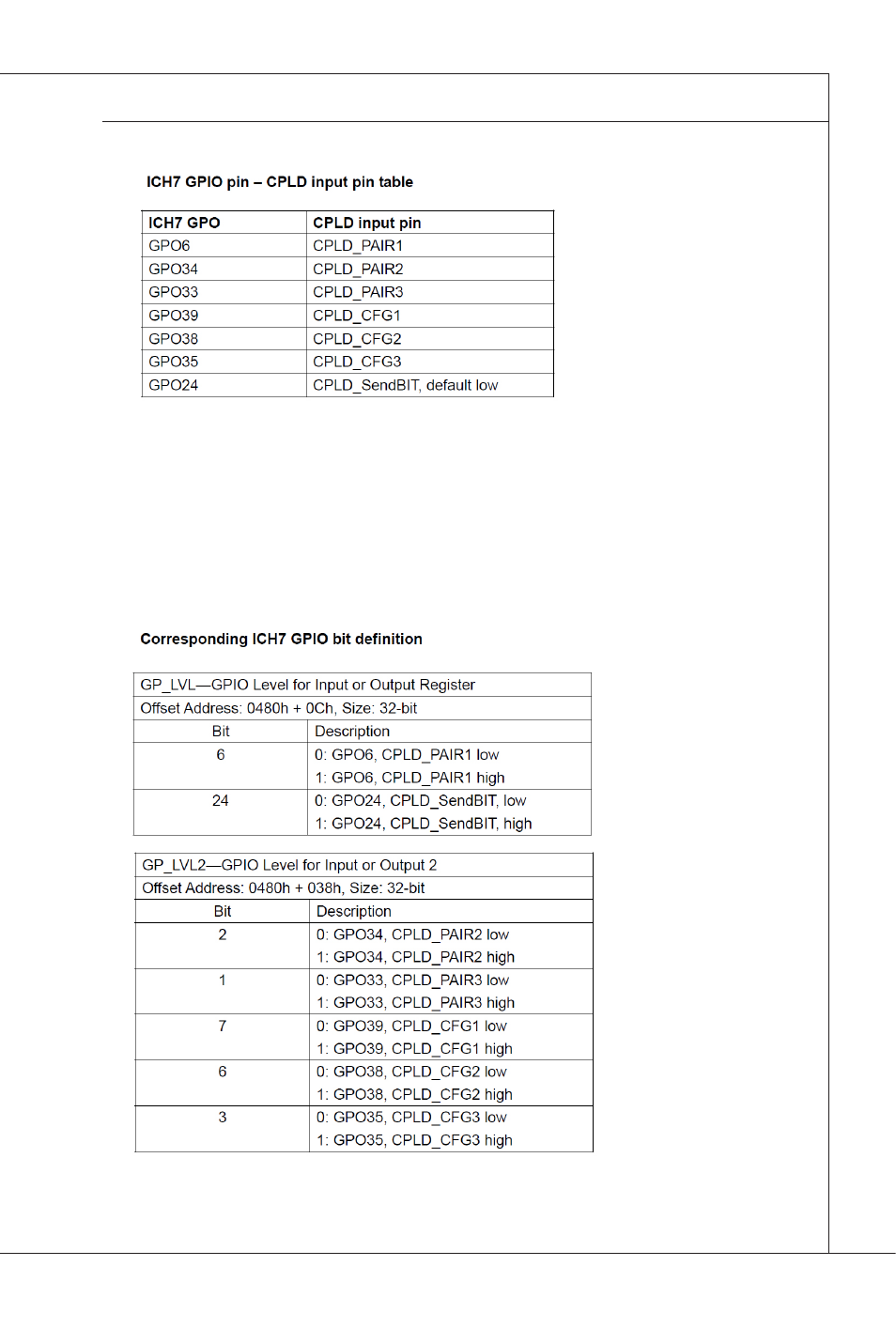

Programming Sequence
1. program GPO6,34,33, PAIR(3:1) to swtch LAN1-2 or LAN3-4 par
2. program GPO39,38,35 CFG(3:1) to control LAN par behavor Bypass/
PassThrough/WDT
3. set GPO24, CPLD_SendBIT hgh about 150ms then set t low about 50ms
to complete the LAN pair configuration progress
4. go to next programmng sequence loop for the next LAN par!
