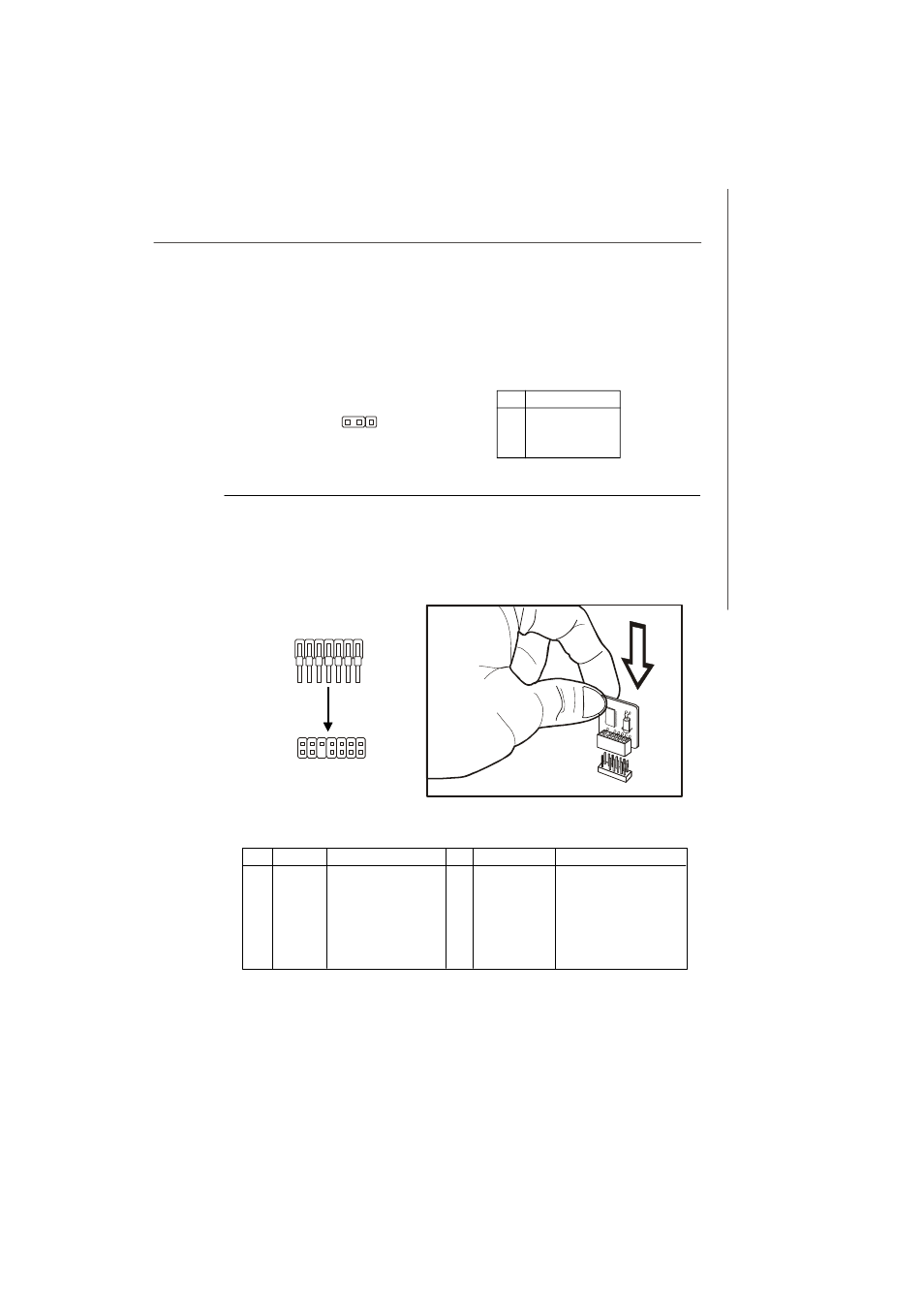

TPM Connector: JTPM1 (Optional)
This connector connects to an optional TPM (Trusted Platform Module). Please refer
to the TPM security platform manual for more details.
PIN SIGNAL DESCRIPTION PIN SIGNAL DESCRIPTION
1 LCLK LPC clock 2 3V dual/3V_STB 3V dual or 3V standby power
3 LRST# LPC reset 4 VCC3 3.3V power
5 LAD0 LPC address & data pin0 6 SIRQ Serial IRQ
7 LAD1 LPC address & data pin1 8 VCC5 5V power
9 LAD2 LPC address & data pin2 10 KEY No pin
11 LAD3 LPC address & data pin3 12 GND Ground
13 LFRAME# LPC Frame 14 GND Ground
I2C Bus Connector: J_SMBUS1
The mainboard provides one I2C (also known as I 2 C) Bus connector for users to
connect System Management Bus (SMBus) interface.
J_SMBUS1
1
PIN SIGNAL
1 SMB_ICH_ALERT#
2 SMB_ICH_CLK
3 SMB_ICH_DATA
Pin Definition
2
1
14
13
JTPM 1
