2-7
Hardware Setup
Empty
Installed
Memory
64x2=128 pin 56x2=112 pin
DDR2
240-pin, 1.8V
These DIMM slots are intended for system memory modules.

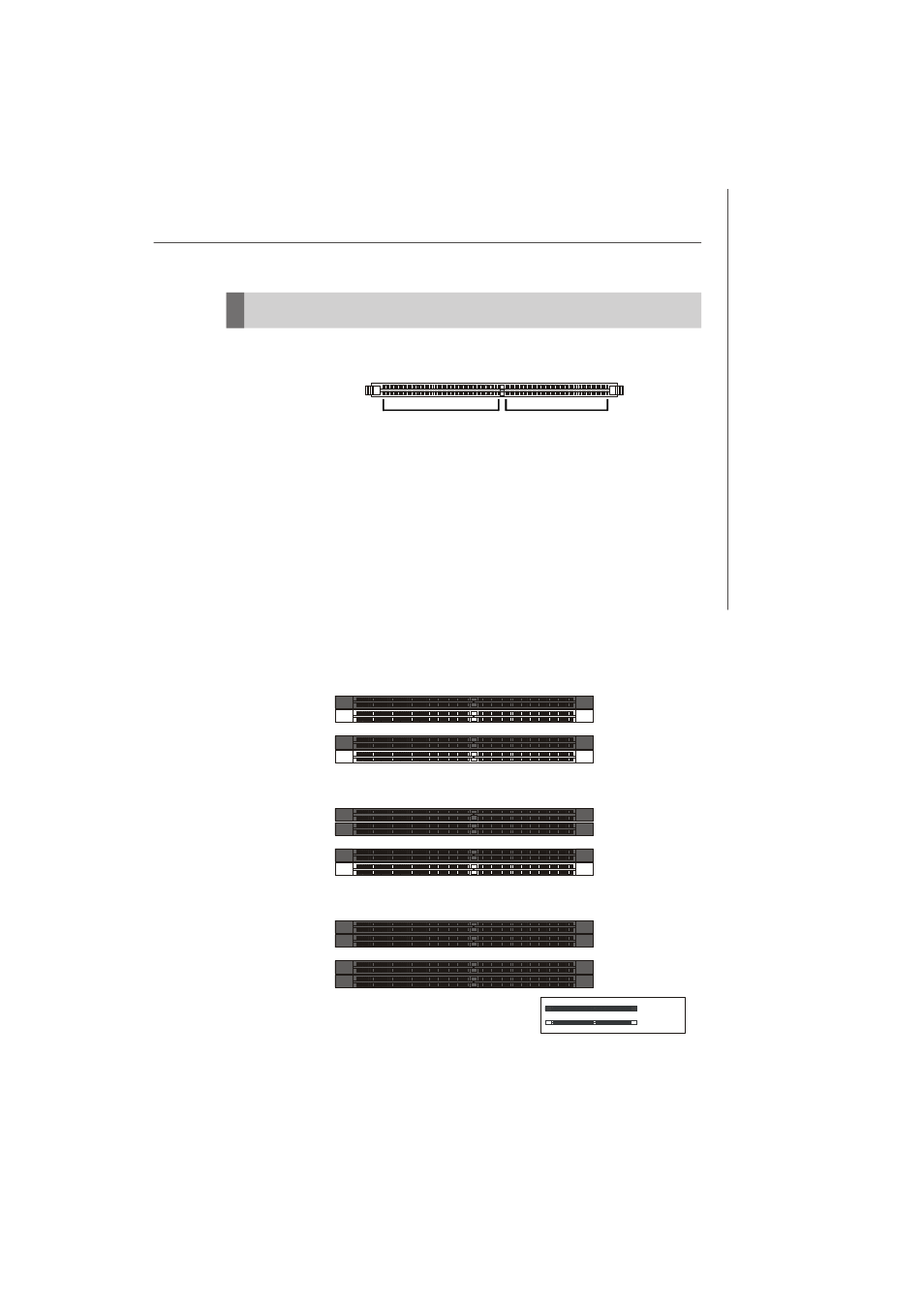

Dual-Channel Mode Population Rule
In Dual-Channel mode, the memory modules can transmit and receive data with two
data bus lines simultaneously. Dual-Channel mode is enabled when the installed
memory capacities of both DIMM channels are equal. If different speed DIMMs are
used between channels, the slowest memory timing will be used.
Dual-Channel mode can be achieved with two, three or four DIMMs. To achieve Dual-
Channel mode, the following conditions must be met:
* Matched DIMM configuration in each channel
* Same Density (128MB, 256MB, 512MB, etc.)
* Matched in both Channel A and Channel B memory channels
* Populate symmetrical memory slots (Slot 1 or Slot 2)
Configurations that do not match the above conditions will revert to Single-Channel
mode.
DIMM_A1
DIMM_A2
DIMM_B1
DIMM_B2
DIMM_A1
DIMM_A2
DIMM_B1
DIMM_B2
DIMM_A1
DIMM_A2
DIMM_B1
DIMM_B2
2 DIMM s
3 DIMM s
4 DIMM s
1GB
1GB
1GB
512MB
512MB
512MB
512MB
1GB
1GB
