MSI X99S MPOWER Overclocking Guide - Manual (Page 9)

9-
0
200
400
600
800
1000
1200
1400
1600
1800
2000

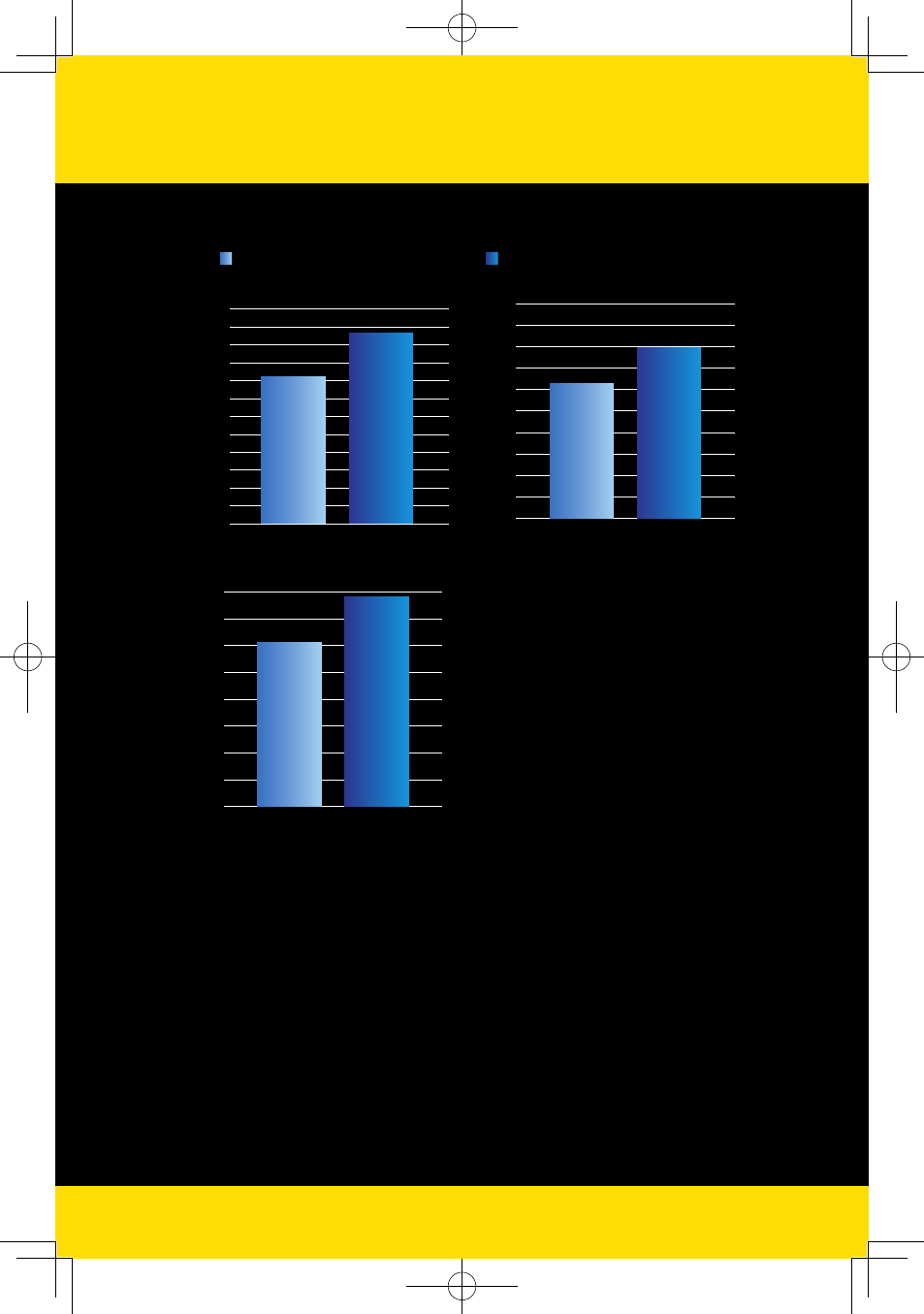

3DMark06
0
1000
2000
3000
4000
5000
6000
7000
8000
9000
10000
11000
12000
8227
10726
3DMark11
P1261
P1585
3DMark Vantage
0
1000
2000
3000
4000
5000
6000
7000
8000
P6123
P7872
IGPU SPEED OVERCLOCKING
GT Ratio 25x50 (1250MHz) GT Ratio 32x50 (1600MHz)
The built-in Intel HD Graphics 4600 display chipset, support DirectX 11, can improve 3D
graphics performance by adjusting the GT Ratio.
Take the K SKU CPU as an example, GPU frequency is 1250MHz (calculated as
25x50=1250), and the clock will be up by 50MHz when Ratio value added 1x. Along with
the performance increasing, GPU voltage also has to be increased a certain ratio to keep
the system stabilization.
Please note that when the GPU is overclocked, it is only effective when the loading
frequency of 3D Graphic is present.
Reference Setting ~ IGPU 1600MHz
Adjust GT Ratio : 32X
CPU GT Voltage : 1.2V
