2-16
Hardware Setup

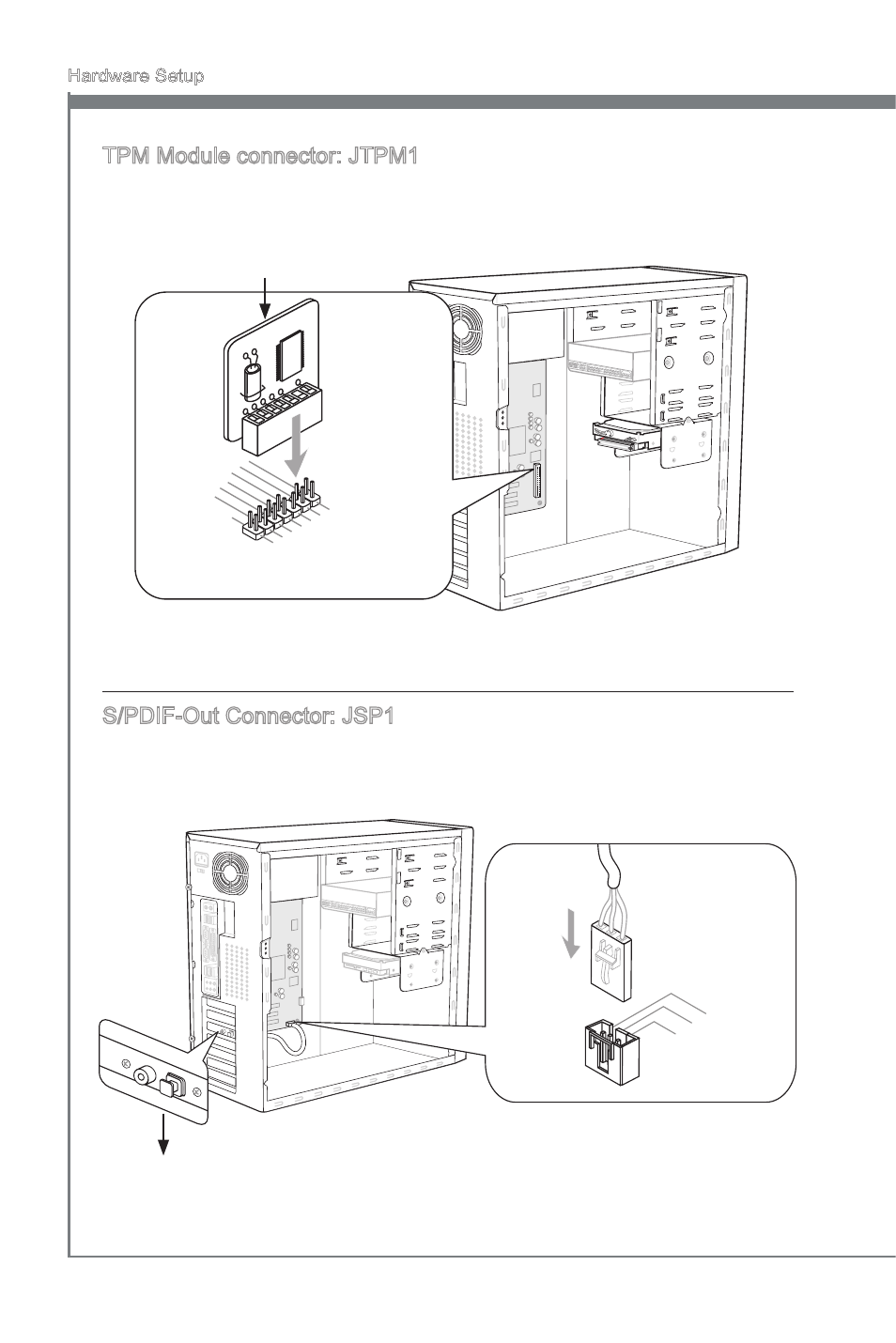

TPM Module connector: JTPM1
Ths connector connects to a TPM (Trusted Platform Module) module (optonal). Please
refer to the TPM securty platform manual for more detals and usages.
* The MB layout n ths figure s for reference only.
11 5 V
10.N
o Pin
14.G
roun
d
8.5V
Pow
er
12.G
roun
d
6.Se
rial IR
Q
4.3.3
V Po
wer
2.3V
Stan
dby p
ower
1.LP
C Clo
ck
3.LP
C Re
set
5.LP
C ad
dress
& dat
a pin
0
7.LP
C ad
dress
& dat
a pin
1
9.LP
C ad
dress
& dat
a pin
2
11.LP
C ad
dress
& dat
a pin
3
13.LP
C Fra
me
TPM module s optonal
S/PDIF-Out Connector: JSP1
Ths connector s used to connect S/PDIF (Sony & Phlps Dgtal Interconnect Format)
nterface for dgtal audo transmsson.
11 5 V
3.VC
C
2.SP
DIF
1.Gro
und
* The MB layout n ths figure s for reference only.
S/PDIF-Out Bracket (optonal)
