3-18
BIOS Setup MS-7676
Chapter 3
BIOS Setup MS-7676
Chapter 3

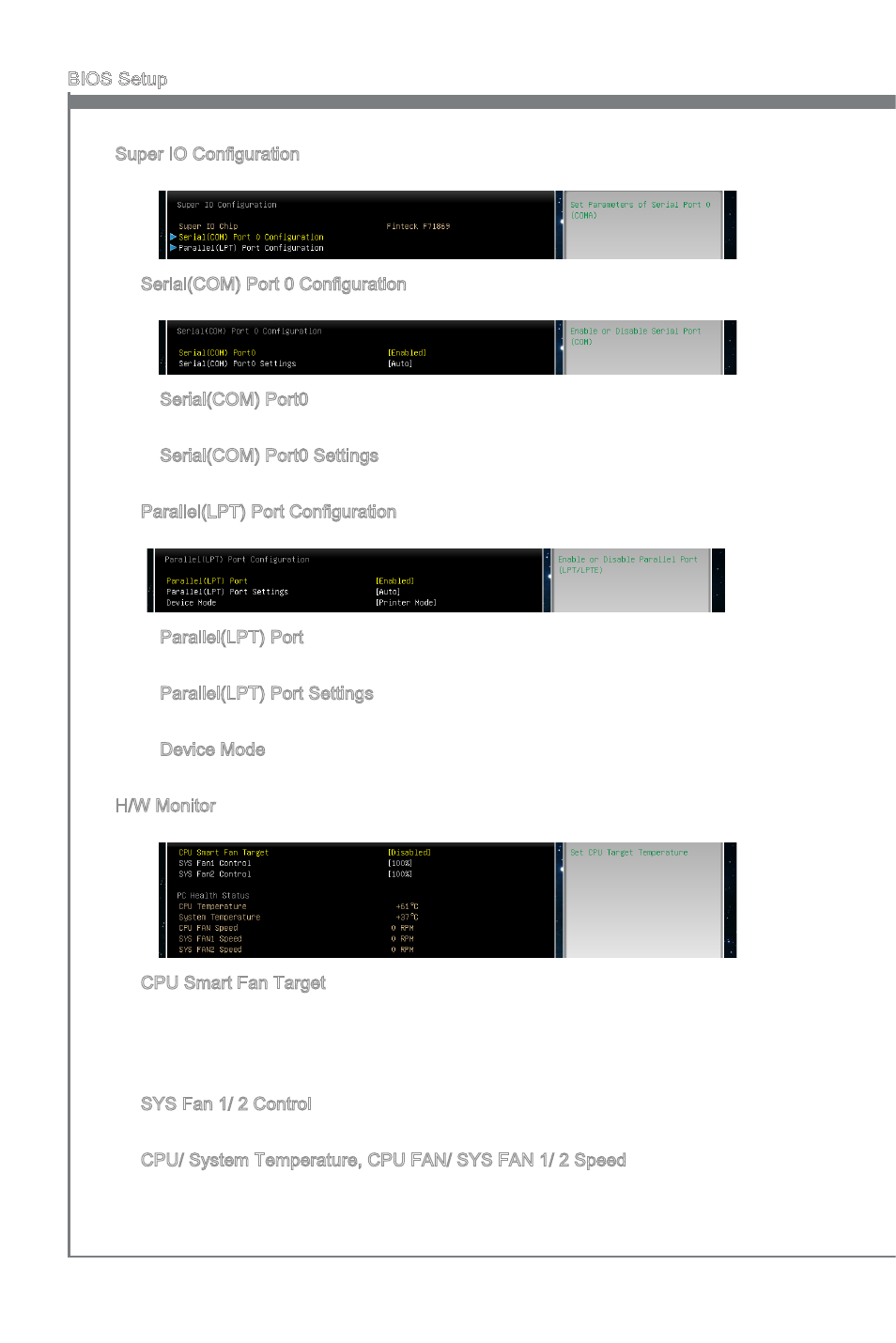

Super IO Configuraton
Press to enter the sub-menu.
Seral(COM) Port 0 Configuraton
Press to enter the sub-menu.
Seral(COM) Port0
Ths tem allows you to enable/ dsable the seral port.
Seral(COM) Port0 Settngs
Select an address and correspondng nterrupt for the seral port.
Parallel(LPT) Port Configuraton
Press to enter the sub-menu.
Parallel(LPT) Port
Ths tem allows you to enable/ dsable the parallel port.
Parallel(LPT) Port Settngs
Select an address and correspondng nterrupt for the parallel port.
Devce Mode
Ths tem allows you to select the parallel devce mode.
H/W Montor
Press to enter the sub-menu.
CPU Smart Fan Target
The Smart Fan functon controls the CPU fan speed automatcally dependng on the
current temperature to keep t wth n a specfic range. You can enable a fan target
value here. If the current CPU fan temperature reaches to the target value, the smart
fan functon wll be actvated.
SYS Fan 1/ 2 Control
These tems allow users to select how percentage of speed for the SYSFAN1/ 2.
CPU/ System Temperature, CPU FAN/ SYS FAN 1/ 2 Speed
These tems show the current status of all of the montored hardware devces/com-
ponents such as CPU voltage, temperatures and all fans’ speeds.
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
