Step 8
34
Installation Procedures

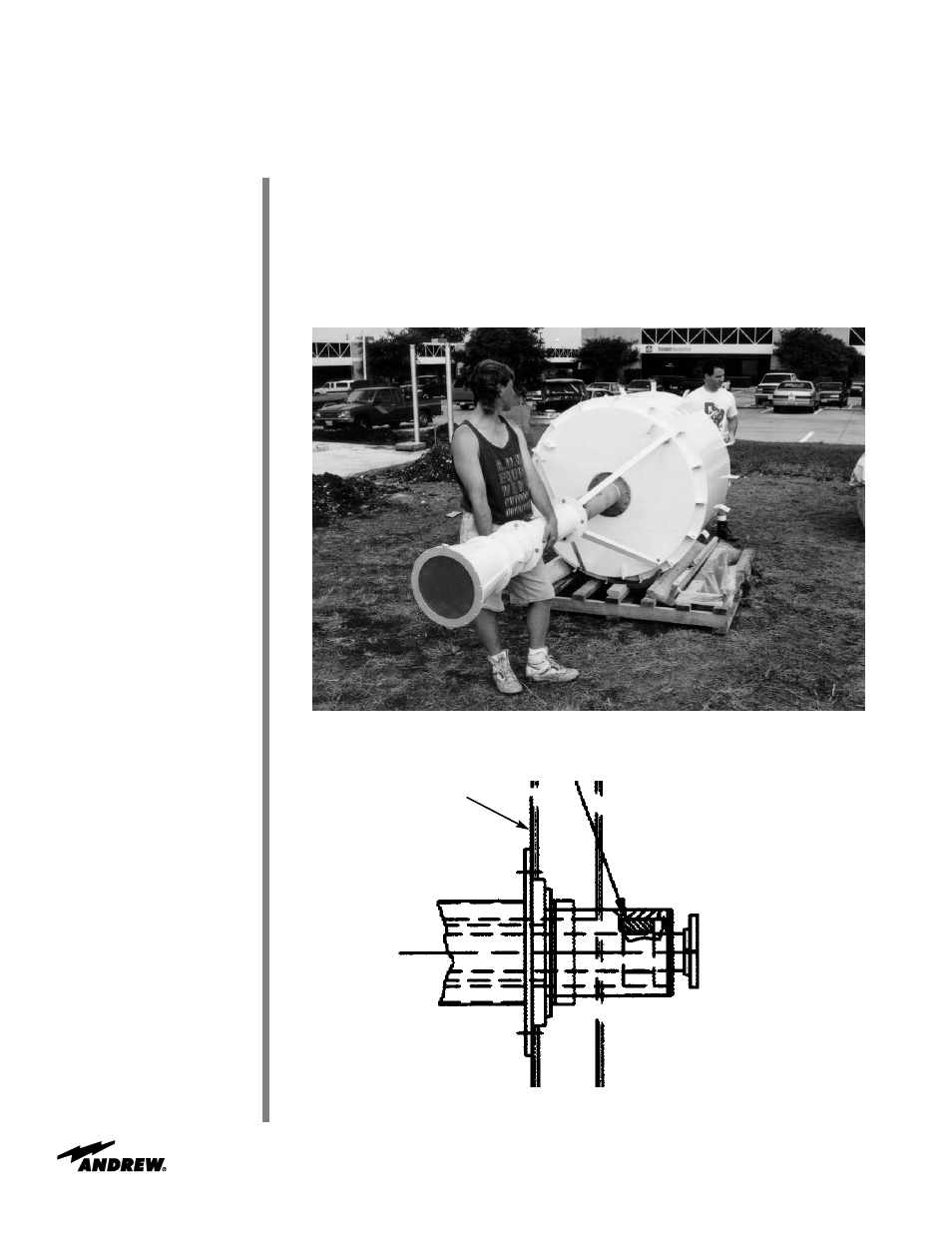

Install circular waveguide assembly through 77639 rotating tube assembly and attach
feed horn/mounting pipe assembly to rotating tube as shown in Figure 41A. Install
201065A circular waveguide support assembly as shown in Figure 41B.
•
Use 1/2 x 2 in (51 mm) bolts, lockwashers and nuts
•
Insert bolts from mounting pipe to rotating tube
Figure 41A
201065A
Waveguide Support
Figure 41B
Equipment
Enclosure
