Andrew 7.3-METER EARTH STATION ANTENNA ES73 User Manual
Page 27
Step 5
Step 6
27
Installation Procedures
Figure 32B
Apply RTV to flange surfaces and attach 221384 azimuth pivot assembly to 201327A
joint assembly with 7/8 x 2-1/4 hardware from pivot assembly to joint assembly as
shown in Figure 32C. Note: Use one 7/8 by 2-3/4 inch (70 mm) bolt, flat washer and nut
for later attachment of grounding cable.
Figure 32C
Figure 32A

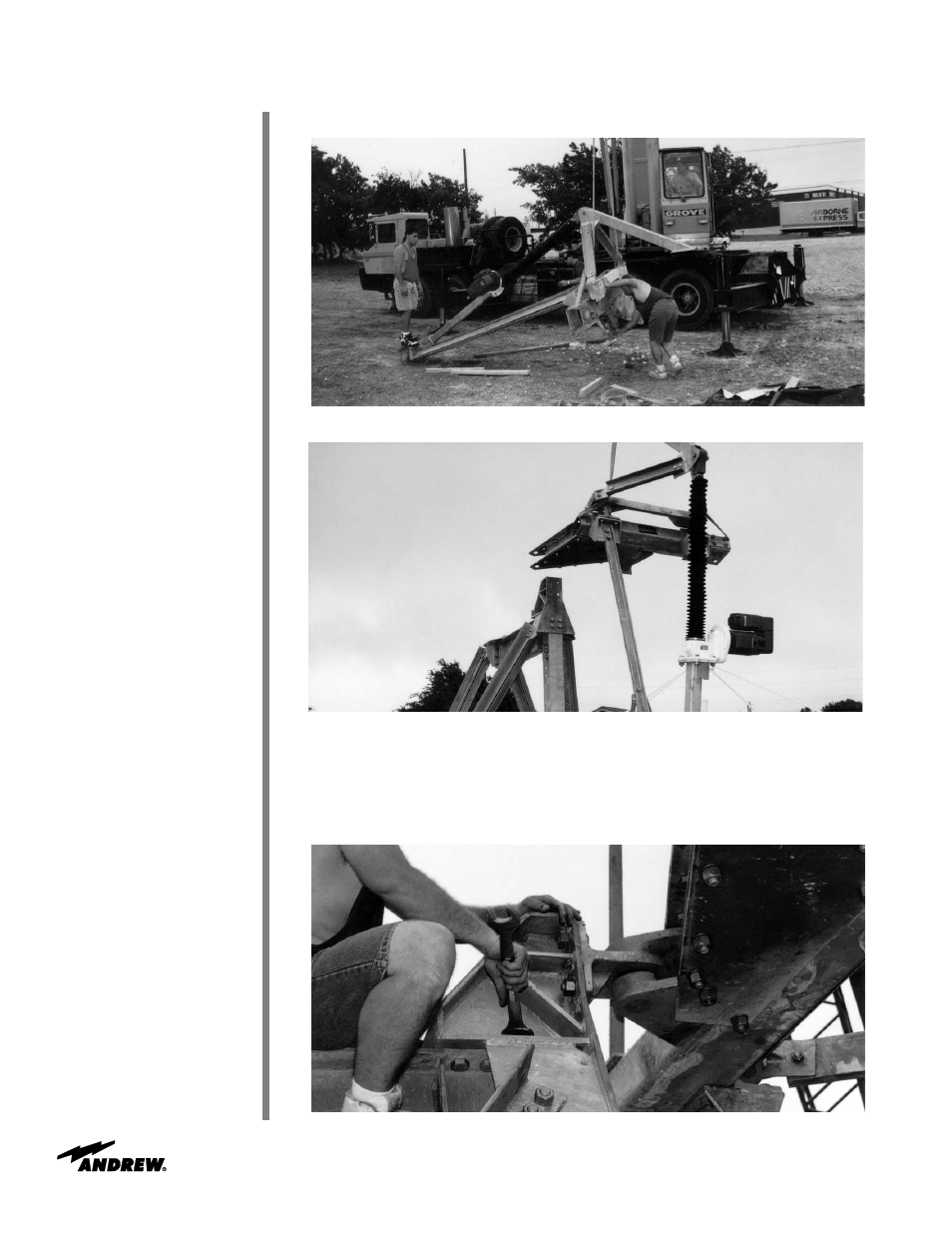

Hoist elevation jackscrew/panning frame assembly to mount as shown in Figures 32A/32B.
