Andrew 7.3-METER EARTH STATION ANTENNA ES73 User Manual
Page 14
Step 3
Step 4
14

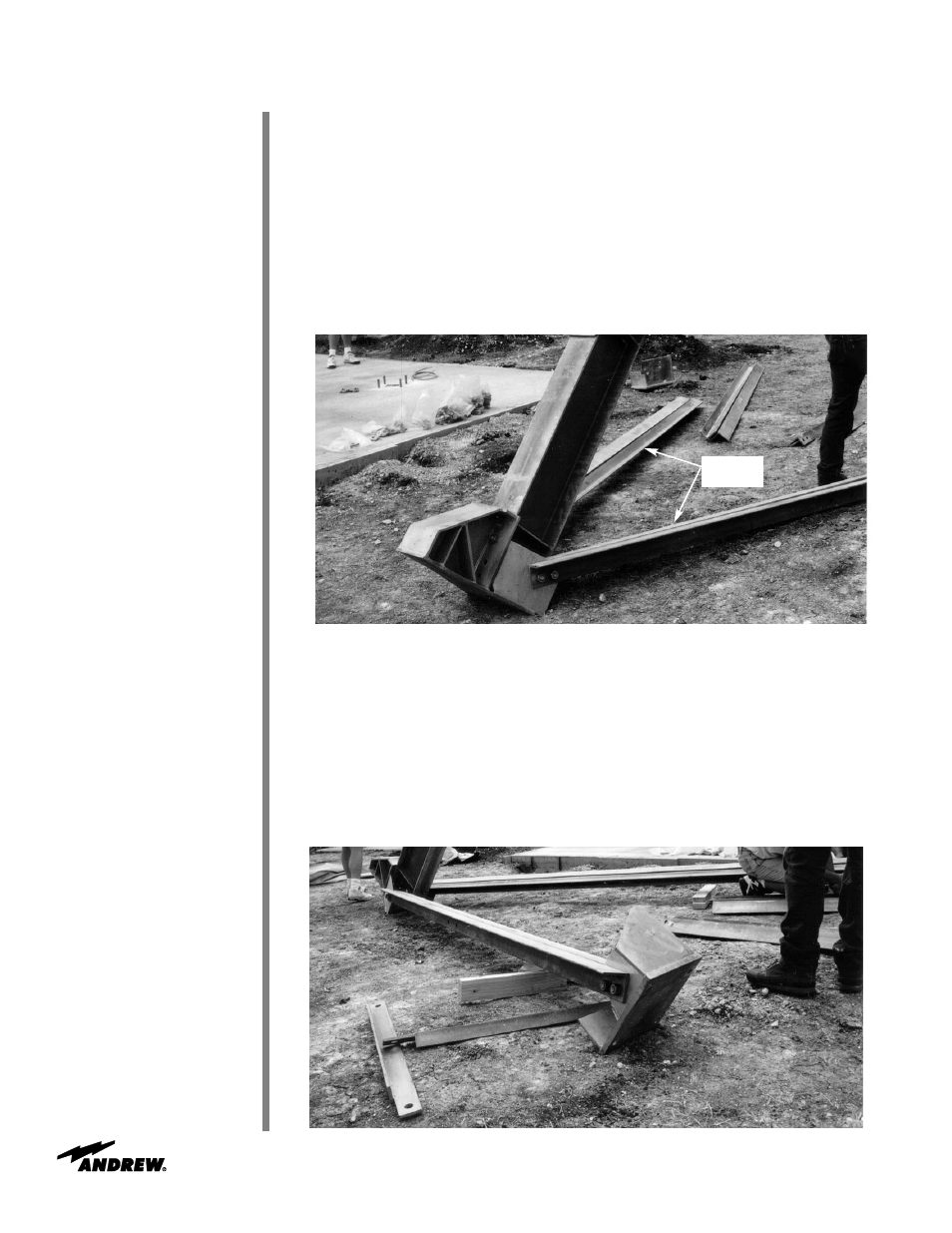

Raise 201313A beam assembly to upright position and attach 201315 supports to
201327A joint assembly as shown in Figure 7.
•
Use 7/8 x 2-1/4 in (57 mm) bolts and nuts
•
Insert bolts from 201327A joint assembly to supports
•
Supports should be installed back-to-back with the flat of angle facing upwards
•
Tighten supports until assembly can support itself
Installation Procedures
Figure 7
Attach 201301/201302 rear pad assembly to 201315 supports as shown in Figures 8 thru 10.
•
Use 7/8 x 2-1/4 in (57 mm) bolts and nuts
•
Insert bolt from inside of rear pad assembly to outside of support
•
Supports should be installed back-to-back with the edges forward and the flats of
angles facing rear
Figure 8
201315
Supports
