MULTITASKER™
400-0095-005 8
8

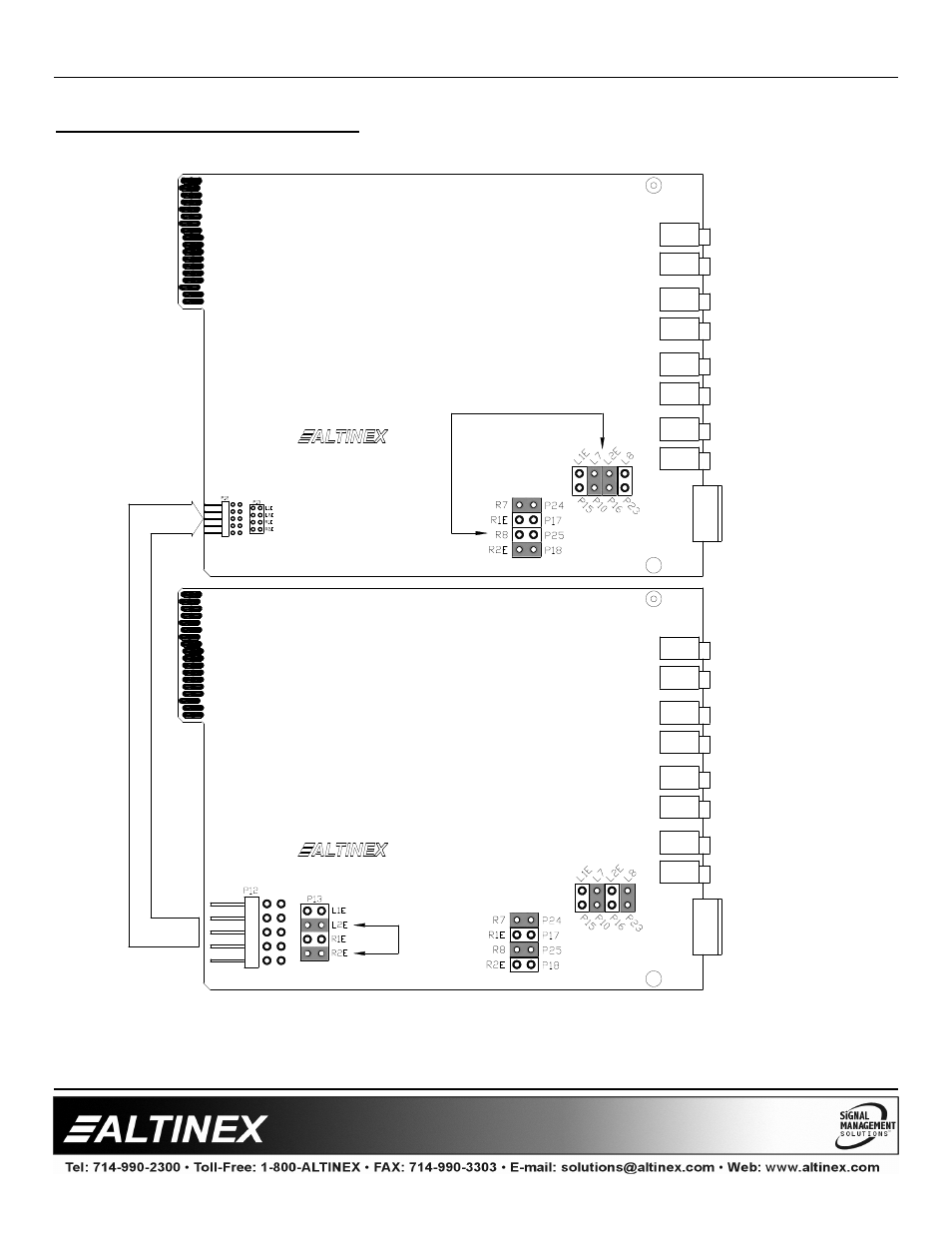

DIAGRAM 4: 15 IN, 1 OUT SWITCHER
INPUT 1
INPUT 2
INPUT 3
INPUT 4
INPUT 5
INPUT 6
INPUT 7
INPUT 8
INPUT 9
INPUT 10
INPUT 11
INPUT 12
INPUT 13
INPUT 14
INPUT 15
LOCAL OUTPUT
FOR
INPUTS 8-15
MAIN OUTPUT
INPUTS 1-15
FOR
Jumpers are set to Port 8.
NOT USED
MT109-100 as a Master Card:
7 External Inputs + 1 Internal Input
8 Internal Input
MT109-100 as an Expansion Card:
to Port 8.
NOTE: Port 8 of the Master
is being used as the internal input.
10-PIN IDC CABLE
Jumpers are set
