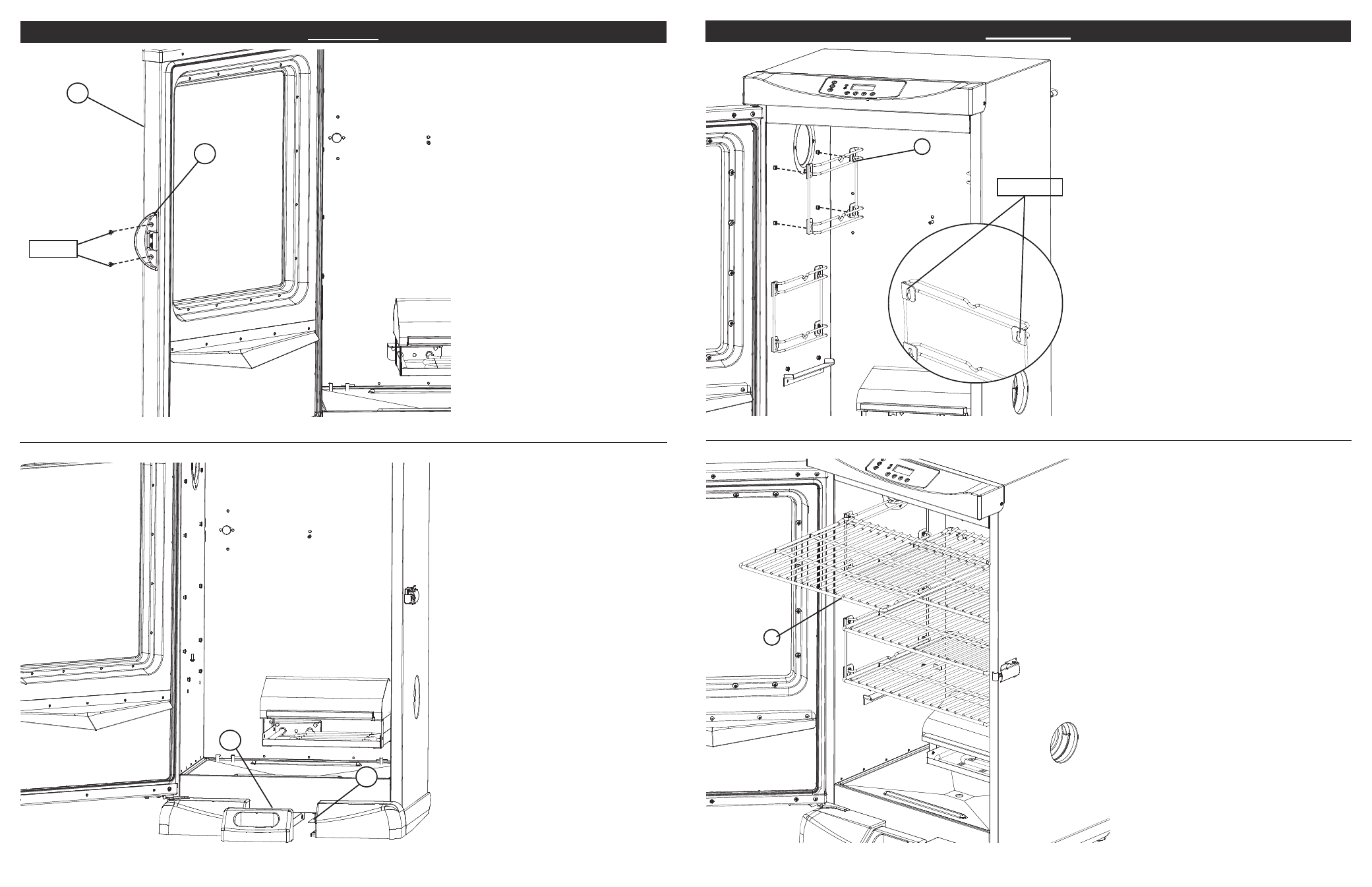

ARMADO
PASO 7
Coloque la manilla de la puerta (20)
sobre la puerta con ventanilla (19)
como se ilustra. Fíjela con ST4x10
tornillo de cabeza plana.
PASO 8
Deslice la bandeja para la grasa (13)
sobre las piezas de apoyo de la
bandeja para la grasa (22).
20
19
13
22
ST4x10
10
ASSEMBLY
STEP 9
Align keyholes on grate supports
(6) with studs on the inside of
smoker body as shown. Press
grate support down to secure in
place.
Repeat step for remaining grate
supports on both sides.
STEP 10
Place smoking racks (4) inside
smoker as shown.
6
4
KEYHOLES
