Hogtunes REV 200RG KIT-AA : RoadGlide Amp / Speaker Kit (1998 - 2013 - model years) - Manual (Page 9)

9
systeM upgrade #3
This system uses an NCA 450-AA (200 watt 4 channel amplifier) as well as our
REV 200-AA (200 watt 2 channel amplifier) for the Ultimate in real power! As
shown below, a typical system would have the 4 channel amp power the fronts
(and tweeter pod if present) and rears. The bypass out of the 4 channel sends
music to the REV 200-AA which then powers 6”x9” saddlebag speaker lids or
7” fairing lower woofers. If you don’t have a tour pak you can also do a similar
system with fronts speakers and tweeter pod, fairing lower woofers and 6”x9”
saddlebag lids! The beauty of either system is that it can all be done in stages.
It is 100% bolt in and 100% plug and play.

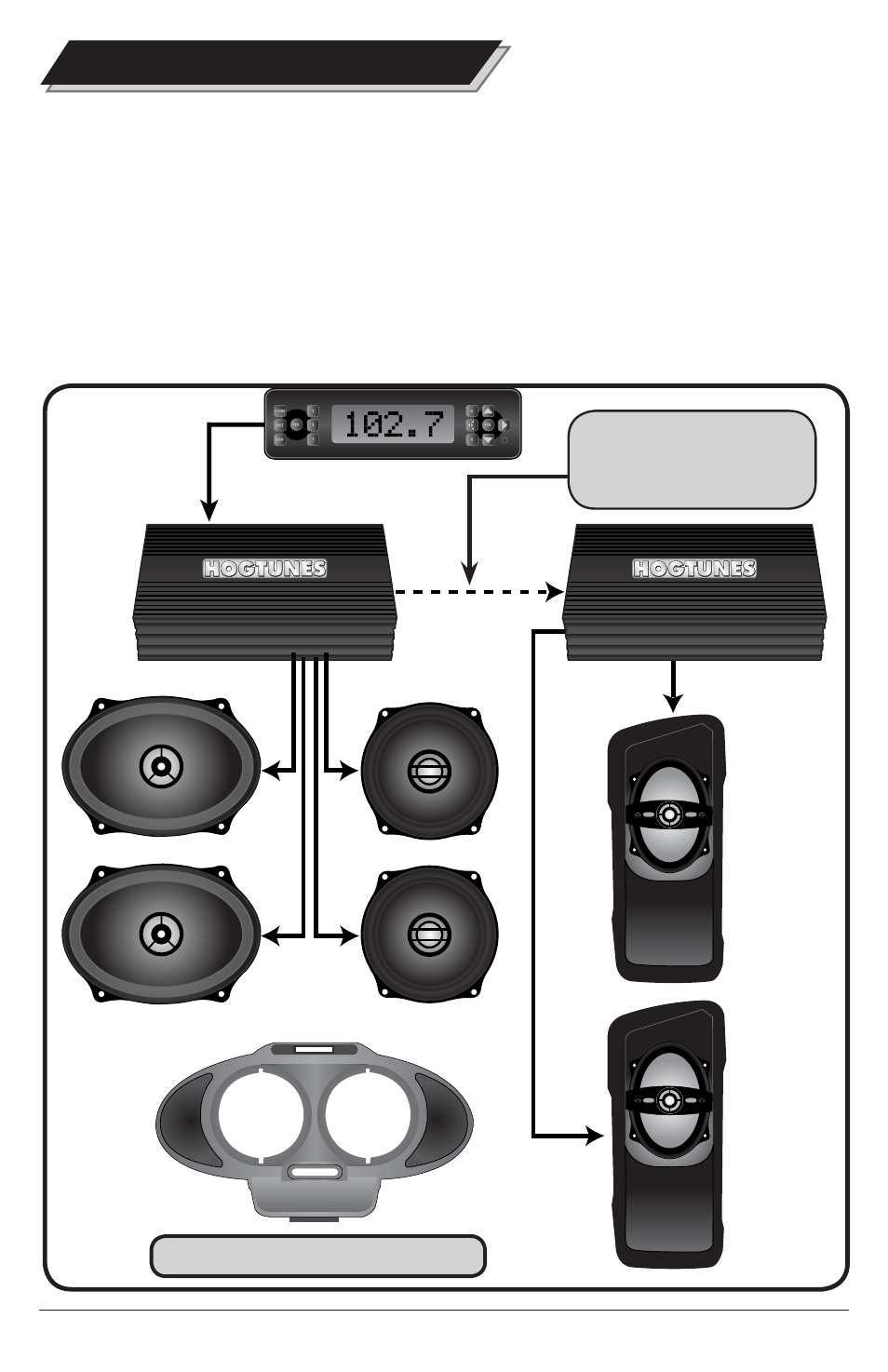

Use supplied blue plug to
send signal from expansion
port of first amp to input
of second amp
Optional HF-2 Tweeter Pod
