6

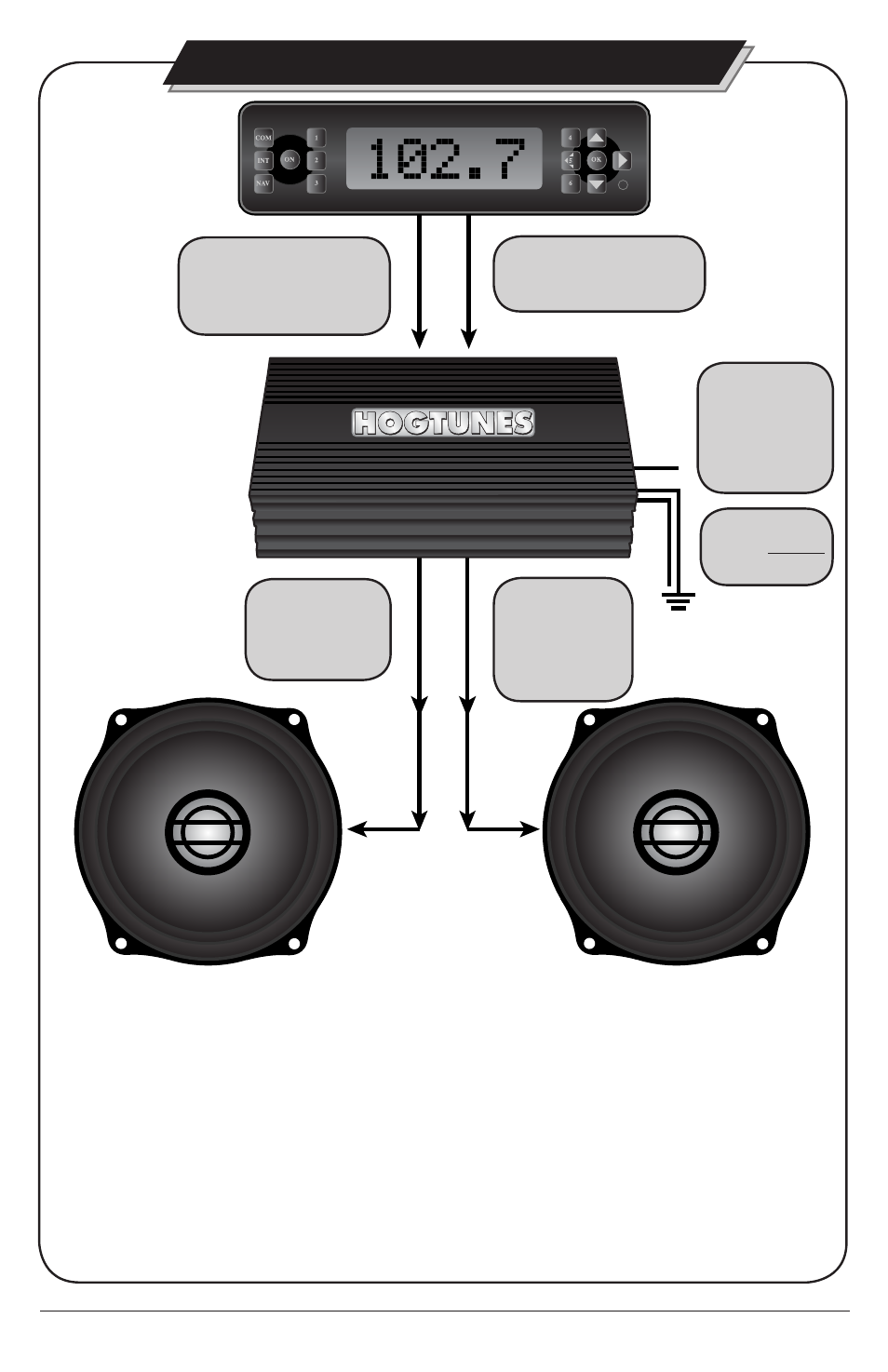

aMplifier Wiring diagraM
Green/Black from amp
plugs into BRAKE SIDE
factory speaker wires
Brown/Black
wires from amp
plug into Clutch
side speaker
Blue/Black
wires from
amp plug into
Brake side
speaker
Yellow/black from
amp plugs into
CLUTCH SIDE factory
speaker wires
Orange wire
goes
to center pin
(+) on
cigarette lighter
Power and
ground DIRECT
to battery
AmPLIFIER WIRE COLOR CODES
Yellow/Black: Clutch Side Amplifier Input From Factory Radio
Brown/Black: Clutch Side Radio Output to Front Speaker
Green/Black: Brake Side Amplifier Input From Factory Radio
Blue/Black: Brake Side Radio Output to Front Speaker
Orange: Remote Turn On Lead
Red: 12v Positive--Attaches Directly to “+” Battery Post
Black: 12v Negative--Attaches Directly to “-” Battery Post
