Appendix C Pin Assignments

89

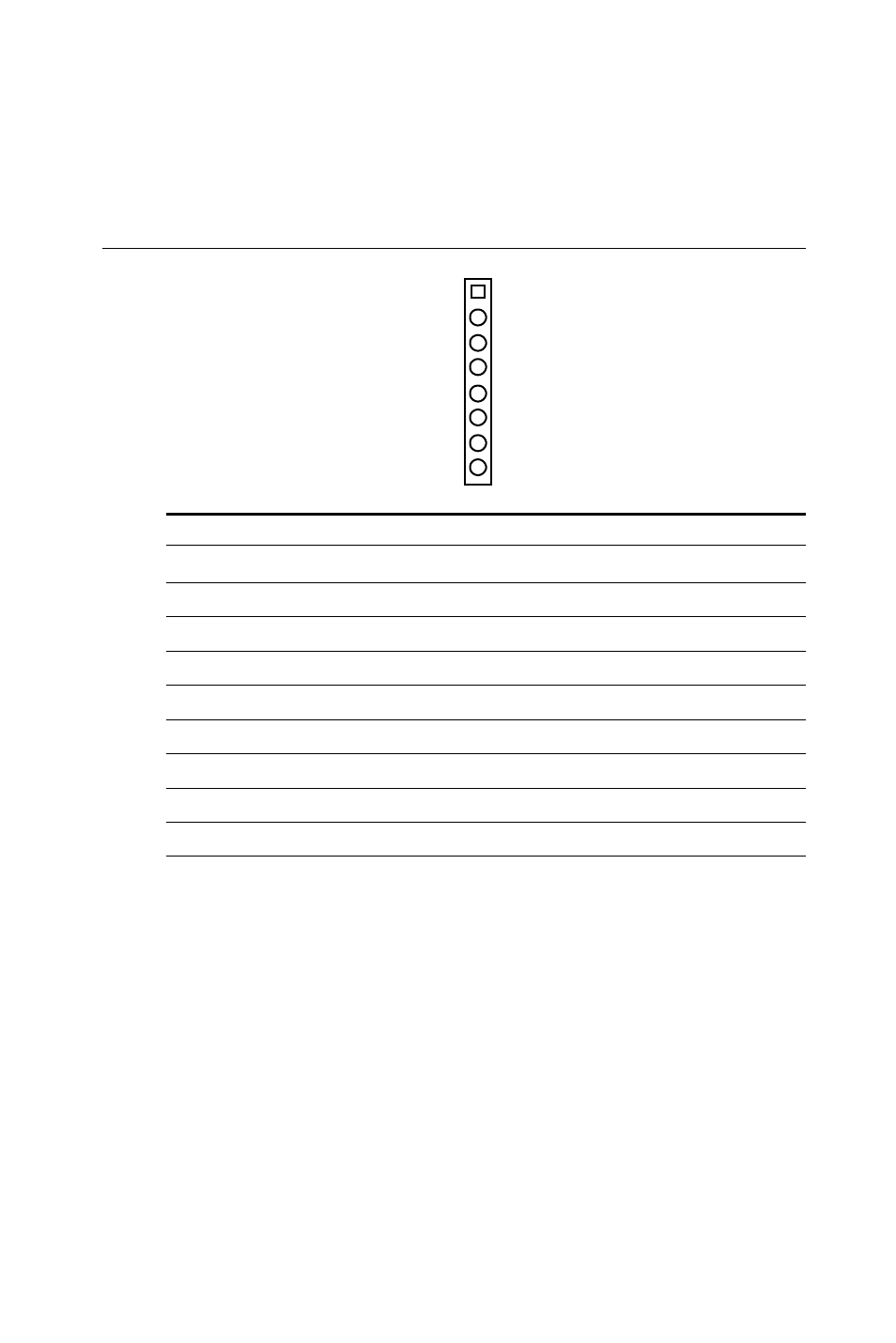

C.4 Keyboard and PS/2 mouse connector

(CN5)

Table C-4: Keyboard and mouse connector (CN5)

Pin

Signal

1

GND

2

MS VCC

3

MS DATA

4

MS CLOCK

5

GND

6

KB VCC

7

KB DATA

8

KB CLOCK

8

1
