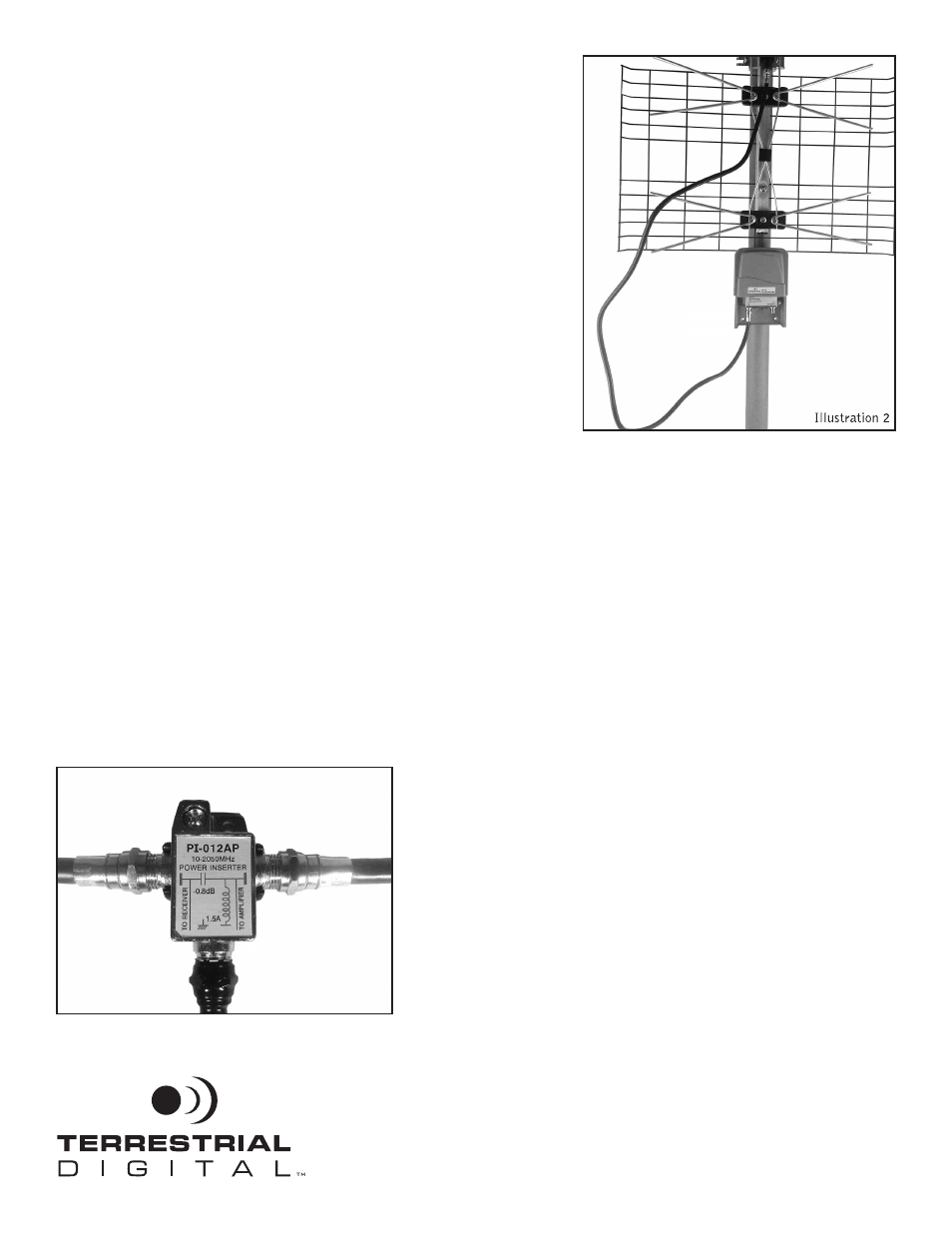

2.) Connect the supplied 3’ cable to your antenna’s transformer as
shown at the top of illustration 2. (Your antenna may look
different, but the cable connection will be the same.) Connect the
other end of the 3’ cable to the amplifier unit from the kit using
the “In” port as shown at the bottom of Illustration 2.
3.) Strap the amplifier to the antenna mast (or to an adjacent wall
in attic installations) using the supplied cable tie.
4.) Previous Installation: Attach the down-lead cable that was
attached to the antenna’s transformer to the “Out” port of the
amplifier. You’re finished!
For New installation Continue:
Install your down-lead (not supplied) cable which leads to your TV,
TV/Digital receiver or set-top box. Connect the down-lead from the
amplifier to the RIGHT SIDE port of the power inserter. See illustration 3 below: “To Amplifier”. Do not reverse the
connection!!
5.) Using the second supplied 3’ cable, connect the left port labeled ‘To Receiver” on the power inserter
(illustration 3) to your TV, AV receiver or set-top box. Do not reverse the connection!!
6.) Connect the 12v power supply’s screw-on f-connector to the bottom connection of the power
inserter (illustration 3)
7.) Insert the wall plug into any 110 volt AC power source (wall outlet or power strip) close to the TV and ensure
that the 110v wall outlet is live – not switched off.
877-825-5572
1699 West Fifth Street
Eureka, MO 63025
www.terrestrial-digital.com
Important: The power inserter sends power UP your down-
lead to drive the amplifier mounted on or near your antenna.
The power inserter can be located anywhere in your house, but
is usually near your TV. The down-lead also brings the digital
antenna signal into your house and the signal passes through the
PI-012AP to your TV/Digital Receiver. This eliminates any need
for a 110VAC wall power source close to your antenna.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE POWER SUPPLY TO RAIN OR MOISTURE
Illustration 3
To Receiver To Amplifier
