Installing the hood between cupboards with
hanging rails
• Remove the grid. Fig. 6.
• Take off the visor G. Fig. 13.

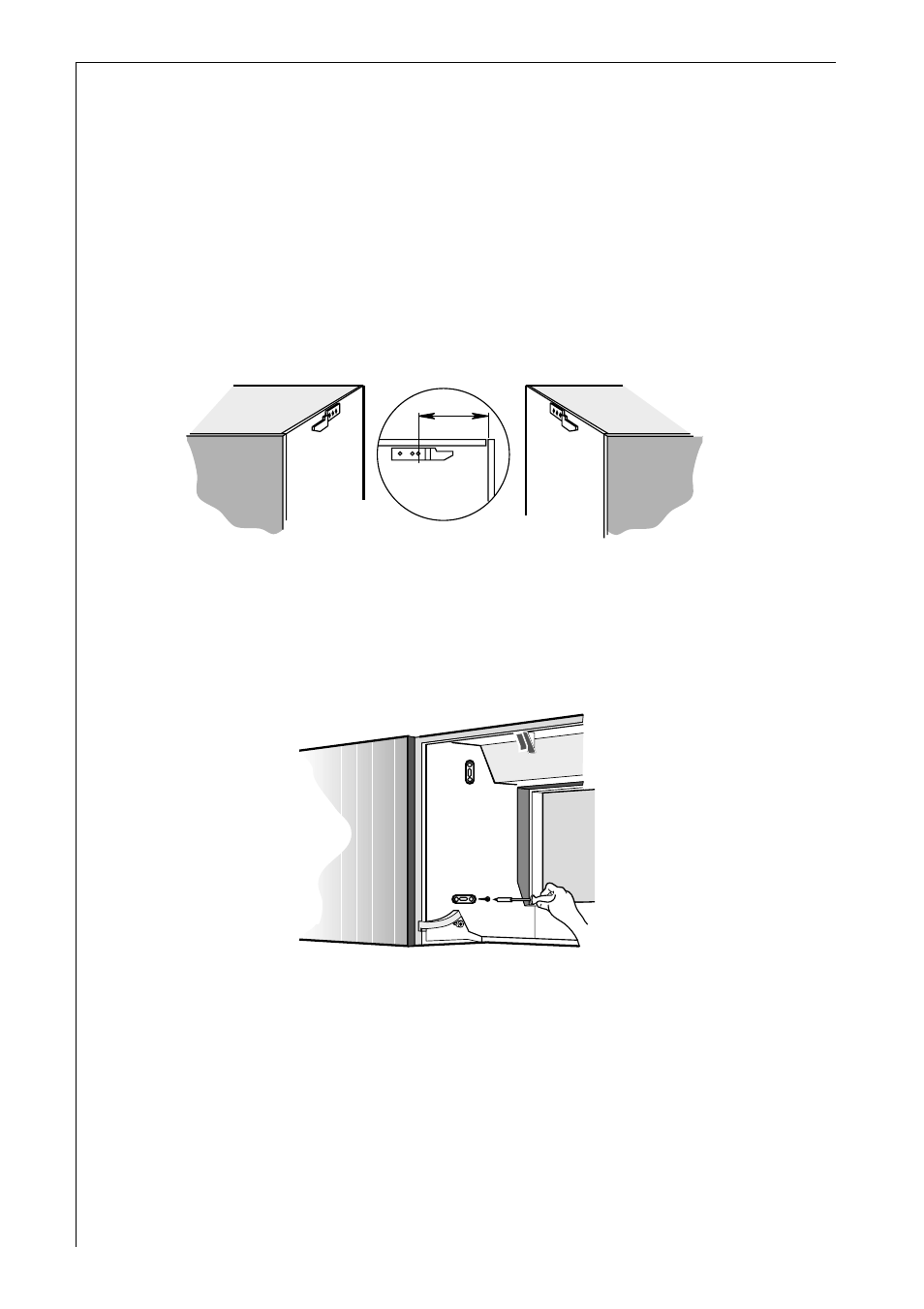

• Mount the two hanging rails directly underneath the edge of
the cupboard using three screws 4,5 x 16 mm in each rail.
Distance from first hole to front edge of the cupboards sides
must be 153 mm. Fig. 8.
• Push the extractor hood over the two hanging rails, then fix the hood
from its inside to the cupboards sides with two screws (4,5 x 13)
through the lower holes of the hood. Fig. 9.
• Refit the visor. Fig. 13.
• Refit the grid.
• Fit the spacer M on the hood with two screws O and washers,
ensure that there is not a gap between the back of the hood and the
wall by adjusting the spacer M tightly to the wall, using the screws
O. Fig. 11.
153
Fig. 8
Fig. 9
