WIKA operating instructions air2guide model A2G-45

40389228.01 09/2012 GB/D/F/E/I

Key

Function

To access the menu, press the "MENU" button for approx. 3

seconds.

To exit the menu, press the "BACK" button.

To open an individual menu point, and to accept the changes,

press the "OK" button.

These buttons enable you to scroll within the menu.

6. Commissioning, operation

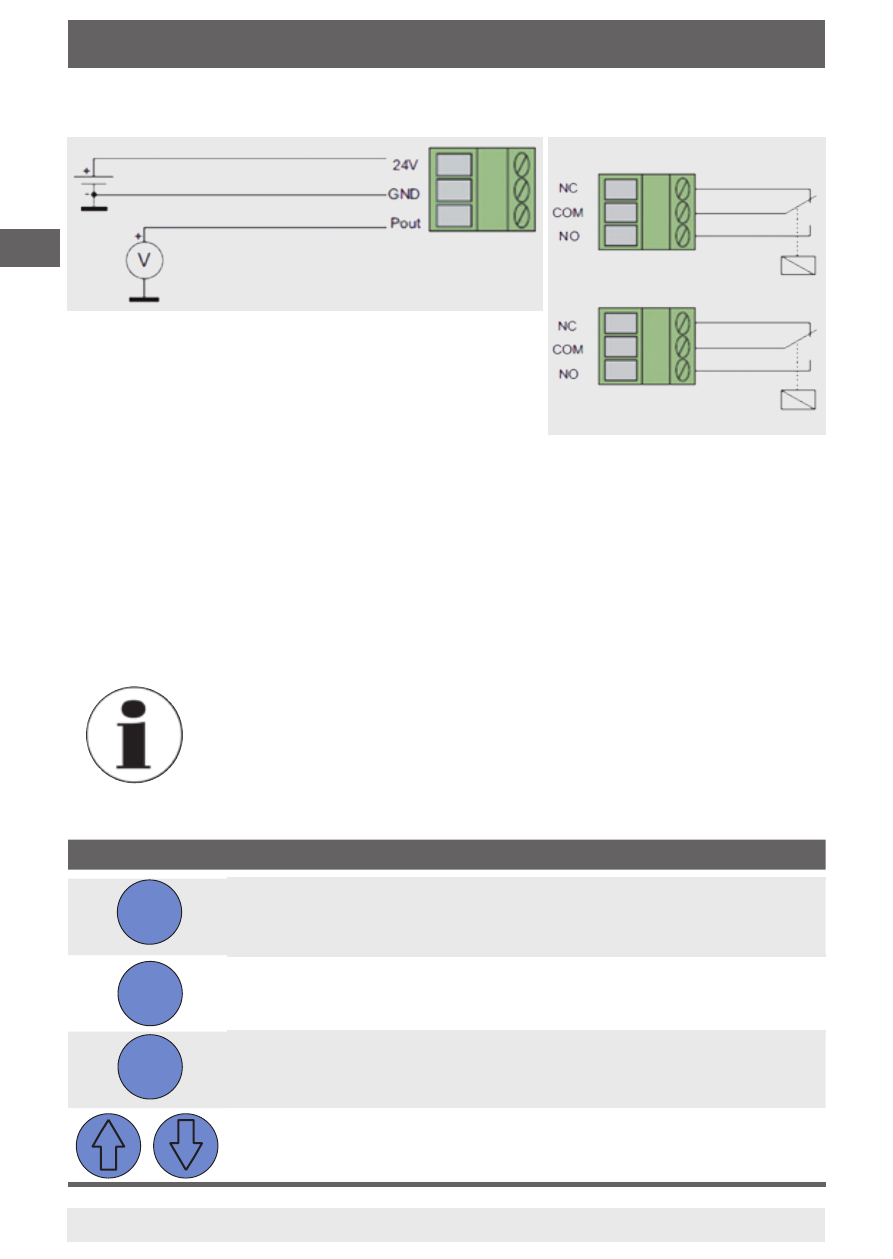

Connection diagram

Output signal 0 ... 10 V

Power supply AC 24 V

Relay 1 (standard)

Relay 2 (option)

If the voltages being switched via the relays

are not in accordance with SELV, then the

power supply and signal/control cables of

the relays should be installed so that they

are separated. A separate cable entry is

available for both.

Commissioning
A prerequisite for the commissioning is a proper installation of all

electrical supply, control and measuring lines and of the pressure

connection lines.

■

Before commissioning, the leak tightness of the pressure

connection lines must be checked.

Buttons for setting the individual functions

BACK
