INSTRUCTION MANUAL
NI-290E
Rev. 0 01/05
ETTORE CELLA SPA Viale de Gasperi, 48 - Casella Postale (P.O. Box) 96 - I 20010 Bareggio (MILANO) ITALY
Telefoni +39 029036.1146/7 - 029036.1237/41 - FAX +39 029036.1331 Email: [email protected]
WEATHERPROOF OR EXPLOSIONPROOF

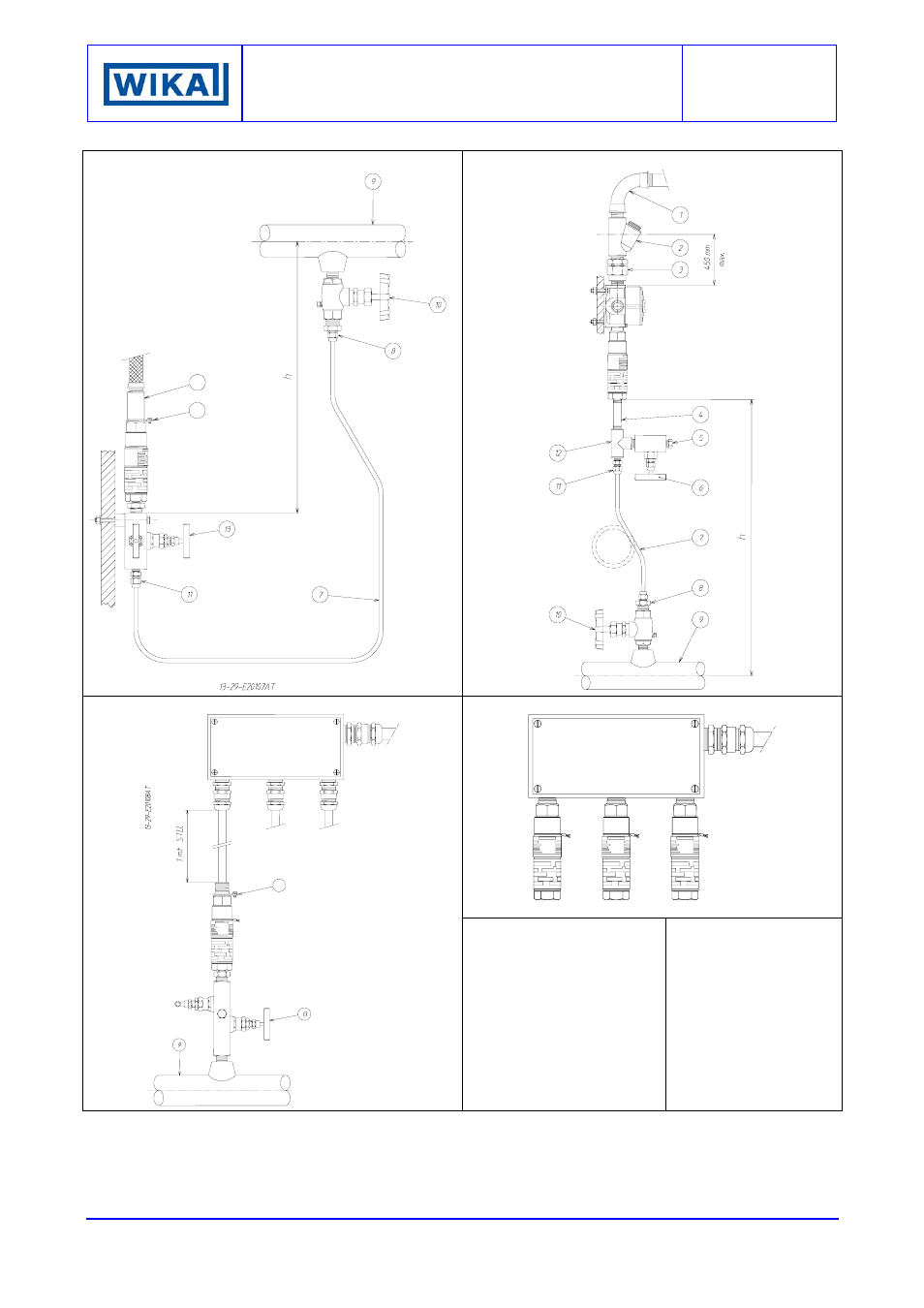

Fig. 9. Example of surface mounting Fig. 10. Example of surface mounting
15
14
Fig. 11. Example of direct mounting Fig. 12. Example of mounting
14
1 – Elbow fitting
2 – Blocking joint
3 – Three-piece joint
4 – Adaptor
5 – Drain plug
6 – Service valve
7 – Tubing
8 – Three-piece joint
9 – Process piping
10 – Root valve with drain
11 – Three-piece joint
12 – Tee fitting
13 – Manifold
14 – Ground ring
15 – Sleeve
