18 WIKA operating instructions digital pressure gauge, model DG-10
11250313.03 09/2012 GB/D/F/E
GB

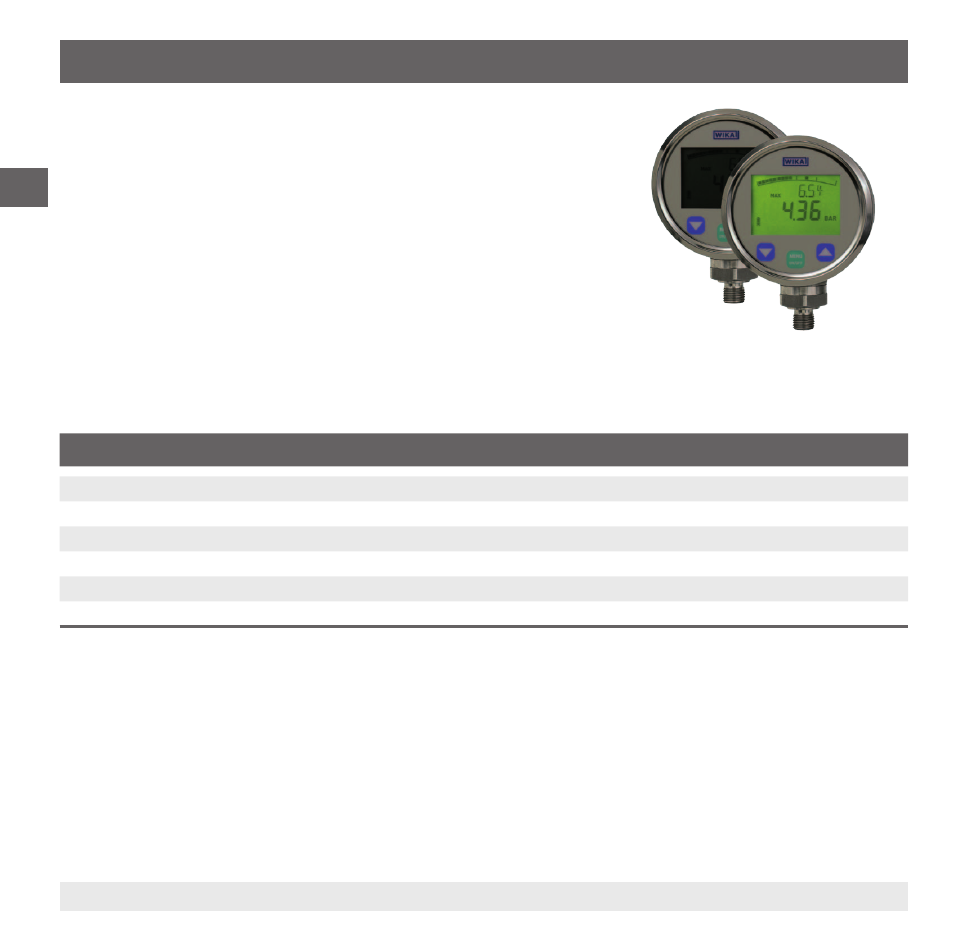

Backlighting (model DG-10-E)
The model DG-10-E features backlighting so that the display can
be easily read, even under poor lighting conditions.
After pressing any key, the display will light up for 7 seconds.
The backlighting can be switched on and off via the menu item
"LIGH", see chapter 6.4 "Menu navigation in the programming
mode, model DG-10-E".
6. Commissioning, operation
6.4 Keys and functions
Bargraph display with drag pointer function
The additional integrated bargraph with drag-pointer function within the display indicates the trend of
the current pressure directly, independently from the digital indicator. Using the drag-pointer function,
the max. memory value is also displayed in the bargraph display in the form of a bar segment, as well
as in the digital indicator. On resetting the MIN/MAX value, this bargraph is then updated to the current
measured value.
Function Model DG-10-S Model DG-10-E
MIN/MAX memory yes yes
Automatic power-off no 15, 30, 60, 120 minutes
Tare function no yes
Unit change bar, psi, MPa bar, psi, MPa
Password protection no yes
Reset to factory settings no yes
