17 WIKA operating instructions digital pressure gauge, model DG-10
11250313.03 09/2012 GB/D/F/E
GB
6. Commissioning, operation
6.3 Description of the digital indicator
Model DG-10-S Model DG-10-E
Type of indication 7-Segment LCD 7-segment LCD
14-segment LCD (2. Display)
■ Digits 4-digit 4 ½-digit
■ Character size 11 mm 11 mm and 7 mm
■ Indication range -1999 ... 9999 -1999 ... 19999
■ Update 200 ms 200 ms
■ Backlighting no yes
■ Bargraph with drag pointer function yes yes
■ Rotatability no 300°
Max. value
Min. value
Main display
Battery status
Bargraph display
Full scale
Unit
Special functions Tare activated

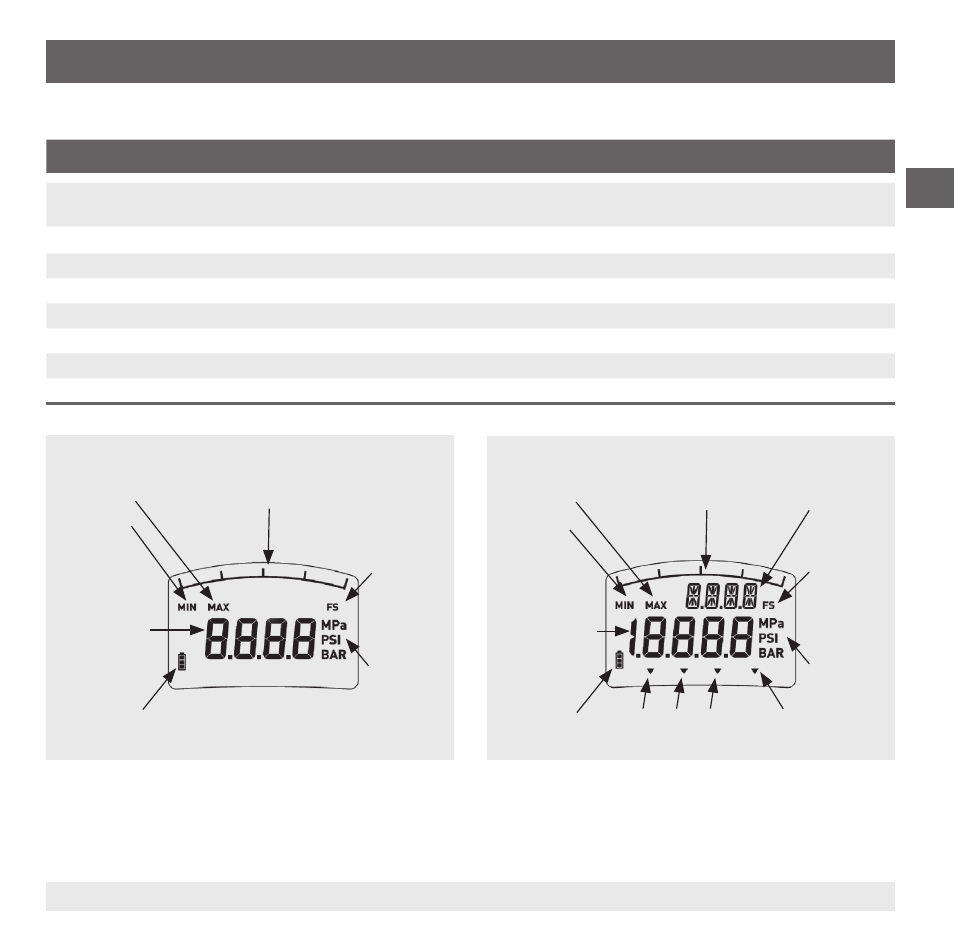

2. Display
Model DG-10-S Model DG-10-E
Max. value
Min. value Bargraph display
Full scale
Unit
Battery status
Main display
